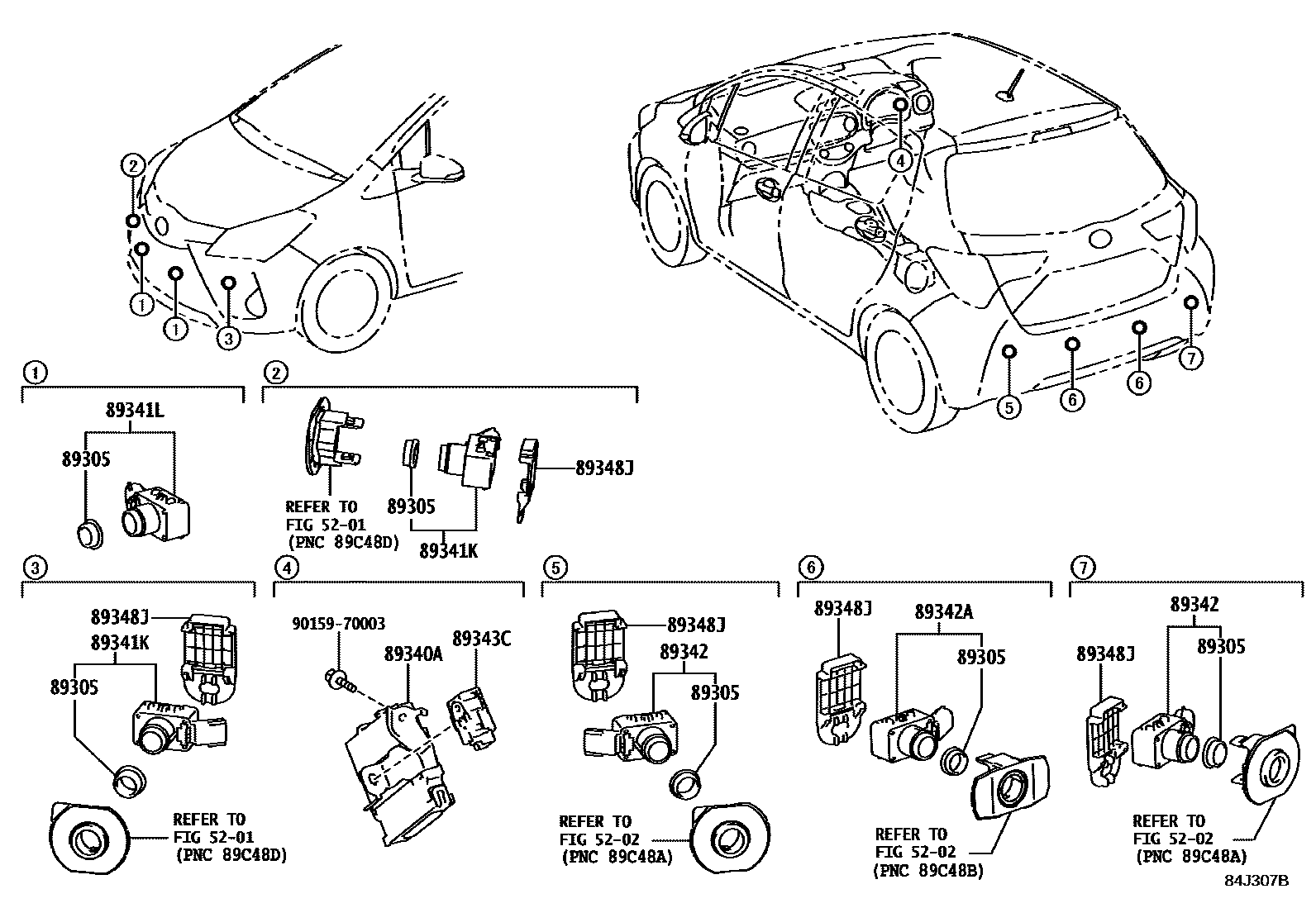

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010iNHP130,NSP13#..(F,JEWL,U)..CBU201806

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-52050iNHP130,NSP13#..(F,JEWL,U)..CBU201806-202001

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-33220-A0×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-A5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-B0×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-C7×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-D4×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-D7×2iNHP130,NSP13#..F..CBU201901

main89341-33220-E5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806-201910

main89341-33220-E7×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-F4×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-G2×2iNHP130,NSP13#..JEWL201806-201910

main89341-33220-G8×2iNHP130,NSP13#..JEWL201806

main89341-33220-J4×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-K0×2iNHP130,NSP13#..F..CBU201901

main89341-33220-P2×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-R0×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-R5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-X4×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-X5×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-X6×2iNHP130,NSP13#..JEWL201806-201910

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-33220-C4×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220-A0×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-A5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-B0×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-C7×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-D4×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-D7×2iNHP130,NSP13#..F..CBU201901

main89341-33220-E5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806-201910

main89341-33220-E7×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-F4×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-G2×2iNHP130,NSP13#..JEWL201806-201910

main89341-33220-G8×2iNHP130,NSP13#..JEWL201806

main89341-33220-J4×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-K0×2iNHP130,NSP13#..F..CBU201901

main89341-33220-P2×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-R0×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-R5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-X4×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-X5×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-X6×2iNHP130,NSP13#..JEWL201806-201910

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-33220-A0×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-A5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-B0×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-C7×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-D4×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-D7×2iNHP130,NSP13#..F..CBU201901

main89341-33220-E5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806-201910

main89341-33220-E7×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-F4×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-G2×2iNHP130,NSP13#..JEWL201806-201910

main89341-33220-G8×2iNHP130,NSP13#..JEWL201806

main89341-33220-J4×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-K0×2iNHP130,NSP13#..F..CBU201901

main89341-33220-P2×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-R0×2iNHP130,NSP13#..(F,U)..CBU201806

main89341-33220-R5×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-X4×2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main89341-33220-X5×2iNHP130,NSP13#..(F,JEWL)..CBU201806

main89341-33220-X6×2iNHP130,NSP13#..JEWL201806-201910

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iNHP130,NSP13#..(F,JEWL,U)..CBU201806

89348JCLIP, ULTRASONIC SENSOR

main89348-58130×6iNHP130,NSP13#..(F,JEWL,U)..CBU201806

9015970003

main90159-70003

11 parts on this diagram · 1 diagram in section
