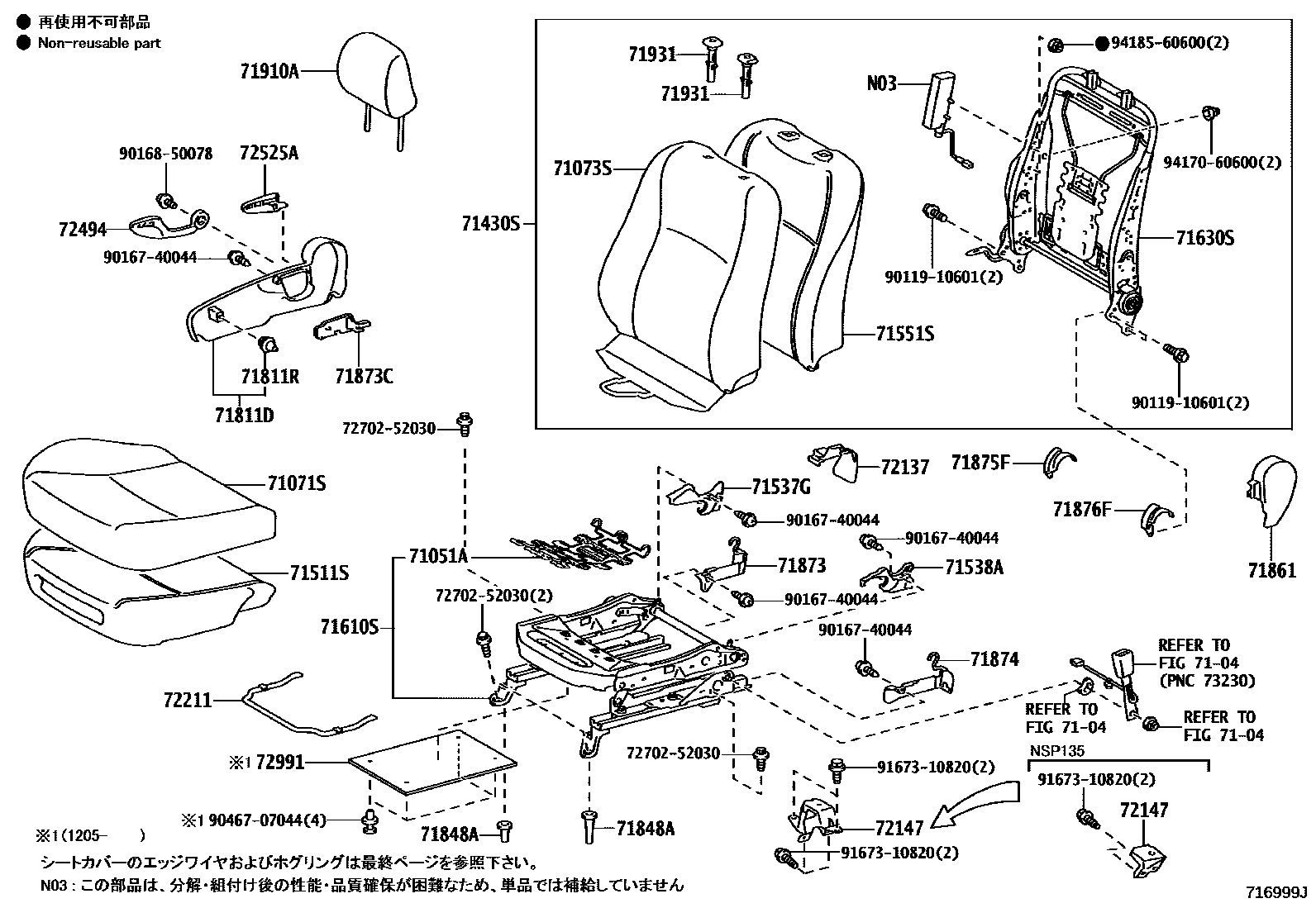

FRONT SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
main71537-52100-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
main71538-52050-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-52830iKSP130,NCP131,NSP13#..(JEWL,U)..CBU; KSP130,NSP13#..F..CBU; NSP13#..U..CBU201012-201404
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-52380iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NHP130..F..CBU; NHP130..JEWL201701-201810
main71630-52381supersedes 71630-52361iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NHP130..F..CBU; NHP130..JEWL201810
main71630-52490iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NHP130..F..CBU201701-201810
main71630-52491supersedes 71630-52361iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NHP130..F..CBU201810
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-52280-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main71811-52330-C0supersedes 71811-52280-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..(RS,U)..CBU; NCP131..RS; NSP13#..U..CBU; NSP130..F..CBU201404-201701
71811RCLIP, FRONT SEAT CUSHION SHIELD, RH
71848ACAP, SEAT ADJUSTER COVER, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-52260-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-52200-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
71873CSHIELD, REAR SEAT CUSHION, LOWER RH
main71873-52230-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,4#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-60260-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-60270-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
71910AHEADREST ASSY, FRONT SEAT
GRAY,TRIM1#
GRAY,TRIM1#
TRUFFE,TRIM4#
TRUFFE,TRIM4#
DARK GRAY,TRIM11,12
GRAY,TRIM10
DARK GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
TRUFFE,TRIM4#
TRUFFE,TRIM4#
BLACK,TRIM2#
BURGUNDY,TRIM3#
BLACK,TRIM2#
BURGUNDY,TRIM3#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-C0×2iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NHP130,NSP13#..U..CBU; NHP130..F..CBU201701-201710
main71930-47020-C4×2iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NCP131; NHP130,NSP13#..U..CBU; NHP130..F..CBU; NHP130..GRS201710
main71931-47020-C0×2iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU; NSP13#..U..CBU201012-201404
main71931-47020-C4×2iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NCP131; NHP130,NSP13#..U..CBU; NHP130..F..CBU; NHP130..GRS201710
72137COVER, SEAT TRACK, OUTER RH
main72137-52090-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201012-201404
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,4#
main72137-52170-C0iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NCP131,NHP130..GRS; NHP130,NSP13#..U..CBU201710
BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72211HANDLE, SEAT TRACK ADJUSTING
main72211-52130supersedes 72211-52190iKSP130,NCP131,NSP13#..(F,RS)..CBU; KSP130,NCP131,NSP13#..CBU; KSP130,NSP13#..F..CBU; NSP13#..U..CBU201012-201201
main72211-52190×2iKSP130,NCP131,NSP13#..(F,RS)..CBU; KSP130,NCP131,NSP13#..(JEWL,U)..CBU; KSP130,NSP13#..F..CBU; NCP131..RS; NSP13#..U..CBU201202-201404
main72211-52230×2iKSP130,NCP131,NHP130,NSP13#..CBU; KSP130,NHP130,NSP13#..F..CBU; NHP130..F..CBU201804
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-52040-C0iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NHP130,NSP13#..U..CBU201701-201811
BLACK,TRIM0#,2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
main72494-52050-C0iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NCP131,NHP130..GRS; NHP130,NSP13#..U..CBU201812
BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-47010-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main72525-47010-C1iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NCP131; NHP130,NSP13#..U..CBU; NHP130..GRS201710
BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM20
72991COVER, FRONT SEAT CUSHION, RH
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
9011910601
main90119-10601
9016740044
main90167-40044
9016850078
main90168-50078
9046707044
main90467-07044
9167310820
main91673-10820
9417060600
main94170-60600
9418560600
main94185-60600
36 parts on this diagram · 21 diagrams in section
