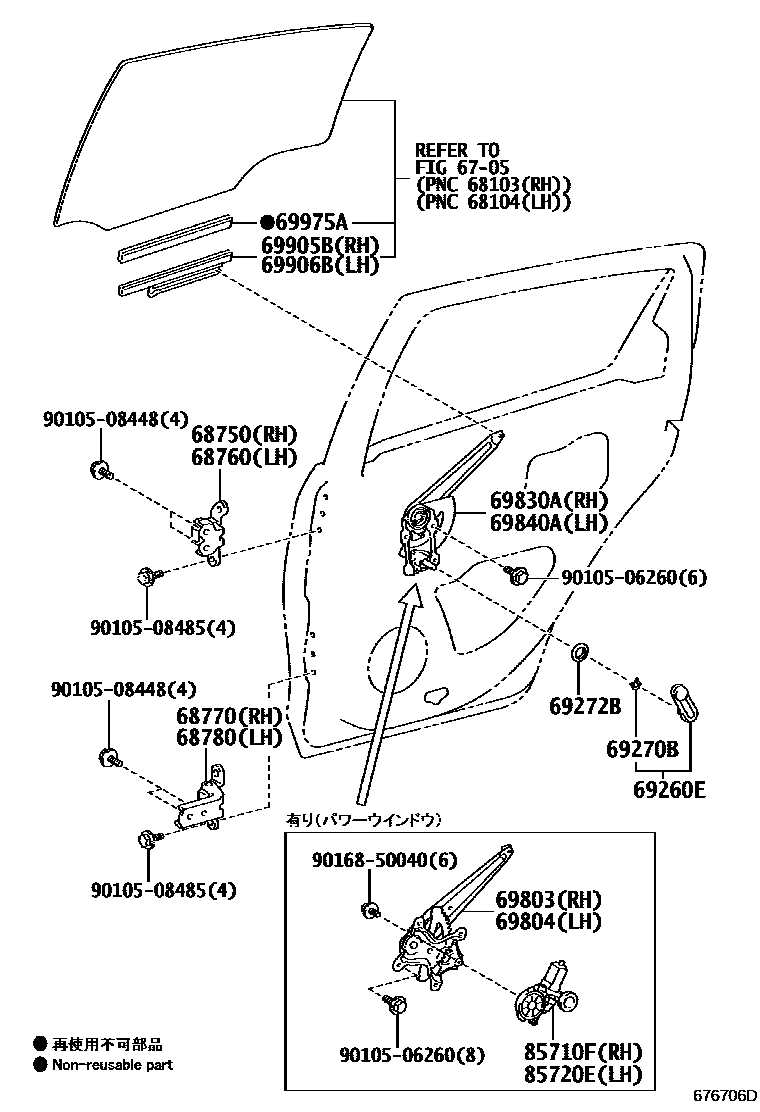

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iKSP130,NCP131,NSP13#..CBU201012-201206

main68750-20122iKSP130,NCP131,NSP13#..CBU201207-201404

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iKSP130,NCP131,NSP13#..CBU201012-201206

main68760-20122iKSP130,NCP131,NSP13#..CBU201207-201404

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iKSP130,NCP131,NSP13#..CBU201012-201404

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iKSP130,NCP131,NSP13#..CBU201012-201404

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14030-C0×2iKSP130..F..CBU201012-201404

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iKSP130..F..CBU201012-201404

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-52010×2iKSP130..F..CBU201012-201404

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52090iKSP130,NCP131,NSP13#..CBU201012-201404

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-52100iKSP130,NCP131,NSP13#..CBU201012-201404

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-52260iKSP130..F..CBU201012-201404

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-52260iKSP130..F..CBU201012-201404

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52060iKSP130,NCP131,NSP13#..CBU201012-201404

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52060iKSP130,NCP131,NSP13#..CBU201012-201404

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iKSP130,NCP131,NSP13#..CBU201012-201404

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-52150iKSP130,NCP131,NSP13#..CBU201012-201404

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-52160iKSP130,NCP131,NSP13#..CBU201012-201404

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

21 parts on this diagram · 1 diagram in section
