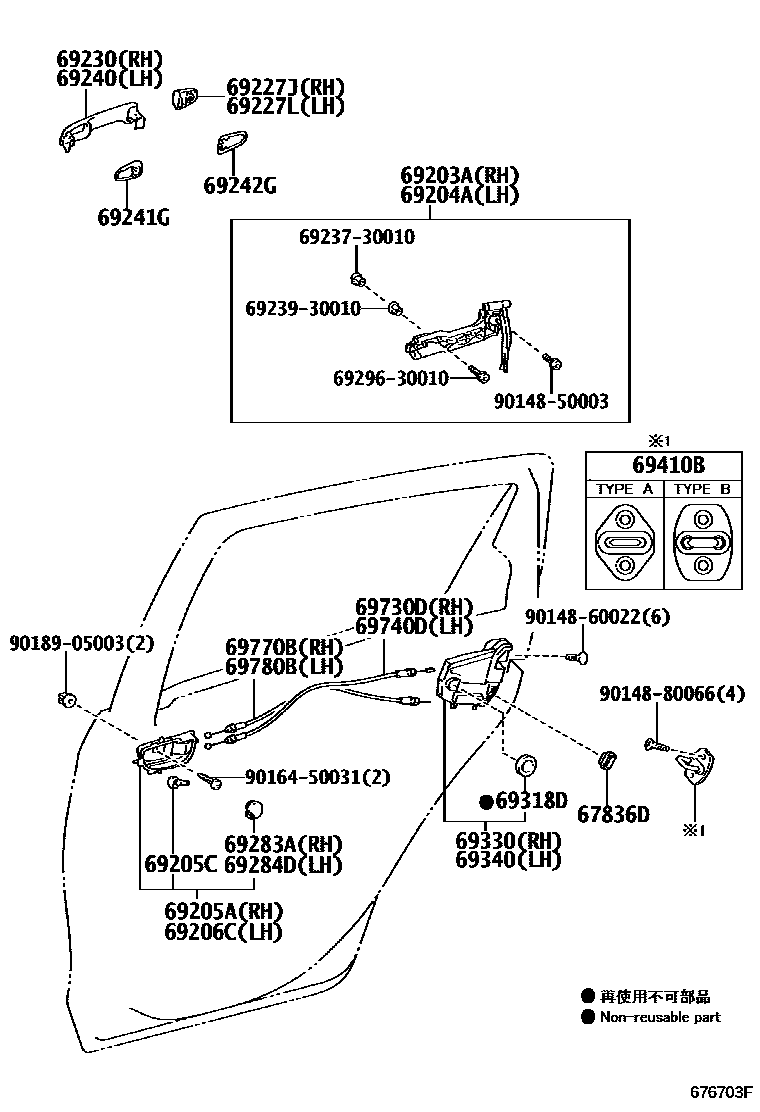

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#; BLACK,TRIM2#,3#,4#
BLACK,TRIM1#,2#,4#,5#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#; BLACK,TRIM1#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,070 ,1F7 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4T4 ,4U3 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,9AC; SILVER ME.,1F7
GRAY ME.,1G3
GIN BUCK ME.,1J1
BLACK MC.,209
SUPER RED 5,3P0
ROSE ME.OP.,3P3
CHERRY PEARL CS.,3S7
DEEP RED M.M.,3R9
DK. BROWN M.M.,4U3
AVANT-GARDE BRONZE ME.,4V8
ORANGE ME.,4R8
BEIGE M.M.,4R3
SILKY GOLD M.M.,5A7
LUMINOUS YELLOW,5B5
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
BLUE M.M.,8T0
DK.BLUE MC.,8S6
BLUE ME.,8T7
COOL SODA ME.,8V7
LT.PURPLE M.M.,9AE
CLEAR BLUE CS.,8Y3
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,070 ,1F7 ,209 ,3P0 ,3P3 ,3Q8 ,3S7 ,4T4 ,4U3 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,9AC; SILVER ME.,1F7
GRAY ME.,1G3
GIN BUCK ME.,1J1
BLACK MC.,209
SUPER RED 5,3P0
ROSE ME.OP.,3P3
CHERRY PEARL CS.,3S7
DEEP RED M.M.,3R9
DK. BROWN M.M.,4U3
AVANT-GARDE BRONZE ME.,4V8
ORANGE ME.,4R8
BEIGE M.M.,4R3
SILKY GOLD M.M.,5A7
LUMINOUS YELLOW,5B5
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
BLUE M.M.,8T0
DK.BLUE MC.,8S6
BLUE ME.,8T7
COOL SODA ME.,8V7
LT.PURPLE M.M.,9AE
CLEAR BLUE CS.,8Y3
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,070 ,1F7 ,209 ,3P3 ,3Q8 ,3S7 ,4T4 ,4U3 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,9AC; SILVER ME.,1F7
GRAY ME.,1G3
GIN BUCK ME.,1J1
BLACK MC.,209
SUPER RED 5,3P0
ROSE ME.OP.,3P3
CHERRY PEARL CS.,3S7
DEEP RED M.M.,3R9
DK. BROWN M.M.,4U3
AVANT-GARDE BRONZE ME.,4V8
ORANGE ME.,4R8
BEIGE M.M.,4R3
SILKY GOLD M.M.,5A7
LUMINOUS YELLOW,5B5
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
BLUE M.M.,8T0
DK.BLUE MC.,8S6
BLUE ME.,8T7
COOL SODA ME.,8V7
LT.PURPLE M.M.,9AE
CLEAR BLUE CS.,8Y3
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,070 ,1F7 ,209 ,3P3 ,3Q8 ,3S7 ,4T4 ,4U3 ,6U1 ,777 ,8S7 ,8S9 ,8T0 ,9AC; SILVER ME.,1F7
GRAY ME.,1G3
GIN BUCK ME.,1J1
BLACK MC.,209
SUPER RED 5,3P0
ROSE ME.OP.,3P3
CHERRY PEARL CS.,3S7
DEEP RED M.M.,3R9
DK. BROWN M.M.,4U3
AVANT-GARDE BRONZE ME.,4V8
ORANGE ME.,4R8
BEIGE M.M.,4R3
SILKY GOLD M.M.,5A7
LUMINOUS YELLOW,5B5
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
BLUE M.M.,8T0
DK.BLUE MC.,8S6
BLUE ME.,8T7
COOL SODA ME.,8V7
LT.PURPLE M.M.,9AE
CLEAR BLUE CS.,8Y3
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-52010-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..(RS,U)..CBU; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69283-52010-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..(RS,U)..CBU; NSP130..F..CBU201404-201701
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
main69050-52220supersedes 69050-52190iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU201012-201404
main69050-52250supersedes 69050-52260iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU201404-201701
69340LOCK ASSY, REAR DOOR, LH
main69060-52230supersedes 69060-52200iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU201012-201404
main69060-52280supersedes 69060-52290iKSP130,NHP130,NSP13#..(F,JEWL)..CBU; NCP131,NHP130,NSP13#..(GRS,U)..CBU201701
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
30 parts on this diagram · 1 diagram in section
