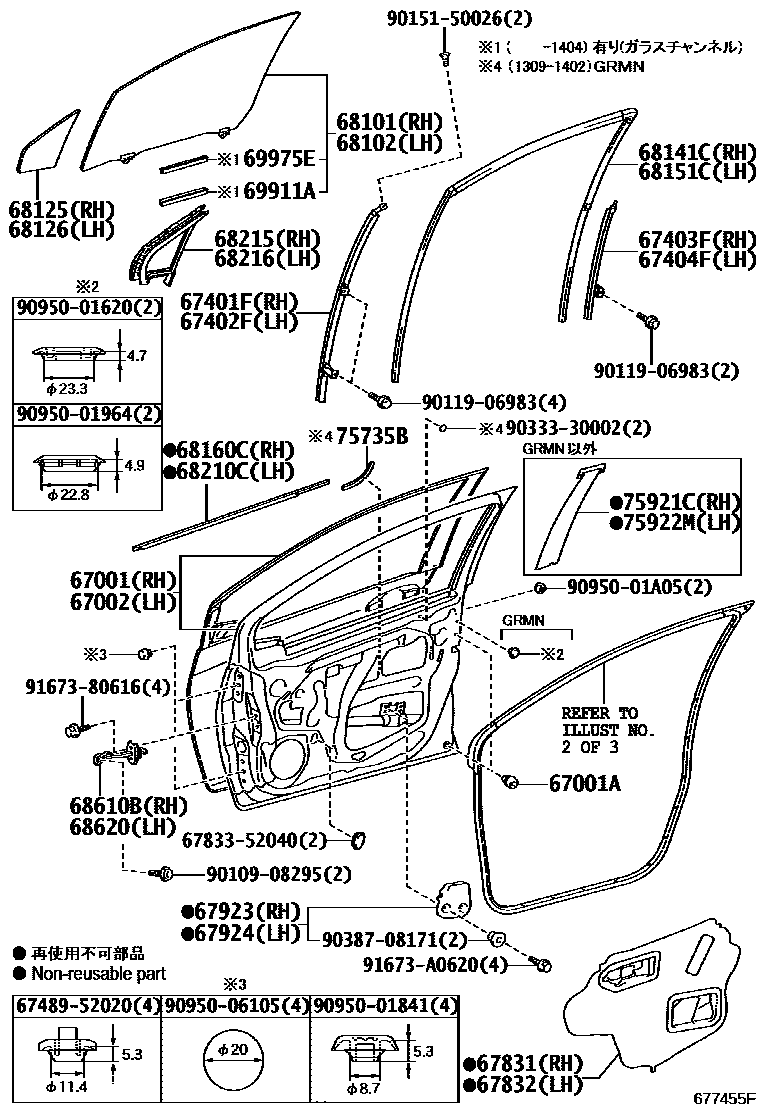

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������������� 0003 1������ 0004 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52500iKSP130,NCP131,NSP13#..CBU201012-201701

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iKSP130,NCP131,NHP130,NSP13#..CBU201012-201701

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52480iKSP130,NCP131,NSP13#..CBU201012-201701

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52160iKSP130,NCP131,NSP13#..CBU201012-201701

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52150iKSP130,NCP131,NSP13#..CBU201012-201701

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52240iKSP130,NCP131,NSP13#..CBU201012-201609

main67403-52270iKSP130,NCP131,NSP13#..CBU201610-201701

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52210iKSP130,NCP131,NSP13#..CBU201012-201609

main67404-52230iKSP130,NCP131,NSP13#..CBU201610-201701

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52400iKSP130,NCP131,NSP13#..CBU201012-201303

main67831-52450iKSP130,NCP131,NSP13#..CBU201304-201701

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52260iKSP130,NCP131,NSP13#..CBU201012-201303

main67832-52320iKSP130,NCP131,NSP13#..CBU201304-201701

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-52180iKSP130,NCP131,NSP13#..CBU201012-201701

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-52190iKSP130,NCP131,NSP13#..CBU201012-201701

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52310iNCP131,NSP13#..(RS,U)..CBU201012-201404

main68110-52340iKSP130,NSP13#..F..CBU201012-201404

main68110-52400iKSP130,NSP13#..JEWL201012-201404

main68110-52400iKSP130,NSP13#..JEWL201012-201404

main68110-52440iKSP130,NCP131,NSP13#..CBU201404-201610

main68110-52441iKSP130,NCP131,NHP130,NSP13#..CBU201611-201701

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52310iNCP131,NSP13#..(RS,U)..CBU201012-201404

main68120-52370iKSP130,NSP13#..F..CBU201012-201404

main68120-52400iKSP130,NSP13#..JEWL201012-201404

main68120-52400iKSP130,NSP13#..JEWL201012-201404

main68120-52440iKSP130,NCP131,NSP13#..CBU201404-201610

main68120-52441iKSP130,NCP131,NHP130,NSP13#..CBU201611-201701

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-52030iKSP130,NCP131,NSP13#..CBU201012-201701

main68125-52030iKSP130,NCP131,NHP130,NSP13#..CBU201701-201810

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-52030iKSP130,NCP131,NSP13#..CBU201012-201701

main68126-52030iKSP130,NCP131,NHP130,NSP13#..CBU201701-201810

68141CRUN, FRONT DOOR GLASS, RH

main68141-52240iKSP130,NCP131,NSP13#..CBU201012-201404

main68141-52241iKSP130,NCP131,NSP13#..CBU201404-201406

main68141-52330iKSP130,NCP131,NSP13#..CBU201407-201701

68151CRUN, FRONT DOOR GLASS, LH

main68151-52220iKSP130,NCP131,NSP13#..CBU201012-201404

main68151-52221iKSP130,NCP131,NSP13#..CBU201404-201406

main68151-52300iKSP130,NCP131,NSP13#..CBU201407-201701

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52180iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201012-201109

main68160-52181iKSP130,NCP131,NHP130,NSP13#..(F,GRS,U)..CBU201110-201701

main68160-52200iKSP130,NSP13#..JEWL201012-201701

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52180iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201012-201109

main68210-52181iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201110-201701

main68210-52200iKSP130,NSP13#..JEWL201012-201701

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-52020iKSP130,NCP131,NSP13#..CBU201012-201211

main68215-52060iKSP130,NCP131,NSP13#..CBU201212-201402

main68215-52061iKSP130,NCP131,NSP13#..CBU201403-201810

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-52020iKSP130,NCP131,NSP13#..CBU201012-201211

main68216-52050iKSP130,NCP131,NSP13#..CBU201212-201402

main68216-52051iKSP130,NCP131,NHP130,NSP13#..CBU201403-201810

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52130iKSP130,NCP131,NSP13#..CBU201012-201701

68620CHECK ASSY, FRONT DOOR, LH

main68610-52130iKSP130,NCP131,NSP13#..CBU201012-201701

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69955-47010iKSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU201012-201404

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-47010iKSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU201012-201404

75735BMOULDING, FRONT DOOR OUTSIDE, LOWER

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52130iKSP130,NCP131,NSP13#..CBU201012-201701

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52130iKSP130,NCP131,NSP13#..CBU201012-201701

6748952020SEAL, REAR DOOR DIVISION BAR

main67489-52020

6783352040COVER, REAR DOOR SERVICE HOLE

main67833-52040

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9033330002

main90333-30002

9038708171

main90387-08171

9095001620

main90950-01620

9095001841

main90950-01841

9095001964

main90950-01964

9095001A05

main90950-01A05

9095006105

main90950-06105

9167380616

main91673-80616

91673A0620

main91673-A0620

42 parts on this diagram · 4 diagrams in section
