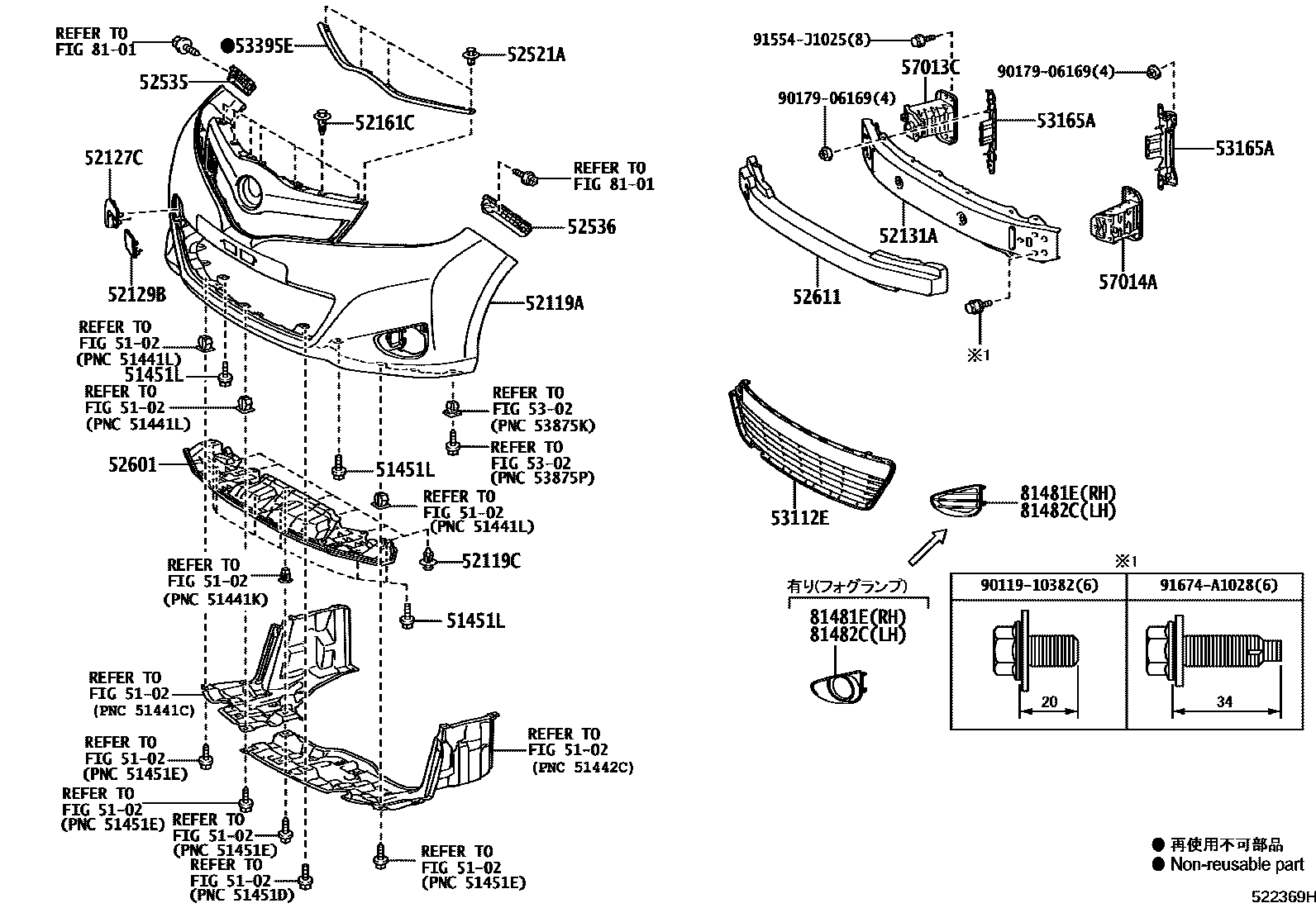

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1G'S 0006 1G'S 0007 1GRMN 0008 1 0009 1 0010 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451LBOLT, NO.1

main90119-06767×8iKSP130,NCP131,NSP13#..CBU201012-201404

52119ACOVER, FRONT BUMPER

main52119-52710-A0iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201404

SUPER WHITE 2,040

main52119-52710-A1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

WHITE PEARL CS.,070

main52119-52710-B0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

SILVER ME.,1F7

main52119-52710-B1iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201404

GRAY ME.,1G3

main52119-52710-B2iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201404

GIN BUCK ME.,1J1

main52119-52710-C0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

BLACK MC.,209

main52119-52710-D0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

SUPER RED 5,3P0

main52119-52710-D1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201212

ROSE ME.OP.,3P3

main52119-52710-D2iKSP130,NSP13#..JEWL201012-201404

CHERRY PEARL CS.,3S7

main52119-52710-D3iKSP130,NSP13#..JEWL201012-201404

DARK RED MC.,3Q8

main52119-52710-E0iKSP130,NSP13#..JEWL201012-201404

DK. BROWN M.M.,4U3

main52119-52710-E1iKSP130,NSP13#..JEWL201109-201205

COPPER ME.,4T4

main52119-52710-E2iKSP130,NSP13#..JEWL201205-201212

ORANGE M.M.,4S9

main52119-52710-F0iKSP130,NSP13#..JEWL201109-201404

YELLOW,5A6

main52119-52710-G0iKSP130,NSP13#..JEWL201012-201109

GREEN M.M.,6U1

main52119-52710-H1iKSP130,NSP13#..JEWL201012-201109

TURQUOISE ME.,777

main52119-52710-J0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

LT.BLUE M.M.,8S7

main52119-52710-J1iKSP130,NSP13#..JEWL201012-201404

BLUE M.M.,8T0

main52119-52710-J2iKSP130,NSP13#..JEWL201109-201205

LT. BLUE M.M.,8S9

main52119-52710-J3iKSP130,NSP13#..JEWL201205-201212

GRAYISH BLUE M.M.,8T1

main52119-52710-K0iKSP130,NSP13#..JEWL201012-201109

REDDISH PURPLE M.M.,9AC

main52119-52710-K1iKSP130,NSP13#..F..CBU201205-201404

LT.PURPLE M.M.,9AE

main52119-52720-A0iNCP131..RS201012-201404

SUPER WHITE 2,040

main52119-52720-B0iNCP131..RS201012-201404

SILVER ME.,1F7

main52119-52720-B2iNCP131..RS201012-201404

GIN BUCK ME.,1J1

main52119-52720-H0iNCP131..RS201012-201404

TURQUOISE M.M.,788

main52119-52760-A0iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

SUPER WHITE 2,040

main52119-52760-A1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

WHITE PEARL CS.,070

main52119-52760-B0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

SILVER ME.,1F7

main52119-52760-B1iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

GRAY ME.,1G3

main52119-52760-C0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

BLACK MC.,209

main52119-52760-D0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

SUPER RED 5,3P0

main52119-52760-D1iKSP130,NSP13#..JEWL201404-201701

DK. RED M.M.,3Q3

main52119-52760-D2iKSP130,NSP13#..JEWL; KSP130,NSP130..F..CBU201404-201701

main52119-52760-D3iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU201404-201701

main52119-52760-E0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

BEIGE M.M.,4R3

main52119-52760-E1iKSP130,NSP13#..JEWL201404-201507

BRONZE M.M.,4T3

main52119-52760-E2iKSP130,NSP13#..JEWL201404-201507

COPPER M.M.,4T9

main52119-52760-E3iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201507

DK. BROWN M.M.,4U3

main52119-52760-E4iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201507-201701

ORANGE ME.,4R8

main52119-52760-E5iKSP130,NSP13#..JEWL201507-201701

CREAM BEIGE,4V9

main52119-52760-F1iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

LUMINOUS YELLOW,5B5

main52119-52760-G0iKSP130,NSP13#..JEWL201404-201701

JADE GREEN METALLIC,6V5

main52119-52760-J0iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

BLUE ME.,8T7

main52119-52760-J1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

COOL SODA ME.,8V7

main52119-52760-J2iKSP130,NSP13#..JEWL201507-201701

ICEBERG SILVER M.M.,8V0

main52119-52860-A0iNCP131..RS201404-201701

SUPER WHITE 2,040

main52119-52860-B0iNCP131..RS201404-201701

SILVER ME.,1F7

main52119-52A50-A0iKSP130,NHP130,NSP13#..(F,U)..CBU201701

SUPER WHITE 2,040

main52119-52A50-A1iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

WHITE PEARL CS.,070

main52119-52A50-B0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

SILVER ME.,1F7

main52119-52A50-B1iKSP130,NHP130,NSP13#..(F,U)..CBU201701

GRAY ME.,1G3

main52119-52A50-C0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

BLACK MC.,209

main52119-52A50-D0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

SUPER RED 5,3P0

main52119-52A50-D1iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701

DK. RED M.M.,3Q3

main52119-52A50-D2iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701

DEEP RED M.M.,3R9

main52119-52A50-D3iKSP130,NHP130,NSP13#..JEWL201701-201910

CHERRY PEARL CS.,3S7

main52119-52A50-E0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-201910

ORANGE ME.,4R8

main52119-52A50-E1iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

AVANT-GARDE BRONZE ME.,4V8

main52119-52A50-F0iKSP130,NHP130,NSP13#..(F,U)..CBU201701

LUMINOUS YELLOW,5B5

main52119-52A50-G0iKSP130,NHP130,NSP13#..JEWL201701

OLIVE M.M.,6T7

main52119-52A50-G1iKSP130,NHP130,NSP13#..JEWL201701-201910

JADE GREEN METALLIC,6V5

main52119-52A50-J0iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701

DK.BLUE MC.,8S6

main52119-52A50-J1iKSP130,NHP130,NSP13#..(F,U)..CBU201701

BLUE ME.,8T7

main52119-52A50-J3iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

CLEAR BLUE CS.,8Y3

main52119-52B30-A0iNCP131,NHP130..GRS201709

SUPER WHITE 2,040

main52119-52B30-A1iNCP131,NHP130..GRS201709

WHITE PEARL CS.,070

main52119-52B30-B0iNCP131,NHP130..GRS201709

SILVER ME.,1F7

main52119-52B30-B1iNCP131,NHP130..GRS201709

GRAY ME.,1G3

main52119-52B30-C0iNCP131,NHP130..GRS201709

BLACK MC.,209

main52119-52B30-D0iNCP131,NHP130..GRS201709

SUPER RED 5,3P0

main52119-52B30-F0iNCP131,NHP130..GRS201709

LUMINOUS YELLOW,5B5

main52119-52B30-J0iNCP131,NHP130..GRS201709

BLUE ME.,8T7

main52119-0U905iNCP131..5F201309-201402

main52119-52710-D4iKSP130,NSP13#..F..CBU201212-201404

main52119-52710-F1iKSP130,NSP13#..F..CBU201212-201404

main52119-52710-J4iKSP130,NSP13#..F..CBU201212-201404

main52119-52830-A0iNCP131..RS201110-201404

main52119-52830-A1iNCP131..RS201404-201701

main52119-52830-B0iNCP131..RS201110-201404

main52119-52830-B1supersedes 52119-52860-B1iNCP131..RS201404-201701

main52119-52830-C0supersedes 52119-52860-C0iNCP131..RS201404-201701

main52119-52830-D0supersedes 52119-52860-D0iNCP131..RS201404-201701

main52119-52830-D1iNCP131..RS201404-201701

main52119-52830-E0supersedes 52119-52860-E2iNCP131..RS201507-201701

main52119-52830-F1supersedes 52119-52860-F1iNCP131..RS201404-201701

main52119-52830-H0iNCP131..RS201110-201404

main52119-52830-J0supersedes 52119-52860-J0iNCP131..RS201404-201701

main52119-52A50-D4iKSP130..F..CBU201901

main52119-52A50-K0iKSP130..F..CBU201901

main52119-5C930-A0iNHP130,NSP13#..(F,U)..CBU201806

main52119-5C930-A1iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main52119-5C930-B0iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main52119-5C930-B1iNHP130,NSP13#..(F,U)..CBU201806

main52119-5C930-C0iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main52119-5C930-D0iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main52119-5C930-D1iNHP130,NSP13#..(F,JEWL)..CBU201806

main52119-5C930-D2iNHP130,NSP13#..(F,JEWL)..CBU201806

main52119-5C930-D3iNHP130,NSP13#..JEWL201806

main52119-5C930-D5iNHP130,NSP13#..F..CBU201901

main52119-5C930-E0iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main52119-5C930-E1iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main52119-5C930-F0iNHP130,NSP13#..(F,U)..CBU201806

main52119-5C930-G0iNHP130,NSP13#..JEWL201806

main52119-5C930-G1iNHP130,NSP13#..JEWL201806

main52119-5C930-J0iNHP130,NSP13#..(F,JEWL)..CBU201806

main52119-5C930-J1iNHP130,NSP13#..(F,U)..CBU201806

main52119-5C930-J2iNHP130,NSP13#..(F,JEWL,U)..CBU201806

main52119-5C930-K0iNHP130,NSP13#..F..CBU201901

52119CCLIP, FRONT BUMPER COVER

main90467-10216×6iKSP130,NCP131,NSP13#..CBU201012-201404

52127CCOVER, FRONT BUMPER HOLE

main52127-52510-A0iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201404

SUPER WHITE 2,040

main52127-52510-A1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

WHITE PEARL CS.,070

main52127-52510-B0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

SILVER ME.,1F7

main52127-52510-B1iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201404

GRAY ME.,1G3

main52127-52510-B2iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201404

GIN BUCK ME.,1J1

main52127-52510-C0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

BLACK MC.,209

main52127-52510-D0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

SUPER RED 5,3P0

main52127-52510-D1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201212

ROSE ME.OP.,3P3

main52127-52510-D2iKSP130,NSP13#..JEWL201012-201404

CHERRY PEARL CS.,3S7

main52127-52510-D3iKSP130,NSP13#..JEWL201012-201404

DARK RED MC.,3Q8

main52127-52510-E0iKSP130,NSP13#..JEWL201012-201404

DK. BROWN M.M.,4U3

main52127-52510-E1iKSP130,NSP13#..JEWL201109-201205

COPPER ME.,4T4

main52127-52510-E2iKSP130,NSP13#..JEWL201205-201212

ORANGE M.M.,4S9

main52127-52510-F0iKSP130,NSP13#..JEWL201109-201404

YELLOW,5A6

main52127-52510-G0iKSP130,NSP13#..JEWL201012-201109

GREEN M.M.,6U1

main52127-52510-H1iKSP130,NSP13#..JEWL201012-201109

TURQUOISE ME.,777

main52127-52510-J0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

LT.BLUE M.M.,8S7

main52127-52510-J1iKSP130,NSP13#..JEWL201012-201404

BLUE M.M.,8T0

main52127-52510-J2iKSP130,NSP13#..JEWL201109-201205

LT. BLUE M.M.,8S9

main52127-52510-J3iKSP130,NSP13#..JEWL201205-201212

GRAYISH BLUE M.M.,8T1

main52127-52510-K0iKSP130,NSP13#..JEWL201012-201109

REDDISH PURPLE M.M.,9AC

main52127-52510-K1iKSP130,NSP13#..F..CBU201205-201404

LT.PURPLE M.M.,9AE

main52127-52580-A0iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

SUPER WHITE 2,040

main52127-52580-A1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

WHITE PEARL CS.,070

main52127-52580-B0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

SILVER ME.,1F7

main52127-52580-B1iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

GRAY ME.,1G3

main52127-52580-C0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

BLACK MC.,209

main52127-52580-D0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

SUPER RED 5,3P0

main52127-52580-D1iKSP130,NSP13#..JEWL201404-201701

DK. RED M.M.,3Q3

main52127-52580-D2iKSP130,NSP13#..JEWL; KSP130,NSP130..F..CBU201404-201701

main52127-52580-D3iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU201404-201701

main52127-52580-E0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

BEIGE M.M.,4R3

main52127-52580-E1iKSP130,NSP13#..JEWL201404-201507

BRONZE M.M.,4T3

main52127-52580-E2iKSP130,NSP13#..JEWL201404-201507

COPPER M.M.,4T9

main52127-52580-E3iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201507

DK. BROWN M.M.,4U3

main52127-52580-E4iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201507-201701

ORANGE ME.,4R8

main52127-52580-E5iKSP130,NSP13#..JEWL201507-201701

CREAM BEIGE,4V9

main52127-52580-F1iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

LUMINOUS YELLOW,5B5

main52127-52580-G0iKSP130,NSP13#..JEWL201404-201701

JADE GREEN METALLIC,6V5

main52127-52580-J0iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

BLUE ME.,8T7

main52127-52580-J1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

COOL SODA ME.,8V7

main52127-52580-J2iKSP130,NSP13#..JEWL201507-201701

ICEBERG SILVER M.M.,8V0

main52127-0D916iNCP131..5F201309-201402

main52127-52510-D4iKSP130,NSP13#..F..CBU201212-201404

main52127-52510-F1iKSP130,NSP13#..F..CBU201212-201404

main52127-52510-J4iKSP130,NSP13#..F..CBU201212-201404

main52127-52570-A0iNCP131..RS201110-201404

main52127-52570-A1iNCP131..RS201404-201701

main52127-52570-B0iNCP131..RS201110-201404

main52127-52570-B1iNCP131..RS201404-201701

main52127-52570-C0iNCP131..RS201404-201701

main52127-52570-D0iNCP131..RS201404-201701

main52127-52570-D1iNCP131..RS201404-201701

main52127-52570-E0iNCP131..RS201507-201701

main52127-52570-F1iNCP131..RS201404-201701

main52127-52570-H0iNCP131..RS201110-201404

main52127-52570-J0iNCP131..RS201404-201701

52129BCOVER, FRONT BUMPER, LOWER

main52129-52090iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

main52129-52120iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

main52129-52160iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main52129-52220iNCP131,NHP130..GRS201709

main52129-52110supersedes 52129-52130iNCP131..RS201404-201701

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iKSP130,NCP131,NSP13#..CBU201012-201404

52161CPIECE, FRONT BUMPER

main52161-16010×7iKSP130,NCP131,NSP13#..CBU201012-201404

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05063-C0×4iKSP130,NCP131,NSP13#..CBU201012-201404

BLACK

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52110iKSP130,NCP131,NSP13#..CBU201012-201201

main52535-52111iKSP130,NCP131,NSP13#..CBU201404-201701

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52080iKSP130,NCP131,NSP13#..CBU201012-201201

main52536-52081iKSP130,NCP131,NSP13#..CBU201202-201404

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-52010iKSP130,NCP131,NSP13#..CBU201012-201404

main52601-52020iKSP130,NCP131,NSP13#..CBU201404-201701

main52601-52040iNHP130..CBU201701

main52601-52050iKSP130,NCP131,NSP13#..CBU201701

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52090supersedes 52611-52231iKSP130,NCP131,NSP13#..CBU201012-201404

main52611-52220iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

main52611-52231iNHP130,NSP130..(F,JEWL,U)..CBU201701-201805

main52611-52310iKSP130,NSP135..CBU201701-201805

main52611-52320iNCP131,NHP130..GRS201709

main52611-52360iNHP130,NSP130..(F,JEWL,U)..CBU201806

main52611-52370iKSP130,NSP135..CBU201806

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-52260iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

main53112-52300iNCP131..RS201012-201404

main53112-52410iNCP131..RS201404-201701

main53112-52500iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main53112-52630iNCP131,NHP130..GRS201709

main53112-0D250iNCP131..5F201309-201402

main53112-52390iNCP131..RS201110-201404

main53112-52450iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU; KSP130,NSP13#..F..CBU201404-201701

main53112-52460-A0iNCP131..RS201404-201701

main53112-52460-B2iNCP131..RS201404-201701

main53112-52460-D1iNCP131..RS201404-201701

main53112-52460-E0iNCP131..RS201507-201701

main53112-52460-F1iNCP131..RS201404-201701

main53112-52460-J0iNCP131..RS201404-201701

main53112-52680iNHP130,NSP13#..(F,JEWL,U)..CBU201806

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52030×2iKSP130,NCP131,NHP130,NSP13#..CBU201701

main53164-52060×2supersedes 53164-52030iKSP130,NCP131,NSP13#..CBU201012-201404

main53164-0D060×2iNCP131..5F201309-201402

53395ESEAL, HOOD TO FRONT END PANEL

main53395-52040supersedes 53395-52090iKSP130,NCP131,NSP13#..CBU201012-201404

main53395-52100iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

main53395-52130iKSP130,NCP131,NHP130,NSP13#..CBU201701

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52010iKSP130,NCP131,NSP13#..CBU201012-201207

main57013-52011supersedes 57013-52021iKSP130,NCP131,NSP13#..CBU201208-201404

main57013-52021iKSP130,NCP131,NHP130,NSP13#..CBU201701

main57013-0D041iNCP131..5F201309-201402

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52010supersedes 57014-52020iKSP130,NCP131,NSP13#..CBU201012-201404

main57014-52020iKSP130,NCP131,NHP130,NSP13#..CBU201701

main57014-0D030iNCP131..5F201309-201402

8101HEADLAMP

→ Go to FIG 81-01

81481ECOVER, FOG LAMP, RH

main81481-52760iNCP131,NHP130..GRS201709

main52030-0D020iNCP131..5F201309-201402

main81481-52380iKSP130,NSP13#..F..CBU201212-201404

main81481-52410iKSP130,NSP13#..F..CBU201507-201512

main81481-52520supersedes 81481-52530iNCP131..RS201404-201701

main81481-52750supersedes 81481-52670iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

81482CCOVER, FOG LAMP, LH

main81482-52650iNCP131,NHP130..GRS201709

main52040-0D020iNCP131..5F201309-201402

main81482-52320iKSP130,NSP13#..F..CBU201212-201404

main81482-52430supersedes 81482-52450iNCP131..RS201404-201701

main81482-52440iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU; KSP130,NSP13#..F..CBU201404-201701

main81482-52640iNHP130,NSP13#..(F,JEWL,U)..CBU201806

9011910382

main90119-10382

9017906169

main90179-06169

91554J1025

main91554-J1025

91674A1028

main91674-A1028

26 parts on this diagram · 10 diagrams in section
