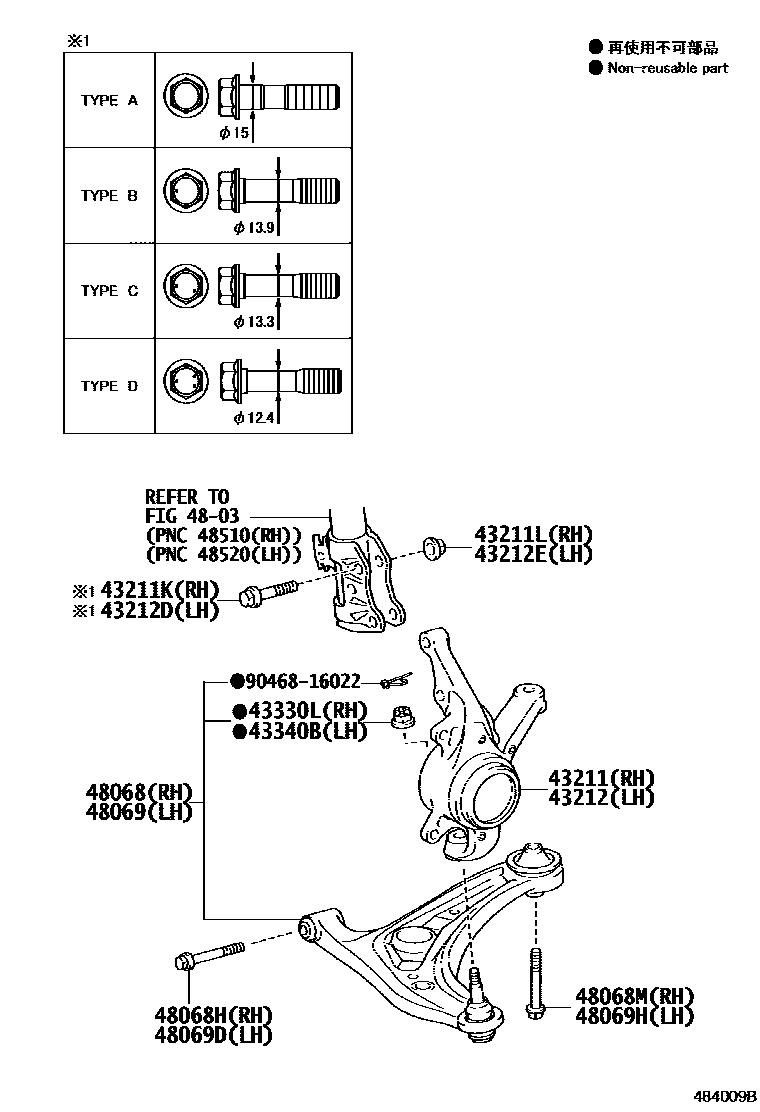

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52050i201404-201701

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2i201012-201404

main90109-15002i201701

main90109-15003i201404-201701

main90109-15004i201404-201701

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2i201404-201701

43212KNUCKLE, STEERING, LH

main43212-52050i201012-201404

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2i201012-201404

main90109-15002i201701

main90109-15003i201012-201404

main90109-15004i201404-201701

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2i201012-201404

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i201404-201701

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i201012-201404

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59155i201701-202001

main48068-59165i201309-201402

main48068-W9005i201404-201701

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086i201404-201701

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14144i201012-201211

main90119-14145i201012-201401

main90119-14151i201404-201701

main90119-14152i201701

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59145i201012-201404

main48069-59155i201309-201402

main48069-W9005i201404-201701

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086i201012-201404

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14144i201012-201211

main90119-14145i201012-201401

main90119-14151i201212-201404

main90119-14152i201404-201701

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
