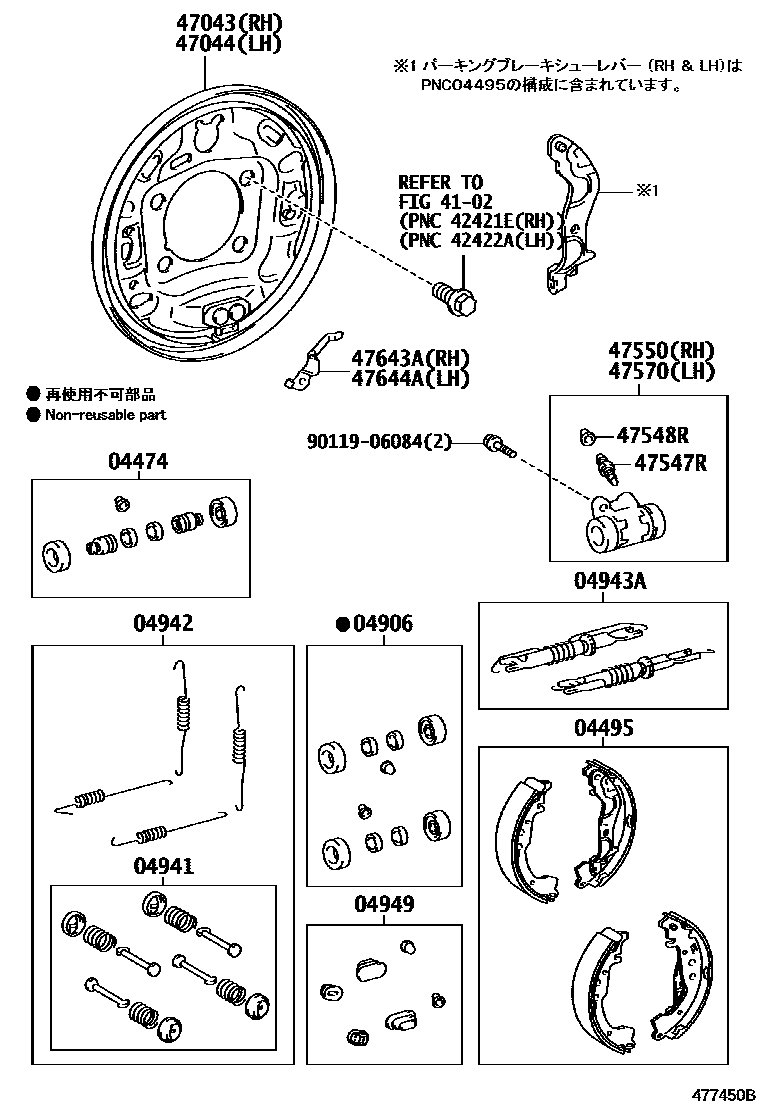

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0004 1 0005 1

04474CYLINDER KIT, REAR WHEEL

main04474-52010×2iKSP130,NSP130..CBU201012-201205

main04474-52020×2iNCP131,NSP135..(F,JEWL,U)..CBU201012-201404

main04474-52140×2iNHP130..CBU201701

04495SHOE KIT, REAR BRAKE

main04495-52100iNCP131,NSP135..(F,JEWL,U)..CBU201012-201306

sub04495-52140

main04495-52121iNHP130..CBU201701

main04495-52150iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201306-201403

main04495-52170iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201403-201404

main04495-74030iKSP130,NSP130..CBU201012-201205

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNCP131,NSP135..(F,JEWL,U)..CBU201012-201404

main04906-28040iNHP130..CBU201701-202001

main04906-52010iKSP130,NSP130..CBU201012-201205

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iNHP130..CBU201701

main04941-46010iKSP130,NSP130..CBU201205-201404

main04941-52010iKSP130,NSP130..CBU201012-201205

04942SPRING KIT, REAR BRAKE

main04942-13030iNHP130..CBU201701

main04942-52050iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

main04942-74010iKSP130,NSP130..CBU201012-201205

04943ASTRUT KIT, REAR BRAKE

main04943-12010iKSP130,NSP130..CBU201205-201404

main04943-52030iNHP130..CBU201701

main04943-74010iKSP130,NSP130..CBU201012-201205

04949PLUG KIT, REAR BRAKE

main04949-12010iKSP130,NSP130..CBU201205-201404

main04949-13010iNHP130..CBU201701

main04949-74010iKSP130,NSP130..CBU201012-201205

4102

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52100iKSP130,NSP130..CBU201205-201404

main47043-52120iNHP130..CBU201701

main47043-74010iKSP130,NSP130..CBU201012-201205

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52100iNCP131,NSP135..(F,JEWL,U)..CBU201012-201404

main47044-52120iNHP130..CBU201701

main47044-74010iKSP130,NSP130..CBU201012-201205

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

main47547-27030×2iNHP130..CBU201701

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNCP131,NSP135..(F,JEWL,U)..CBU201012-201404

main47550-28060iNHP130..CBU201701

main47550-52011iKSP130,NSP130..CBU201012-201205

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iNHP130..CBU201701

main47570-20101iKSP130,NSP130..CBU201205-201404

main47570-52011iKSP130,NSP130..CBU201012-201205

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNCP131,NSP135..(F,JEWL,U)..CBU201012-201403

main47643-52102iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201403-201404

main47643-52120iNHP130..CBU201701

main47643-74010iKSP130,NSP130..CBU201012-201205

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNCP131,NSP135..(F,JEWL,U)..CBU201012-201403

main47644-52102iKSP130,NSP13#..CBU201701

main47644-52120iNHP130..CBU201701

main47644-74010iKSP130,NSP130..CBU201012-201205

9011906084

main90119-06084

17 parts on this diagram · 4 diagrams in section
