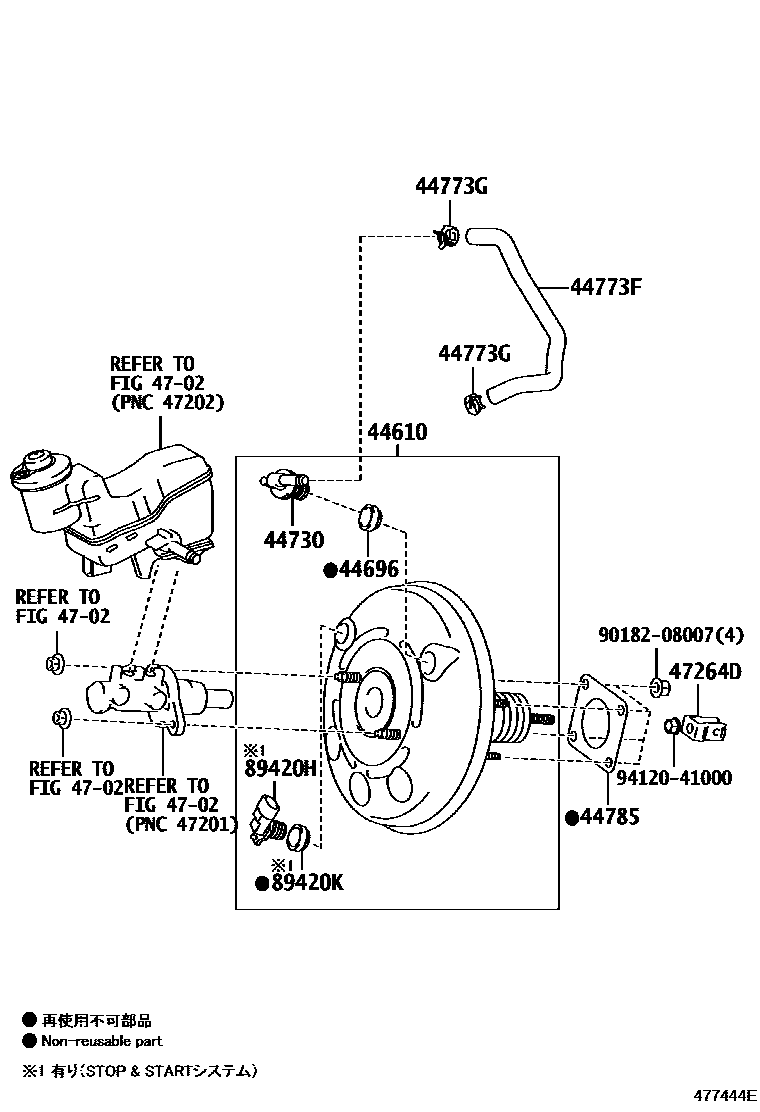

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44610BOOSTER ASSY, BRAKE

main44610-52A60iKSP130,NCP131,NSP13#..CBU201012-201404

main44610-52F50iNCP131,NSP135..(F,JEWL,U)..CBU201404-201701

main44610-52F80supersedes 44610-52F70iNSP130..CBU201404-201511

main44610-52G20iNCP131201709

main44610-52J00iKSP130,NSP130..CBU201511-201701

main44610-52A70iNSP130..(JEWL,U)..CBU201106-201205

main44610-52B10supersedes 44610-52G20iNCP131..RS201012-201404

main44610-52E70iNCP131..5F201112-201404

main44610-52F20iNSP130..CBU201205-201404

main44610-52F60iNCP131..U201404-201701

main44610-52F90iNCP131..CVT..RS201404-201701

main44610-52G30iNCP131..5F201309-201402

44696GROMMET, CHECK VALVE

main90480-24439×2iKSP130,NSP130..CBU; NCP131,NSP135..CBU201701

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iKSP130,NCP131,NSP13#..CBU201012-201404

44773FHOSE, UNION TO CHECK VALVE

main44773-52220iKSP130..CBU201012-201404

main44773-52240iNSP13#..CBU201012-201404

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iKSP130,NSP13#..CBU201012-201404

44785GASKET, BRAKE BOOSTER

main44785-16020iKSP130,NCP131,NSP13#..CBU201012-201404

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iKSP130,NCP131,NSP13#..CBU201012-201404

89420HSENSOR ASSY, VACUUM

main89421-52020iNCP131..CVT; NSP130..CBU201404-201701

89420KGROMMET, VACUUM SENSOR

main90480-24439iNCP131..CVT; NSP130..CBU201404-201701

9018208007

main90182-08007

9412041000

main94120-41000

12 parts on this diagram · 6 diagrams in section
