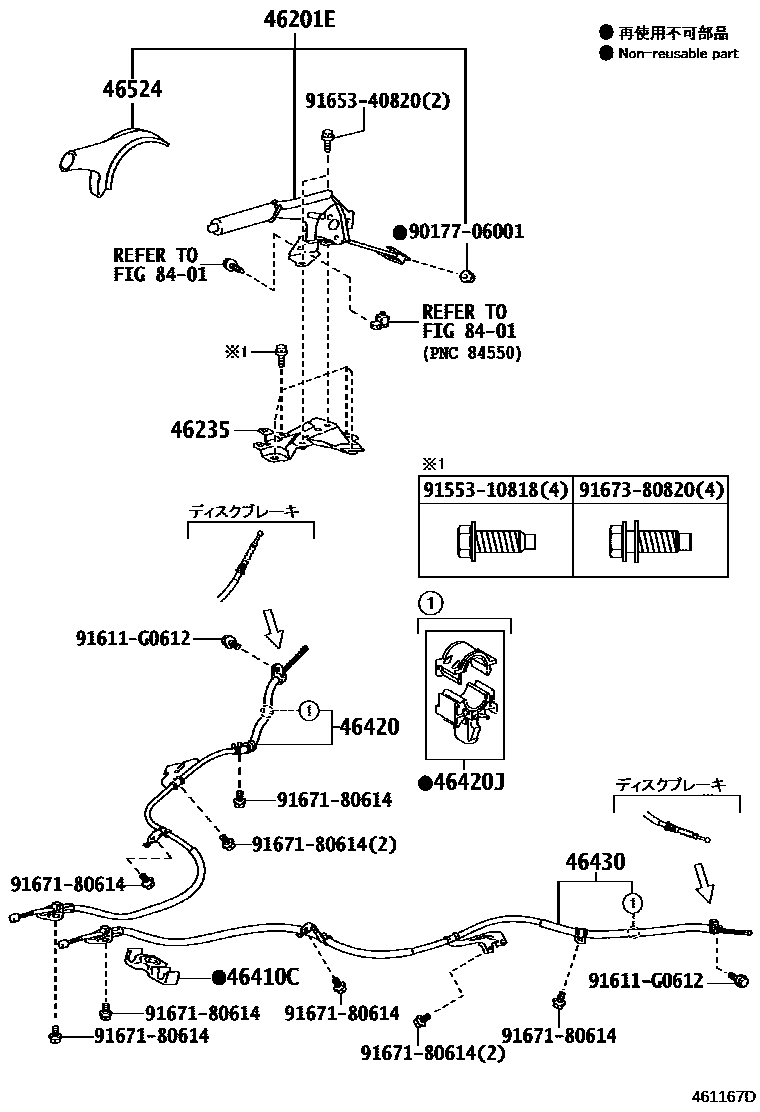

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,4#
46235BRACKET, PARKING BRAKE LEVER SUPPORT
46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)
46420CABLE ASSY, PARKING BRAKE, NO.2
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46524COVER, PARKING BRAKE DUST
main46524-52050-C0iKSP130,NSP13#..JEWL; KSP130,NSP135..F..CBU; NCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NSP130..F..CBU201404-201503
BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main46524-52051-C0iKSP130,NSP13#..F..CBU; KSP130,NSP13#..JEWL; NCP131,NSP13#..(RS,U)..CBU201504-201701
BLACK,TRIM0#,2#,5#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#
main46524-52052-C0iKSP130,NHP130,NSP13#..F..CBU; KSP130,NHP130,NSP13#..JEWL; NCP131,NHP130..GRS; NHP130,NSP13#..U..CBU201802
BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
8401SWITCH & RELAY & COMPUTER
9017706001
main90177-06001
9155310818
main91553-10818
91611G0612
main91611-G0612
9165340820
main91653-40820
9167180614
main91671-80614
9167380820
main91673-80820
14 parts on this diagram · 3 diagrams in section
