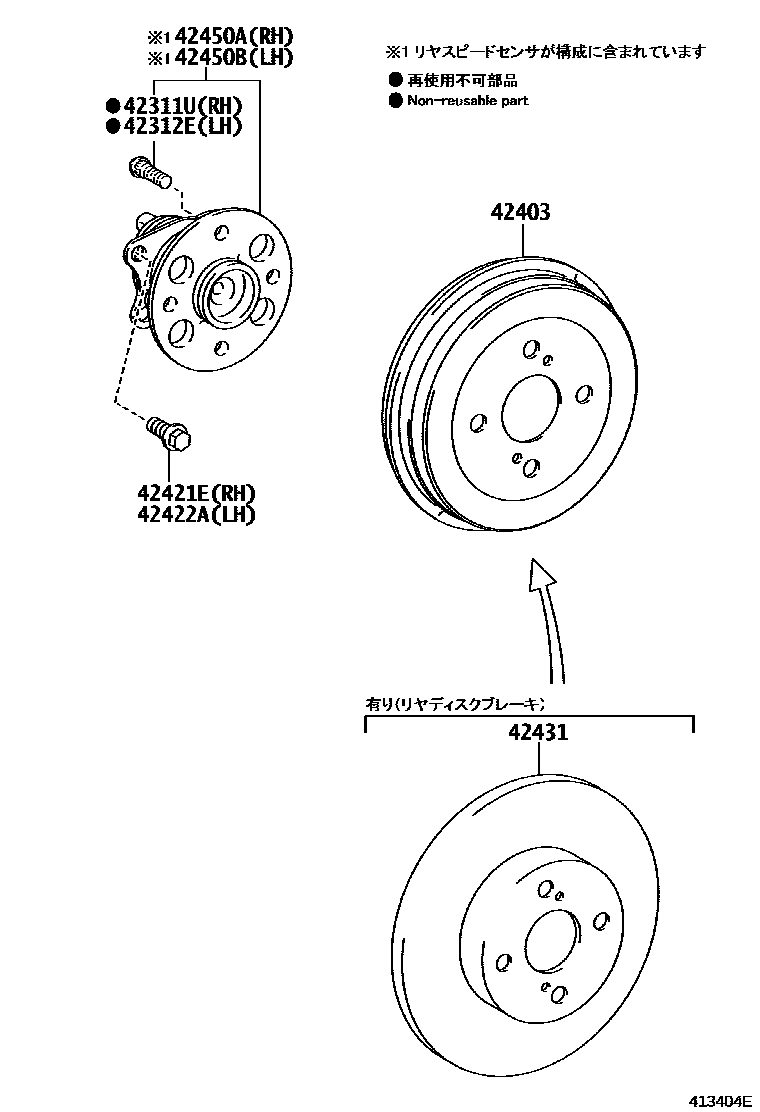

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1RH 0004 1LH 0005 1GRMN

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iKSP130,NCP131,NSP13#..CBU201012-201404

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iKSP130,NCP131,NSP13#..CBU201012-201404

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52070×2iKSP130,NSP130..CBU201205-201404

main42431-52090×2iNHP130..CBU201701

main42431-74010×2iKSP130,NSP130..CBU201012-201205

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iKSP130,NCP131,NSP130..CBU201404-201701

main90105-12351×4iNSP135..CBU201404-201701

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iKSP130,NCP131,NSP130..CBU201012-201404

main90105-12351×4iNSP135..CBU201012-201404

42431DISC, REAR

main42431-52080×2iNCP131..RS201012-201404

main42431-12310×2iNCP131..5F201309-201402

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-52060iNSP135..CBU201701

main42450-52060iKSP130,NSP130..CBU201205-201404

main42450-52061iKSP130,NCP131,NHP130,NSP130..CBU201701

main42450-52070iKSP130,NSP130..CBU201012-201205

main42450-52090iNCP131..5F201309-201402

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-52060iNSP135..CBU201701

main42450-52060iKSP130,NSP130..CBU201205-201404

main42450-52061iKSP130,NCP131,NHP130,NSP130..CBU201701

main42450-52070iKSP130,NSP130..CBU201012-201205

main42450-52090iNCP131..5F201309-201402

8 parts on this diagram · 5 diagrams in section
