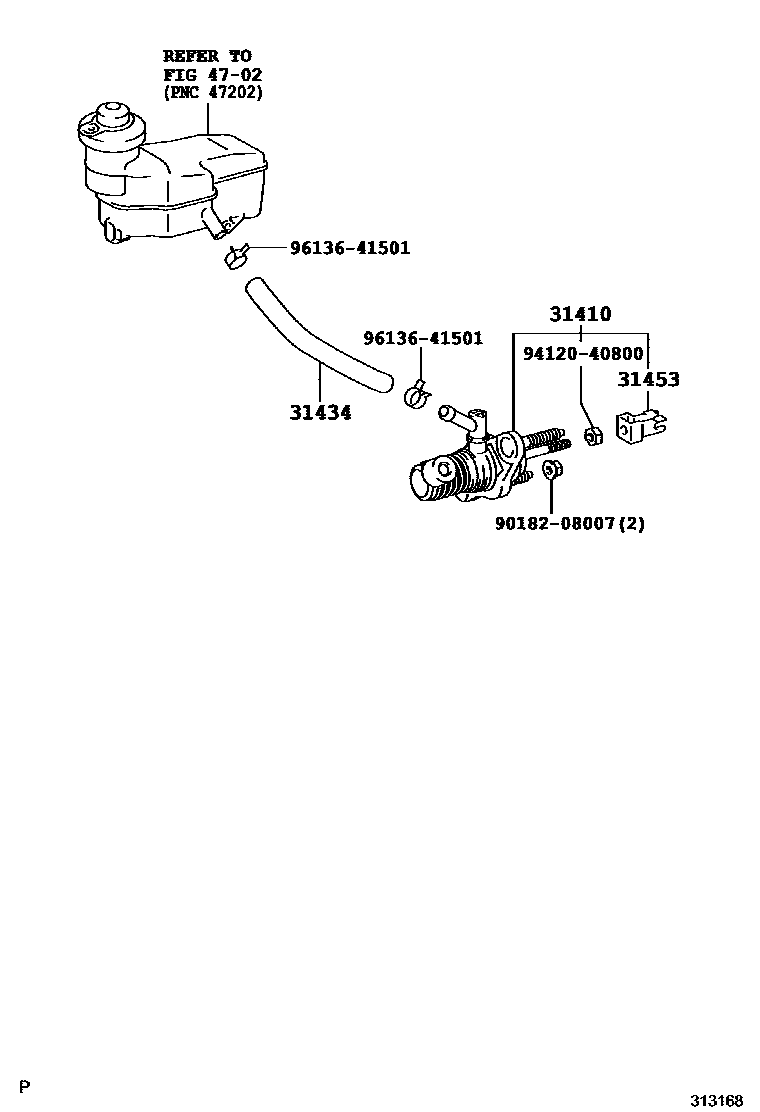

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-52050iNCP131..5F201012-201404

31434TUBE, CLUTCH RESERVOIR

main31434-52220iNCP131..5F201012-201404

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-52010iNCP131..5F201012-201404

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9018208007

main90182-08007

9412040800

main94120-40800

9613641501

main96136-41501

7 parts on this diagram · 1 diagram in section
