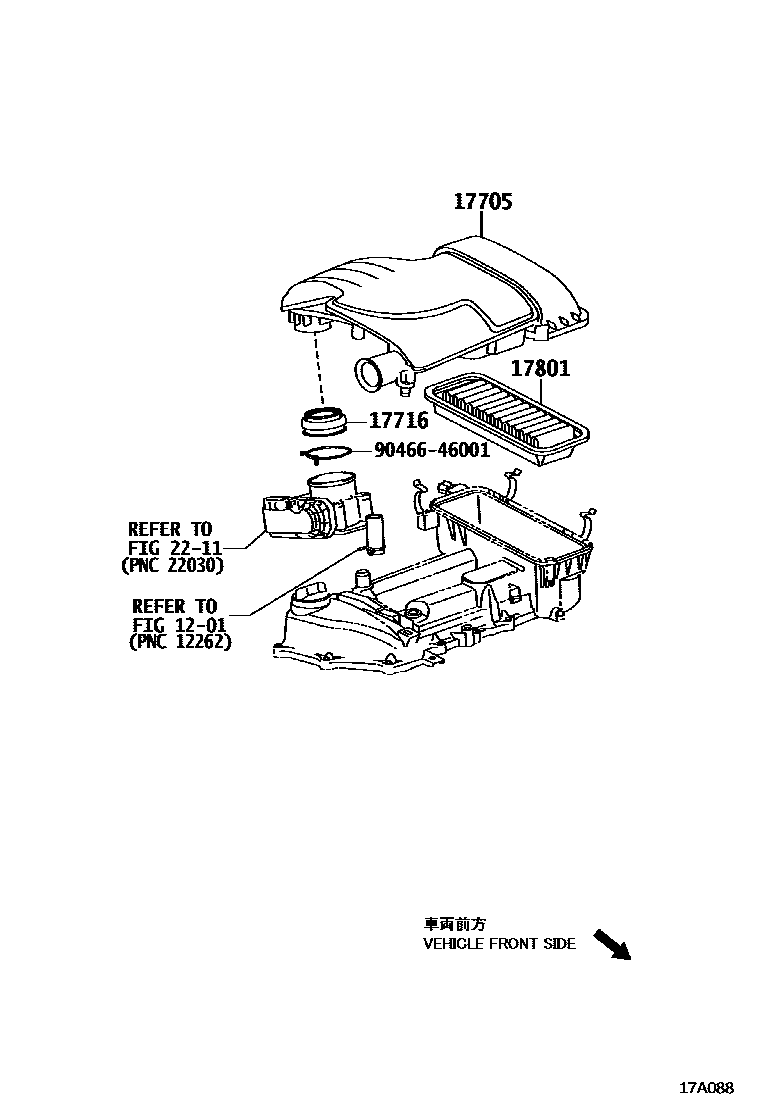

AIR CLEANER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1GRMN 0009 1GRMN 0010 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17705CAP SUB-ASSY, AIR CLEANER

main17705-21090i1NZFE..NCP131201709

main17705-21170i1NZFXE..NHP130..CBU201701

main17705-40110i1KRFE..KSP130..CBU201012-201404

main17705-40130i1KRFE..KSP130..CBU201701

main17705-47101i1NRFE..NSP13#..CBU201012-201103

main17705-47102i1NRFE..NSP135..CBU201404-201701

main17705-47130i1NRFKE..NSP130201404-201701

17716SUPPORT,AIR CLEANER CAP

main17716-40040i1KRFE..KSP130..CBU201012-201404

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21030i1NRFE..NSP13#..CBU201012-201404

main17801-21050i1NZFE..NCP131201012-201404

main17801-21060i1KRFE..KSP130..CBU201404-201701

main17801-23030i1KRFE..KSP130..CBU201012-201404

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9046646001

main90466-46001

6 parts on this diagram · 9 diagrams in section
