WATER PUMP

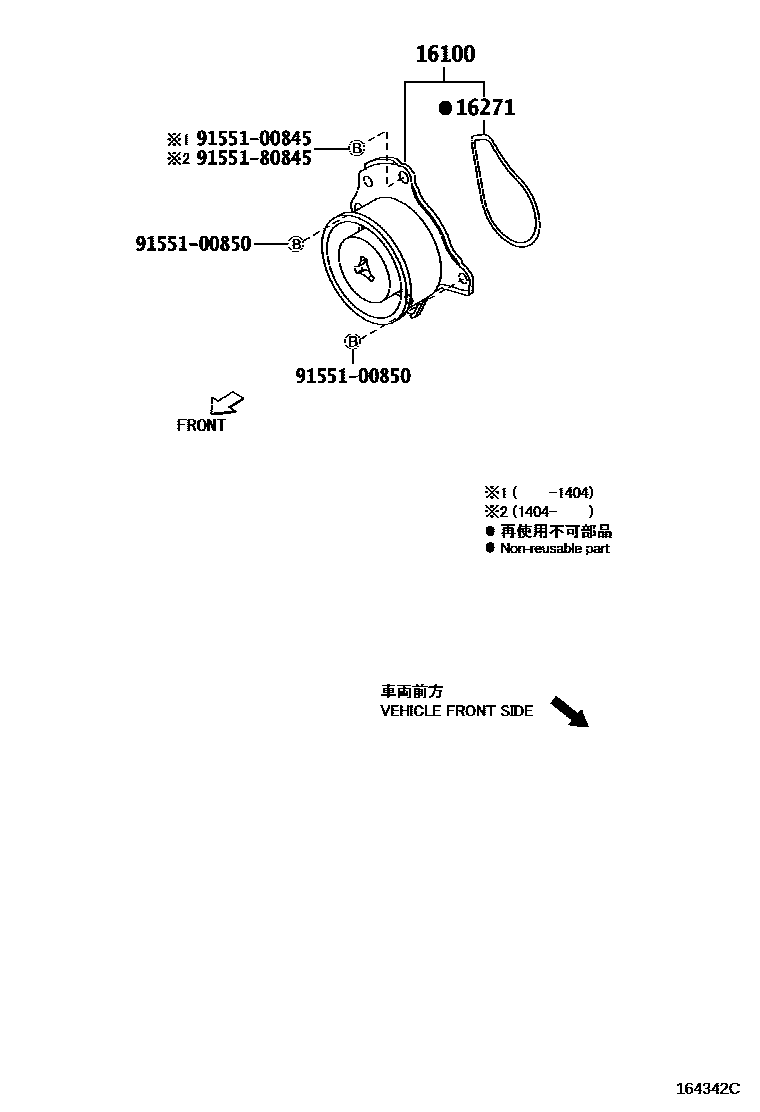

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-29156i201012-201111

main16100-29157i201709-201812

main16100-29158i201812-202001

main16100-80004i201012-201308

main16100-80007i201012-201404

main16100-80010i201308-201404

main16100-80012i201701-201901

main16100-80013i201503-201701

main16100-80015i201902-202001

main161A0-39035i201701-202001

16271GASKET, WATER PUMP

main16271-0Y030i201503-201701

main16271-21020i201012-201111

main16271-21021i201709-202001

main16271-37020i201701-202001

main16271-40020i201012-201404

main16271-40030i201404-201701

main16271-47031i201701-202001

9155100845

main91551-00845

9155100850

main91551-00850

9155180845

main91551-80845

5 parts on this diagram · 6 diagrams in section
