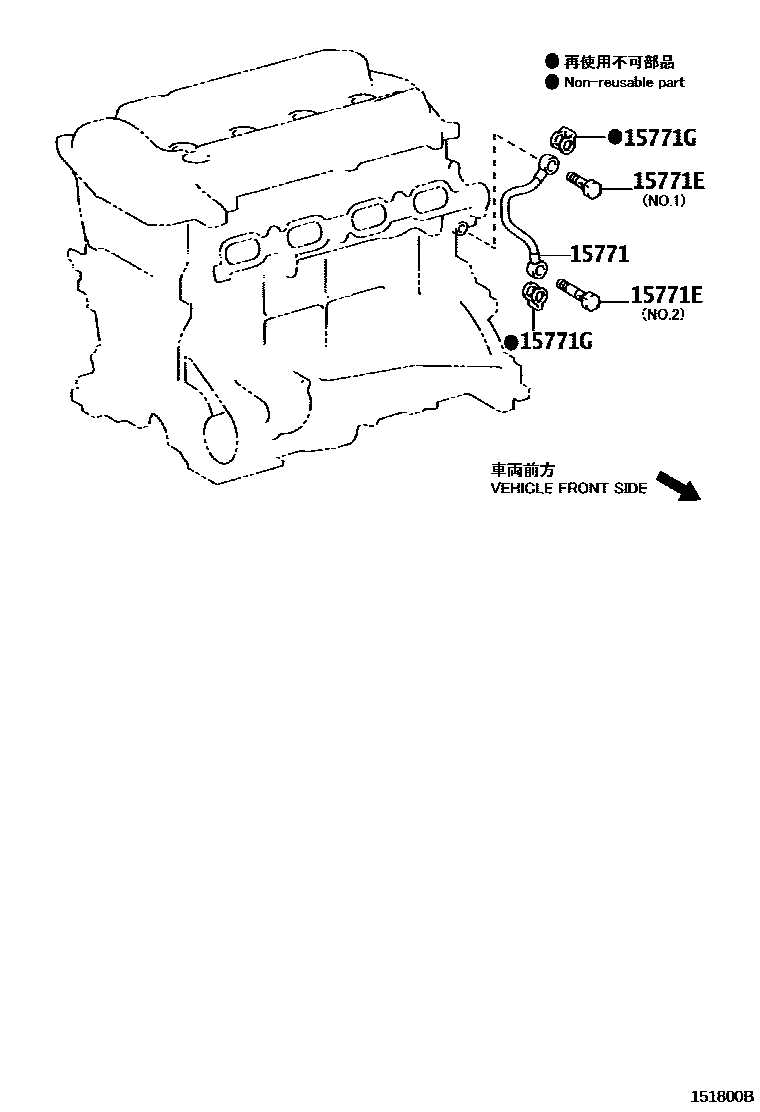

Toyota VITZ — ENGINE OIL COOLER

15771PIPE, OIL, NO.1

15771EBOLT, UNION(FOR OIL PIPE)

15771GGASKET

3 parts on this diagram · 2 diagrams in section

ENGINE OIL COOLER for Toyota VITZ

This section contains 14 genuine Toyota parts for the ENGINE OIL COOLER system of the Toyota VITZ. Key components include: OIL FILTER, COOLER ASSY, OIL, BOLT, UNION(FOR OIL COOLER), RING, O(FOR OIL COOLER), PIPE, OIL, NO.1.
