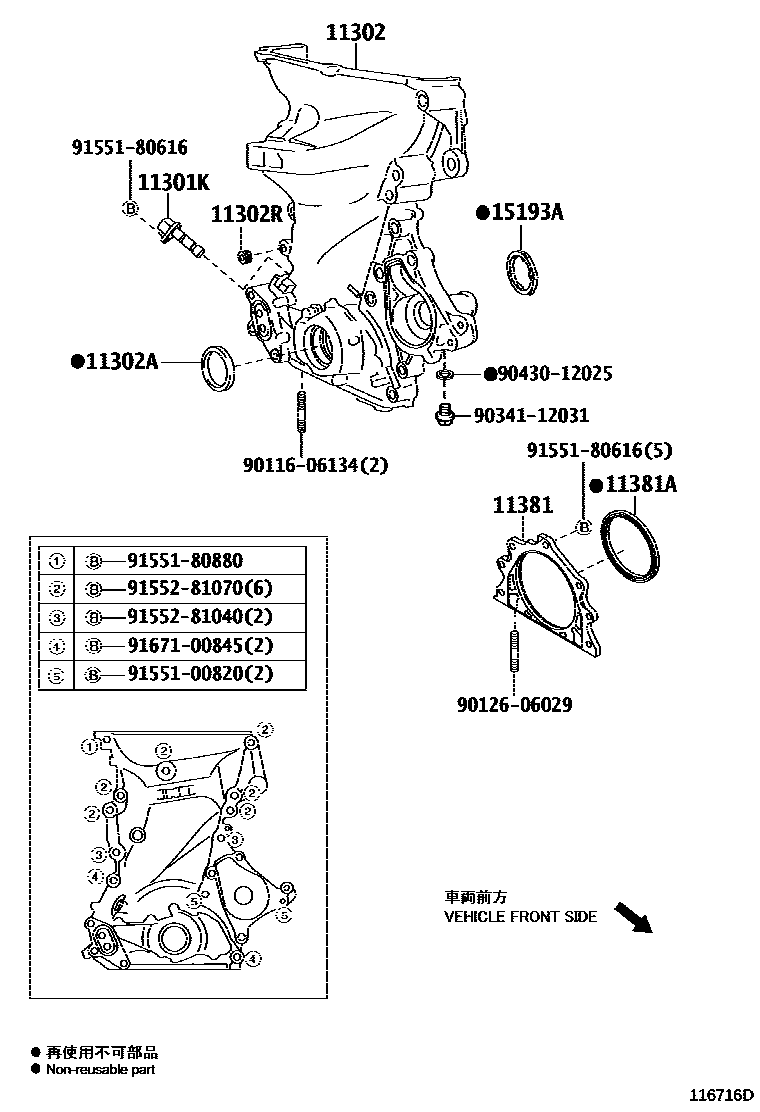

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11301KSENSOR, CRANK POSITION

main90919-05073i1NRFE..NSP13#..CBU201012-201404

main90919-05079i1NRFKE..NSP130201404-201701

main90919-05086supersedes 90919-05062i1KRFE..KSP130..CBU201701

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-40041i1KRFE..KSP130..CBU201012-201404

main11310-40060i1KRFE..KSP130..CBU201701

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25021i1NRFE..NSP13#..CBU201104-201303

main90311-25031i1NRFE..NSP13#..CBU201012-201104

main90311-25032i1NRFE..NSP135..CBU201404-201701

main90311-36007i1NRFKE..NSP130201701-202001

main90311-38092i1KRFE..KSP130..CBU201012-201404

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KRFE..KSP130..CBU201012-201404

11381RETAINER, ENGINE REAR OIL SEAL

main11381-40010i1KRFE..KSP130..CBU201012-201402

main11381-40030i1KRFE..KSP130..CBU201701

11381ASEAL, ENGINE REAR OIL

main90311-73004i1KRFE..KSP130..CBU201012-201212

main90311-73005i1KRFE..KSP130..CBU201212-201404

15193AGASKET, OIL PUMP

main15193-40010i1KRFE..KSP130..CBU201012-201404

9011606134

main90116-06134

9012606029

main90126-06029

9034112031

main90341-12031

9043012025

main90430-12025

9155100820

main91551-00820

9155180616

main91551-80616

9155180880

main91551-80880

9155281040

main91552-81040

9155281070

main91552-81070

9167100845

main91671-00845

17 parts on this diagram · 5 diagrams in section
