ENGINE OVERHAUL GASKET KIT

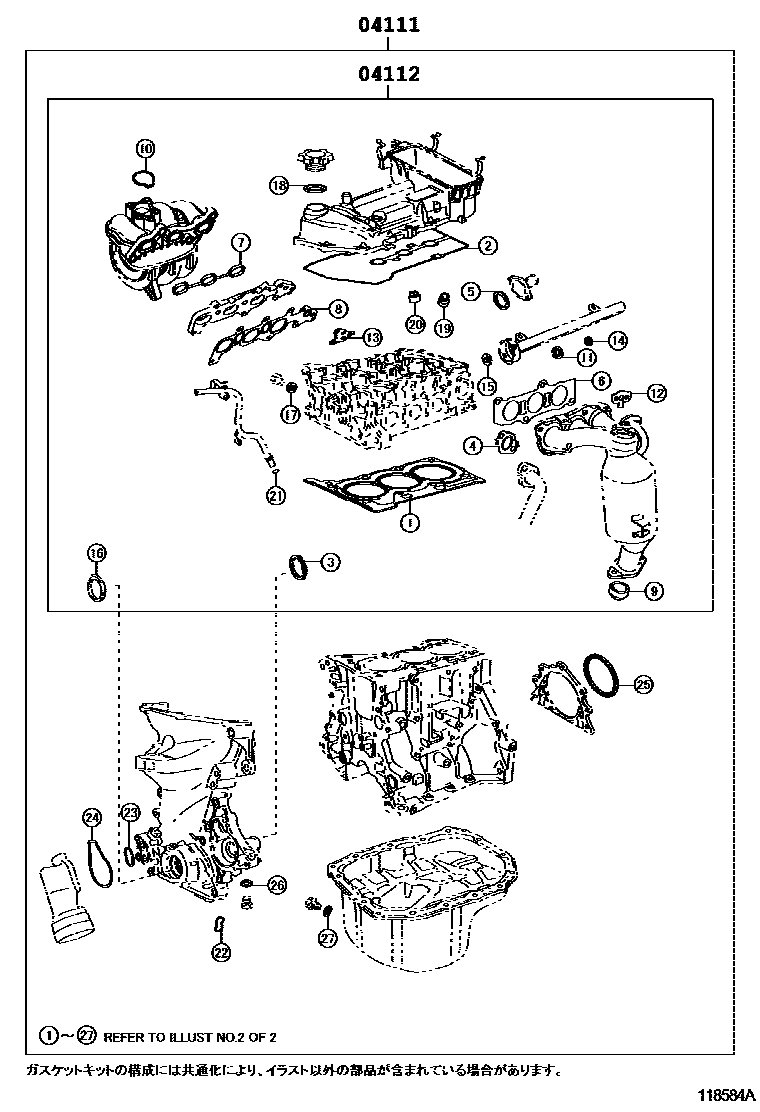

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21243i201012-201107
sub04111-21244
main04111-21244i201107-201111
sub04111-21245
main04111-21245i201111-201201
sub04111-21246
main04111-21246i201201-201204
sub04111-21247
main04111-21247i201204-201311
sub04111-21248
main04111-21248i201311-201604
sub04111-21249
main04111-21249i201604-201701
main04111-21382i201701
main04111-40073i201012-201402
sub04111-40074
main04111-40074i201402-201403
sub04111-40075
main04111-40121i201404-201809
sub04111-40123
main04111-40123i201810
main04111-40140i201403-201404
sub04111-40141
main04111-47130i201012-201111
sub04111-47131
main04111-47131i201111-201205
sub04111-47132
main04111-47132i201205-201206
sub04111-47133
main04111-47133i201206-201303
sub04111-47134
main04111-47134i201303-201311
main04111-47160i201404-201503
main04111-47240i201311-201701
main04111-47250i201503-201701
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21242i201012-201107
sub04112-21243
main04112-21243i201107-201111
sub04112-21244
main04112-21244i201111-201204
sub04112-21245
main04112-21245i201204-201311
sub04112-21246
main04112-21246i201311-201604
sub04112-21247
main04112-21247i201604-201701
main04112-21380i201701
main04112-40033i201012-201402
sub04112-40034
main04112-40034i201402-201403
sub04112-40035
main04112-40071i201404-201809
sub04112-40073
main04112-40073i201810
main04112-40090i201403-201404
sub04112-40091
main04112-47080i201012-201111
sub04112-47081
main04112-47081i201111-201205
sub04112-47082
main04112-47082i201205-201206
sub04112-47083
main04112-47083i201206-201311
main04112-47110i201404-201503
main04112-47150i201311-201903
sub04112-47151
main04112-47151i201903
main04112-47160i201503-201701

2 parts on this diagram · 17 diagrams in section
