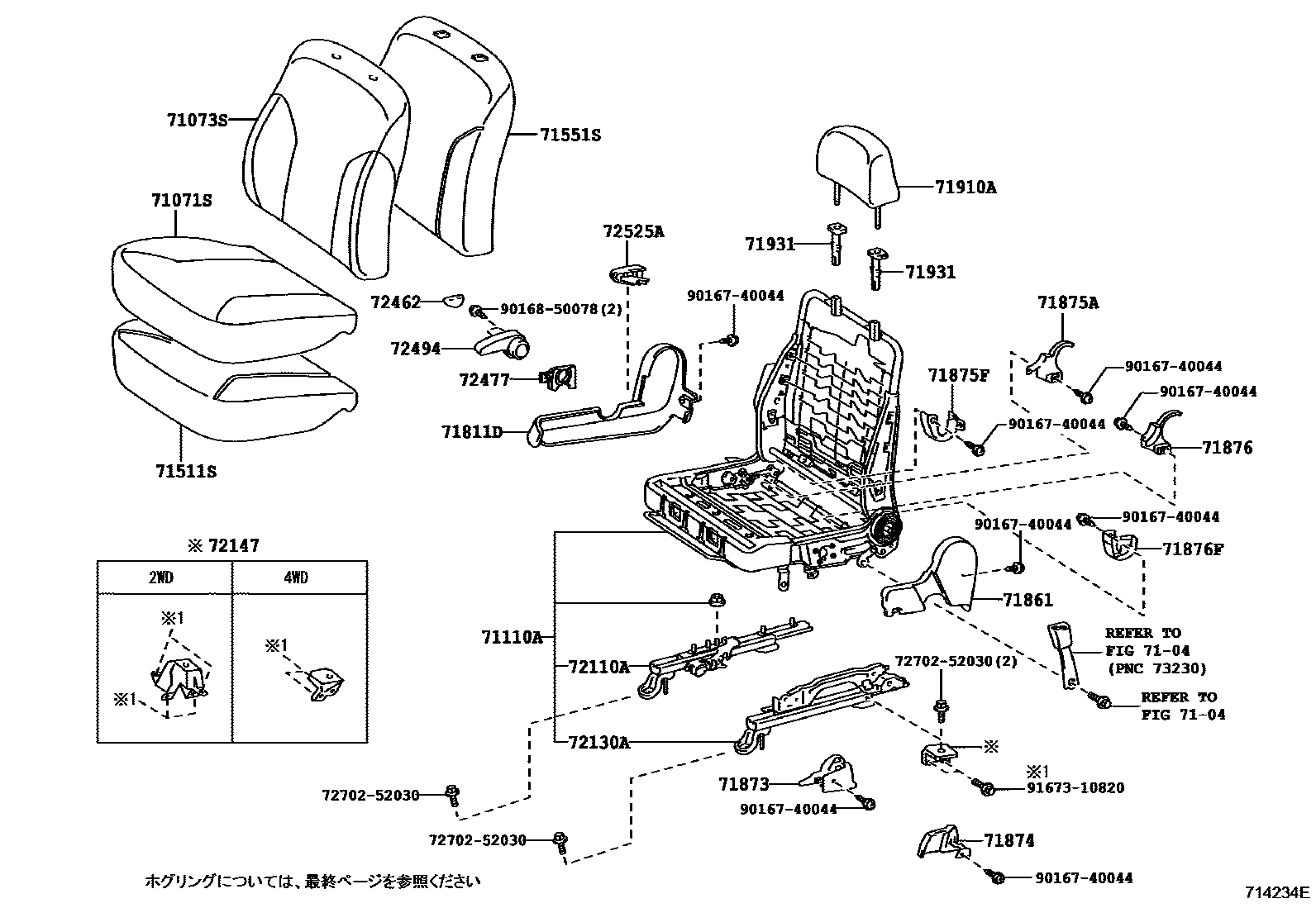

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-52C60-B1iKSP90,NCP9#,SCP90..U200808-201012

DK. GRAY,TRIM1#

main71071-52C60-E2iKSP90,NCP9#,SCP90..U200708-200808

GREGE,TRIM4#

main71071-52C70-E0iNCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#

main71071-52C71-E1iNCP9#,SCP90..ILL201010-201012

GREGE,TRIM4#

main71071-52B80-E1supersedes 71071-52B70-E1iKSP90,NCP95,SCP90..ILL200512-200708

main71071-52E10-E0iKSP90,NCP95,SCP90..F200902-201008

main71071-52E20-E0iKSP90,NCP95,SCP90..F200902-201008

main71071-52E30-E0iKSP90,NCP95,SCP90..F200902-201008

main71071-52F30-E0iKSP90,NCP95,SCP90..F200908-201008

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-52E80-B1iKSP90,NCP9#,SCP90..U200808-201012

DK. GRAY,TRIM1#

main71073-52E80-E2iKSP90,NCP9#,SCP90..U200808-201012

GREGE,TRIM4#

main71073-52E90-E0iNCP9#,SCP90..ILL200808-201009

GREGE,TRIM4#

main71073-52E91-E1iNCP9#,SCP90..ILL201010-201012

GREGE,TRIM4#

main71073-52D70-E1supersedes 71073-52D60-E1iKSP90,NCP95,SCP90..ILL200512-200708

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-52210iNCP91..RS200501-200704

main71110-52350iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200704

main71110-52660iKSP90,NCP95,SCP90..B,F200708-200808

main71110-52661iKSP90,NCP95,SCP90..B,F201002-201012

main71110-52670iNCP91,SCP90..RS200708-200808

main71110-52671iNCP91,SCP90..RS201002-201012

main71110-52680iKSP90,NCP9#,SCP90..ILL,U200708-200808

main71110-52681iNCP95..ILL;KSP90,NCP91,SCP90..ILL,U201002-201012

main71110-52480iKSP90,NCP95,SCP90..ILL200512-200704

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-52460iKSP90,NCP95,SCP90..ILL200512-200708

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-52500iKSP90,NCP95,SCP90..ILL200512-200708

main71551-52510iKSP90,NCP9#,SCP90..ILL,U200708-200808

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52210-B0iNCP91,SCP90..RS200708-200809

DK.GRAY,TRIM1#

main71811-52210-E0iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#; GREGE,TRIM42

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52200-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main71861-52200-E0iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#; GREGE,TRIM42

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-52090-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main71873-52090-E0iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#; GREGE,TRIM42

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-52110-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main71874-52110-E1iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#; GREGE,TRIM42

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52090-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main71875-52090-E1iKSP90,NCP9#,SCP90..F,ILL,U200808-201012

GREGE,TRIM4#

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-52170-B0iKSP90,NCP9#,SCP90..B,F,U200708-200808

DK.GRAY,TRIM1#,42

main71875-52170-E0iKSP90,NCP9#,SCP90..F,ILL,U200808-201012

GREGE,TRIM4#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-52090-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main71876-52090-E1iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#; GREGE,TRIM42

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-52160-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main71876-52160-E0iKSP90,NCP9#,SCP90..F,ILL,U200808-201012

GREGE,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-52510-C0×2iKSP90,NCP9#,SCP90..B,F,X; KSP90,NCP95,SCP90..F200501-200708

main71910-52510-E0×2iKSP90,NCP9#,SCP90..B,F,X; KSP90,NCP95,SCP90..F200508-200708

main71910-52520-C0×2iNCP91..RS200501-200708

BLACK,TRIM1#

main71910-52530-C0×2iNCP95,SCP90..U200501-200708

BLACK,TRIM1#

main71910-52530-E0×2iNCP95,SCP90..U200512-200603

GREGE,TRIM4#

main71910-52530-E1×2iNCP95,SCP90..U200603-200708

GREGE,TRIM4#

main71910-52620-E1×2iKSP90,NCP95,SCP90..ILL200512-200708

GRAGE,TRIM4#

main71910-52660-C0×2iNCP91,SCP90..RS200708-200809

BLACK,TRIM1#

main71910-52670-C0×2iKSP90,NCP95,SCP90..B,F; KSP90,NCP95,SCP90..F200708-200808

main71910-52670-E1×2iKSP90..B200808-200908

GREGE,TRIM4#

main71910-52671-C0×2iKSP90,NCP95,SCP90..B,F; KSP90,NCP95,SCP90..F; NCP95,SCP90..F201010-201012

main71910-52760-B0×2iKSP90,NCP9#,SCP90..U200708-200808

DK. GRAY,TRIM1#

main71910-52760-E0×2iKSP90,NCP9#,SCP90..U200808-201012

GREGE,TRIM4#

main71910-52770-E0×2iNCP9#,SCP90..ILL200708-200808

GRAGE,TRIM4#

main71910-52771-E0×2iNCP9#,SCP90..ILL201010-201012

GRAGE,TRIM4#

main71910-52671-E1iKSP90,NCP95,SCP90..F; NCP95,SCP90..F201010-201012

main71910-52B70-E0×2iKSP90,NCP95,SCP90..F200902-201008

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0×2iKSP90,NCP9#,SCP90..B,F,RS,U; KSP90,NCP95,SCP90..F200808-201012

main71930-44020-E0×2iKSP90,NCP9#,SCP90..B,F,ILL,U,X; KSP90,NCP95,SCP90..F200705-200708

main71930-47010-B2×2iKSP90,NCP9#,SCP90..B,F,RS,U,X; KSP90,NCP95,SCP90..F200501-200704

main71930-47010-E3×2iKSP90,NCP9#,SCP90..B,F,ILL,X; KSP90,NCP95,SCP90..F200508-200704

main71931-47010-B2×2iKSP90,NCP9#,SCP90..B,F,RS,U,X; KSP90,NCP95,SCP90..F200501-200708

main71931-47010-E4×2iKSP90,NCP9#,SCP90..B,F,ILL,X; KSP90,NCP95,SCP90..F200508-200708

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-52020iKSP90,NCP9#,SCP90200708-200808

main72110-52021iKSP90,NCP9#,SCP90201002-201012

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-52110iKSP90,NCP9#,SCP90200808-201001

main72130-52112iKSP90,NCP9#,SCP90201002-201012

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-52020iKSP90,NCP91,SCP90..CVFC200808

main72147-52030iNCP95200501-200708

72462COVER, VERTICAL ADJUSTER RH

main72462-58010-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main72462-58010-E3iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#; GREGE,TRIM42

72477SPACER, VERTICAL ADJUSTER

main72477-58010iKSP90,NCP9#,SCP90200708-200809

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-52020-B0iNCP91,SCP90..RS200708-200809

DK.GRAY,TRIM1#

main72494-52020-E1iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#; GREGE,TRIM42

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-58030-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main72525-58030-E3iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

GREGE,TRIM4#; GREGE,TRIM42

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

9016740044

main90167-40044

9016850078

main90168-50078

9167310820

main91673-10820

27 parts on this diagram · 15 diagrams in section
