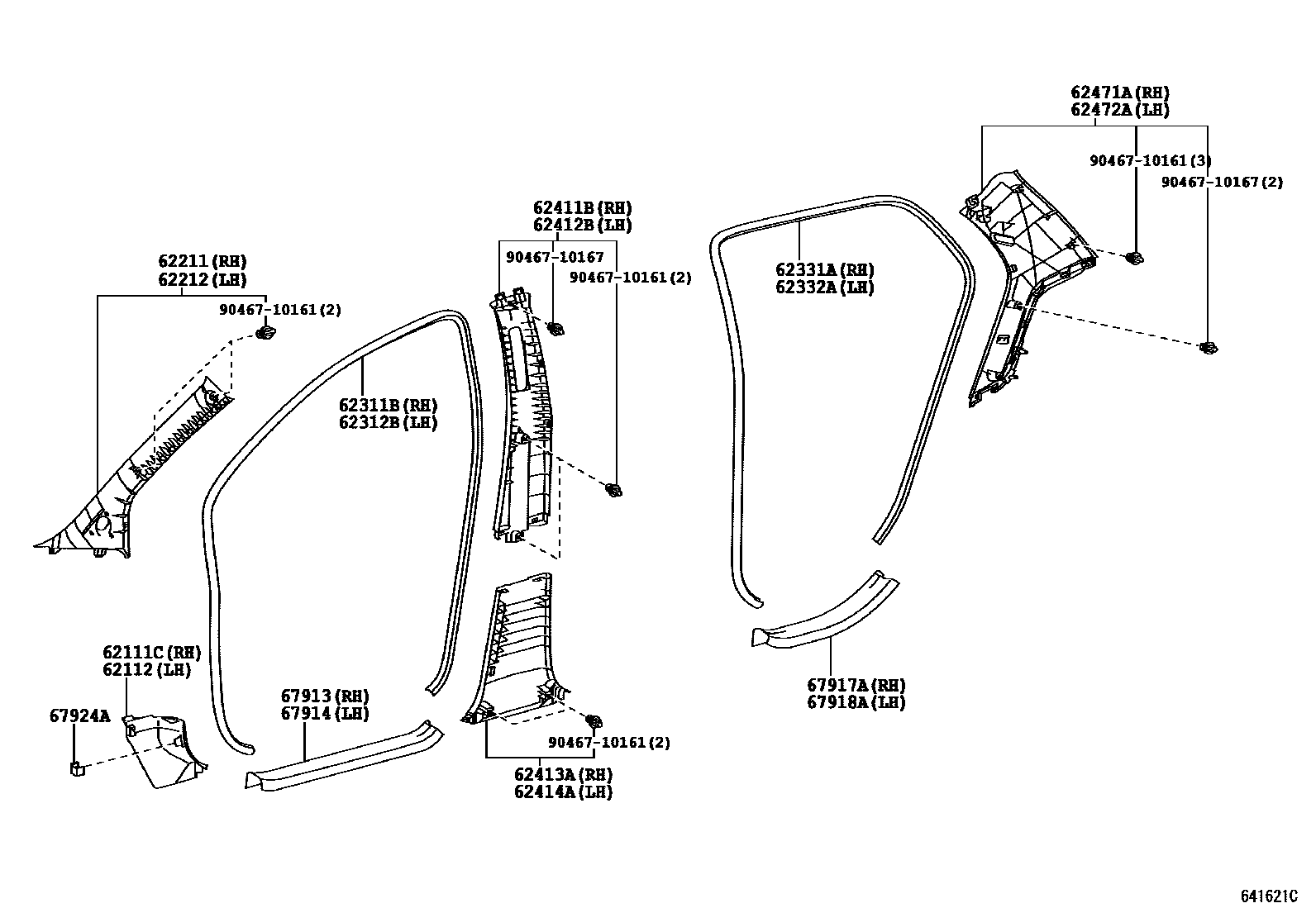

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1��(SRS ��������� �������) 0002 1��(SRS ��������� �������)

62111CBOARD, COWL SIDE TRIM, RH

main62111-52120-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main62111-52120-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

DK.GRAY,TRIM1#

main62111-52120-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main62111-52120-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-52150-B0iNCP91..RS200501-201012

DK.GRAY,TRIM1#

sub62112-52150

main62112-52150-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub62112-52150

main62112-52150-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub62112-52150

main62112-52150-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

sub62112-52150

62211GARNISH, FRONT PILLAR, RH

main62211-52120-B0iNCP91..X200501-200708

GRAY,TRIM1#

main62211-52120-B1iNCP91..RS200501-200708

DK.GRAY,TRIM1#

main62211-52120-E0iNCP91..X200508-200708

GREGE,TRIM4#

main62211-52130-B0iKSP90..B200708-201012

GRAY,TRIM1#

main62211-52130-B0iKSP90..B200708-200808

main62211-52130-E0iKSP90..B200808-201008

main62211-52130-E0iKSP90..B200708-201008

GREGE,TRIM4#

main62211-52130-E0iKSP90..B200708-200808

main62211-52140-B0iNCP91..X200510-200708

GRAY,TRIM1#

main62211-52140-E0iNCP91..X200510-200708

GREGE,TRIM4#

main62211-52150-B0iKSP90,NCP9#,SCP90..F,U200501-201012

GRAY,TRIM1#

main62211-52150-B1iNCP91,SCP90..RS200708-201012

DK.GRAY,TRIM1#

main62211-52150-E0iKSP90,NCP9#,SCP90..F,ILL,U200512-201012

GREGE,TRIM4#

main62211-52150-E0iNCP95,SCP90..U200512-200708

62212GARNISH, FRONT PILLAR, LH

main62212-52120-B0iKSP90,NCP95,SCP90..B,F200501-200708

GRAY,TRIM1#

main62212-52120-B1iNCP91..RS200501-200708

DK.GRAY,TRIM1#

main62212-52120-E0iKSP90,NCP95,SCP90..B,F,ILL200508-200708

GREGE,TRIM4#

main62212-52130-B0iKSP90..B200708-201012

GRAY,TRIM1#

main62212-52130-B0iKSP90..B200708-200808

main62212-52130-E0iKSP90..F200708-200808

main62212-52130-E0iKSP90..F200708-201008

GREGE,TRIM4#

main62212-52130-E0iKSP90..F200808-201008

main62212-52140-B0iNCP91..X200510-200708

GRAY,TRIM1#

main62212-52140-E0iNCP91..X200510-200708

GREGE,TRIM4#

main62212-52150-B0iKSP90,NCP9#,SCP90..F,U200501-201012

GRAY,TRIM1#

main62212-52150-B1iNCP91,SCP90..RS200708-201012

DK.GRAY,TRIM1#

main62212-52150-E0iNCP95,SCP90..U200512-201012

GREGE,TRIM4#

main62212-52150-E0iNCP95,SCP90..U200512-200708

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52120-B0iNCP91..RS200501-201012

DK.GRAY,TRIM1#

main62311-52120-B1iKSP90,NCP9#,SCP90..B,F,U200507-201012

GRAY,TRIM1#

main62311-52120-B1iKSP90,NCP9#,SCP90..B,F,U,X200501-200507

GRAY,TRIM18

main62311-52120-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200507-201012

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52070-B0iNCP91..RS200501-201012

DK.GRAY,TRIM1#

main62312-52070-B1iKSP90,NCP9#,SCP90..B,F,U200507-201012

GRAY,TRIM1#

main62312-52070-B1iKSP90,NCP9#,SCP90..B,F,U,X200501-200507

GRAY,TRIM18

main62312-52070-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200507-201012

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-52030-B0iNCP91,SCP90..RS200501-201012

DK.GRAY,TRIM1#

main62331-52030-B1iKSP90,NCP9#,SCP90..B,F,U,X200501-200507

GRAY,TRIM18

main62331-52030-B1iKSP90,NCP9#,SCP90..B,F,U,X200507-201012

GRAY,TRIM1#

main62331-52030-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200507-201012

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-52040-B0iNCP91,SCP90..RS200501-201012

DK.GRAY,TRIM1#

main62332-52040-B1iKSP90,NCP9#,SCP90..B,F,U,X200501-200507

GRAY,TRIM18

main62332-52040-B1iKSP90,NCP9#,SCP90..B,F,U200507-201012

GRAY,TRIM1#

main62332-52040-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200507-201012

GREGE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52120-B0iKSP90,NCP9#,SCP90..B,F,U200501-201012

GRAY,TRIM1#

main62411-52120-B1iNCP91..RS200501-201012

DK.GRAY,TRIM1#

main62411-52120-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200508-201012

GREGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52120-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

GRAY,TRIM1#

main62412-52120-B1iNCP91,SCP90..RS200501-201012

DK.GRAY,TRIM1#

main62412-52120-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200508-201012

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-52090-B0iKSP90,NCP9#,SCP90..B,F,RS,U200501-201012

DK.GRAY,TRIM1#

main62413-52090-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main62413-52090-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main62413-52090-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-52090-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

DK.GRAY,TRIM1#

main62414-52090-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#,4#

main62414-52090-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main62414-52090-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52150-B0iKSP90,NCP9#,SCP90..B,F,X200501-200708

GRAY,TRIM1#

main62471-52150-E0iKSP90,NCP9#,SCP90..B,F,X200508-200708

GREGE,TRIM4#

main62471-52160-B0iKSP90,NCP9#,SCP90..B,F,X200501-200708

main62471-52160-B0iNCP95,SCP90..U200501-201012

GRAY,TRIM1#

main62471-52160-B1iNCP91,SCP90..RS200708-201012

DK.GRAY,TRIM1#

main62471-52160-E0iKSP90,NCP9#,SCP90..B,F,ILL,X200508-201012

GREGE,TRIM4#

main62471-52160-E0iNCP95,SCP90..U200508-200708

main62471-52170-B1iNCP91..RS200501-200708

DK.GRAY,TRIM1#

main62471-52170-E0iKSP90,NCP95,SCP90..ILL200512-200708

GREGE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52180-B0iKSP90,NCP9#,SCP90..B,F,X200501-200708

GRAY,TRIM1#

main62472-52180-E0iKSP90,NCP9#,SCP90..B,F,X200508-200708

GREGE,TRIM4#

main62472-52190-B0iKSP90,NCP9#,SCP90..B,F,U200501-201012

GRAY,TRIM1#

main62472-52190-B0iKSP90,NCP9#,SCP90..B,F,X200501-200708

main62472-52190-B1iNCP91,SCP90..RS200708-201012

DK.GRAY,TRIM1#

main62472-52190-E0iKSP90,NCP9#,SCP90..B,F,ILL,X200508-200708

main62472-52190-E0iNCP95,SCP90..U200508-201012

GREGE,TRIM4#

main62472-52200-B1iNCP91..RS200501-200708

DK.GRAY,TRIM1#

main62472-52200-E0iKSP90,NCP95,SCP90..ILL200512-200708

GREGE,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-52120-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

DK.GRAY,TRIM1#

main67913-52120-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#,4#

main67913-52120-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main67913-52120-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-52130-B0iKSP90,NCP9#,SCP90..B,F,RS,U200501-201012

DK.GRAY,TRIM1#

main67914-52130-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main67914-52130-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main67914-52130-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-52140-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

DK.GRAY,TRIM1#

main67917-52140-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#,4#

main67917-52140-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main67917-52140-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-52150-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

DK.GRAY,TRIM1#

main67918-52150-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main67918-52150-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main67918-52150-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140iNCP91,SCP90..RS200501-201012

9046710161

main90467-10161

9046710167

main90467-10167

21 parts on this diagram · 2 diagrams in section
