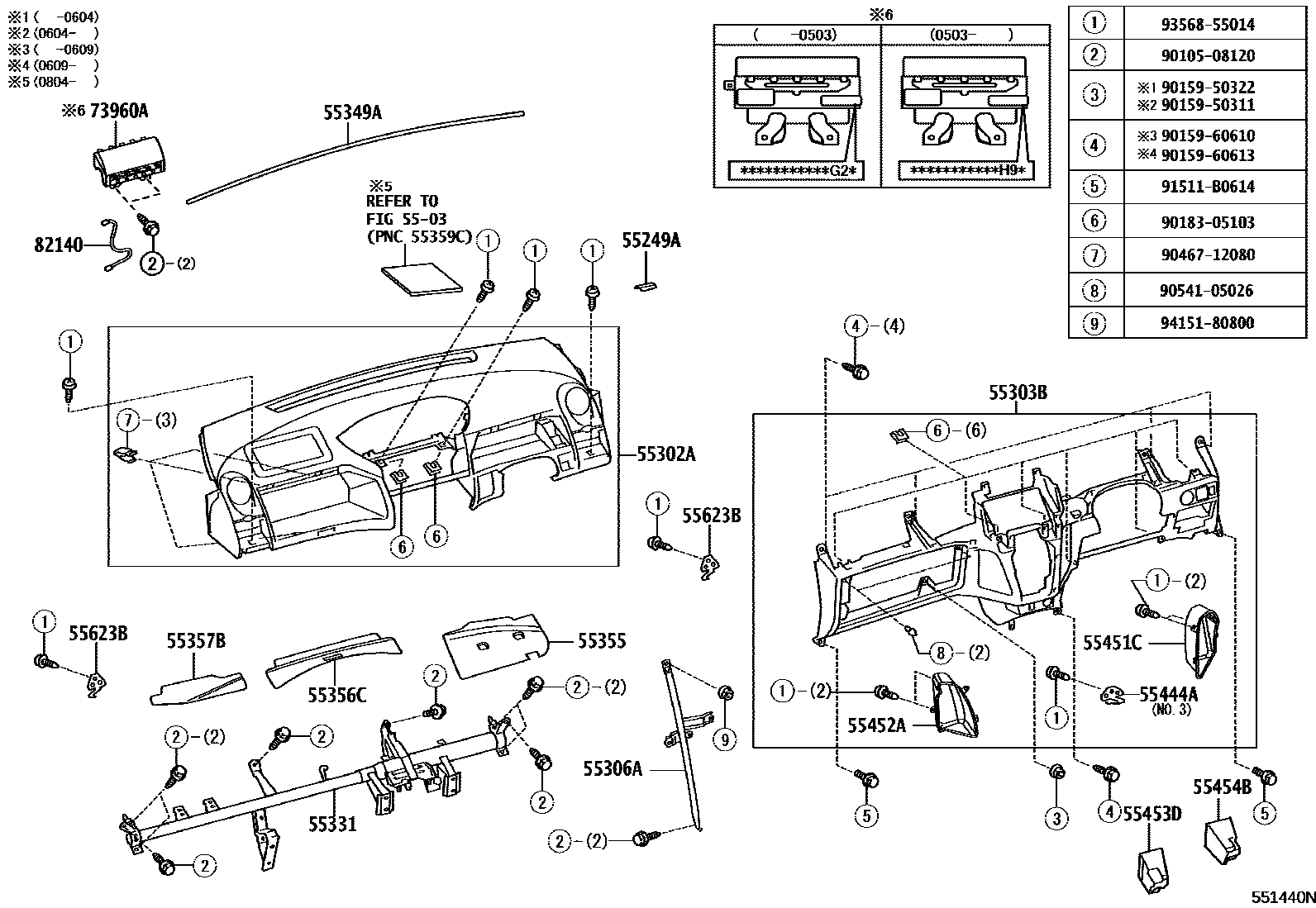

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

55249ASEAL, FRONT PANEL

main55249-52010iNCP9#,SCP90..ATM..(F,RS); NCP9#,SCP90..ILL,U200808-201012

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52030-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55302-52030-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52130-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55303-52130-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

ASH BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52180iKSP90,NCP9#,SCP90200501-200708

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52470iNCP91,SCP90..RS200708-200809

main55330-52471iKSP90,NCP9#,SCP90..ATM200903-201012

55349ACUSHION, INSTRUMENT PANEL

main55349-52060iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52100iKSP90,NCP9#,SCP90..ILL,RS,U200501-200708

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52110iNCP91,SCP90..RS200708-200809

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52080×2iNCP91,SCP90..RS200708-200809

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52230iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

main55444-52250iNCP91..5F200808-201007

main55444-52270iKSP90,NCP9#,SCP90..ATM200808-201012

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-52140-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55451-52140-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

ASH BROWN,TRIM4#

55452ABOX, INSTRUMENT PANEL, NO.2

main55452-52130-B0iKSP90,NCP9#,SCP90..B,F,U,X; NCP91..RS200501-200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55452-52130-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200808-201012

ASH BROWN,TRIM4#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52060iKSP90,NCP9#,SCP90..ATM200808-201012

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52050iKSP90,NCP9#,SCP90..ATM200808-201012

55623BSPRING, INSTRUMENT PANEL CUP HOLDER

main55623-52020×2iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52050iKSP90,NCP9#,SCP90200501-200503

main73960-52100iKSP90,NCP9#,SCP90200503-200708

main73960-52101iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

82140WIRE ASSY, INSTRUMENT PANEL

main82140-52020iNCP91,SCP90..RS200708-200809

9010508120

main90105-08120

9015950311

main90159-50311

9015950322

main90159-50322

9015960610

main90159-60610

9015960613

main90159-60613

9018305103

main90183-05103

9046712080

main90467-12080

9054105026

main90541-05026

91511B0614

main91511-B0614

9356855014

main93568-55014

9415180800

main94151-80800

29 parts on this diagram · 4 diagrams in section
