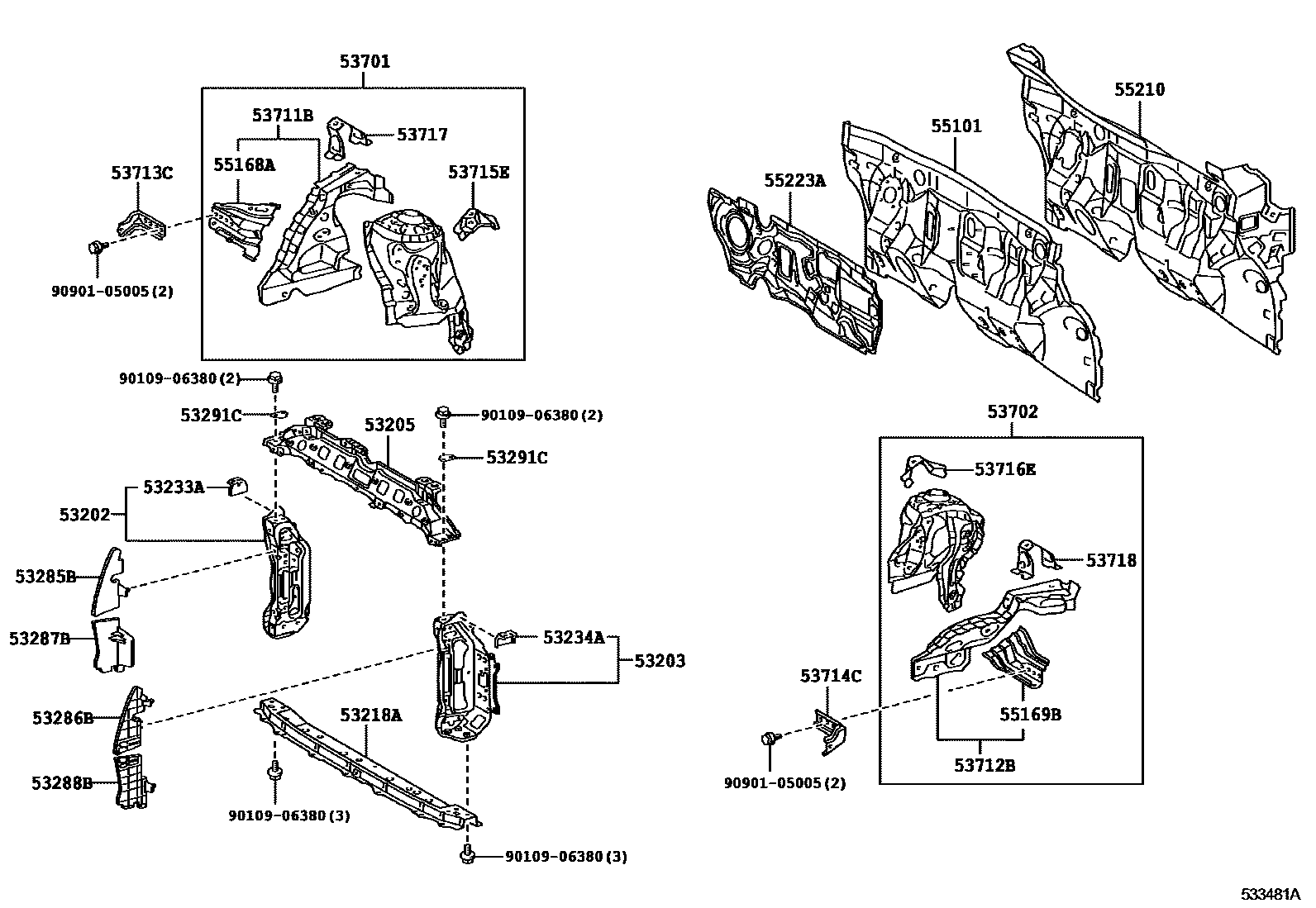

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52901iNCP91,SCP90..RS200501-200809

main53202-52905iKSP90,NCP9#,SCP90200708-201010

main53202-52910iKSP90,NCP9#,SCP90201011-201012

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52901iKSP90,NCP9#,SCP90200501-200809

main53203-52903iKSP90,NCP9#,SCP90200708-201010

main53203-52908iKSP90,NCP9#,SCP90201011-201012

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52090iKSP90,NCP9#,SCP90200501-201012

53218ASUPPORT, RADIATOR, LOWER

main53028-52070iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52010iNCP91,SCP90..RS200501-200809

main53233-52030iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52020iKSP90,NCP9#,SCP90200501-200809

main53234-52040iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52170iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

main53285-52200iNCP91..RS200501-200809

main53285-52280iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

main53285-52300iNCP91,SCP90..RS200809-201012

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52100iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

main53286-52140iNCP91..RS200501-200809

main53286-52220iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

main53286-52240iNCP91,SCP90..RS200809-201012

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52010iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52010iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-52070iKSP90,NCP9#,SCP90200501-201012

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52150iKSP90,NCP9#,SCP90200501-201012

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52150iKSP90,NCP9#,SCP90200501-201012

53711BAPRON, FRONT FENDER, FRONT RH

main53707-52030iNCP91,SCP90..RS200501-201012

53712BAPRON, FRONT FENDER, FRONT LH

main53708-52030iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52010iKSP90,NCP9#,SCP90200501-201012

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52020iKSP90,NCP9#,SCP90200501-201012

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iKSP90,NCP9#,SCP90200501-201012

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iKSP90,NCP9#,SCP90200501-201012

53717PLATE, FENDER APRON, RH

main53717-52080iKSP90,NCP9#,SCP90200501-201012

53718PLATE, FENDER APRON, LH

main53718-52080iNCP91,SCP90..RS200501-201012

55101PANEL SUB-ASSY, DASH

main55101-52520iKSP90,NCP9#,SCP90..ATM200501-200504

main55101-52521iKSP90,NCP9#,SCP90..ATM200505-201012

main55101-52690iNCP91..5F200501-201008

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130iKSP90,NCP9#,SCP90200501-201012

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

55210INSULATOR ASSY, DASH PANEL

main55210-52170iKSP90,NCP9#,SCP90200501-200604

main55210-52171iKSP90,NCP9#,SCP90200605-200908

main55210-52172iKSP90,NCP9#,SCP90200909-201012

55223AINSULATOR, DASH PANEL, OUTER

main55223-52080iKSP90,NCP9#,SCP90200501-200806

main55223-52100iKSP90,NCP9#,SCP90200807-201012

9010906380

main90109-06380

9090105005

main90901-05005

28 parts on this diagram · 2 diagrams in section
