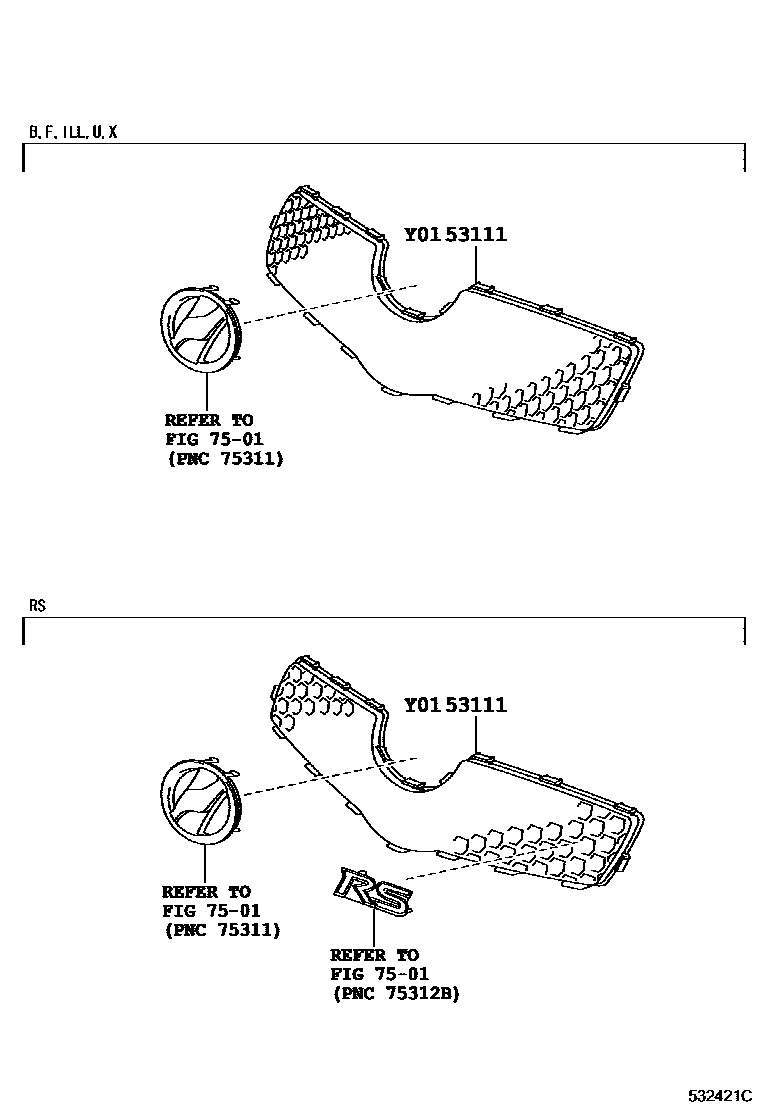

RADIATOR GRILLE

0001 1 0003 1

53111GRILLE, RADIATOR

main53111-52360iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

main53111-52370iNCP91..RS200501-200708

main53111-52480-B0iKSP90,NCP95,SCP90..ILL200512-200708

GRAY,1F8 ,3Q8 ,4S8 ,6S3 ,8T1 ,9AC

main53111-52530iKSP90,NCP9#,SCP90..B,F,U200808-201012

main53111-52540iNCP9#,SCP90..ILL200708-200808

main53111-52610iNCP91,SCP90..RS200809-201012

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

2 parts on this diagram · 2 diagrams in section
