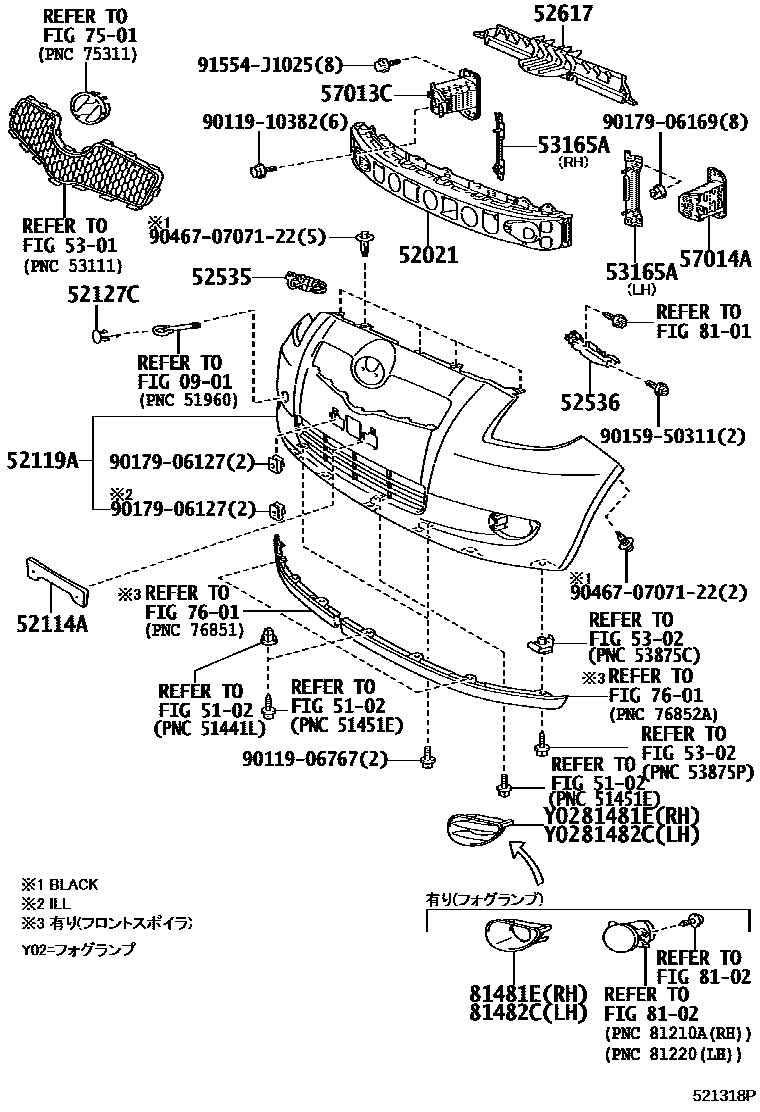

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

0901STANDARD TOOL

→ Go to FIG 09-01

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-52050iNCP91,SCP90..RS200708-200809

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-52020iNCP91..5F200809-201008

main52114-52030iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

52119ACOVER, FRONT BUMPER

main52119-52410-A0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

WHITE,068

main52119-52410-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

SILVER M.M.,1E7

main52119-52410-B1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200512-200708

MEDIUM SILVER ME.,1F8

main52119-52410-C0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

BLACK MC.,209

main52119-52410-D0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

SUPER RED 5,3P0

main52119-52410-D1iKSP90,NCP95,SCP90..ILL200512-200708

DARK RED MC.,3Q8

main52119-52410-D2iKSP90,NCP9#,SCP90..B,F,U,X200507-200708

ROSE ME.OP.,3P3

main52119-52410-E0iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

main52119-52410-E1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

BEIGE PM.,4S8

main52119-52410-G0iKSP90,NCP95,SCP90..ILL200701-200708

DK.GREEN M.M.,6S3

main52119-52410-G1iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

GREEN M.M.,6U1

main52119-52410-G2iKSP90,NCP9#,SCP90..B,F,U,X200512-200708

LT.GREEN ME.,6U0

main52119-52410-J0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.BLUE M.M.,8P4

main52119-52410-J1iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

LT. BLUE M.M.,8S9

main52119-52410-J2iKSP90,NCP9#,SCP90..F,U,X200701-200708

BLUE M.M.,8T0

main52119-52410-J3iKSP90,NCP95,SCP90..ILL200512-200708

GRAYISH BLUE M.M.,8T1

main52119-52410-K0iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

main52119-52420-A0iNCP91..RS200501-200708

WHITE,068

main52119-52420-B0iNCP91..RS200501-200708

MEDIUM SILVER ME.,1F8

main52119-52420-B1iNCP91..RS200701-200708

DK.GRAY M.M.,1F6

main52119-52420-C0iNCP91,SCP90..RS200708-200809

BLACK MC.,209

main52119-52420-D0iNCP91,SCP90..RS200708-200809

SUPER RED 5,3P0

main52119-52420-G0iNCP91..RS200501-200512

GREEN M.M.,6U1

main52119-52420-J0iNCP91..RS200512-200708

BLUE M.M.,8T0

main52119-52600-A0iKSP90,NCP9#,SCP90..B,F,U200708-200808

WHITE,068

main52119-52600-A1iKSP90,NCP9#,SCP90..F,ILL,U200808

WHITE PEARL CS.,070

main52119-52600-A2iKSP90,NCP9#,SCP90..B,F,U201008

SUPER WHITE 2,040

main52119-52600-B0iKSP90,NCP9#,SCP90..B,F,U200708-200808

SILVER M.M.,1E7

main52119-52600-B1iKSP90,NCP9#,SCP90..F,ILL,U200708-200808

MEDIUM SILVER ME.,1F8

main52119-52600-B4iKSP90,NCP9#,SCP90..B,F,U201008

SILVER ME.,1F7

main52119-52600-C0iKSP90,NCP9#,SCP90..F,U200708-200808

BLACK MC.,209

main52119-52600-D0iKSP90,NCP9#,SCP90..F,U200708-200808

SUPER RED 5,3P0

main52119-52600-D1iKSP90,NCP95,SCP90..B,F200907-201011

DARK RED MC.,3Q8

main52119-52600-D2iKSP90,NCP95,SCP90..B,F200907

ROSE ME.OP.,3P3

main52119-52600-E0iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

main52119-52600-F1iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

main52119-52600-F2iKSP90,NCP95,SCP90..F200902-201008

SILKY GOLD M.M.,5A7

main52119-52600-G0iNCP9#,SCP90..ILL200708-200807

DK.GREEN M.M.,6S3

main52119-52600-H0iKSP90,NCP9#,SCP90..F,U200708-200808

TURQUOISE ME.,777

main52119-52600-H1iKSP90,NCP95,SCP90..F200902-201008

FROSTY GREEN MC.,781

main52119-52600-J0iKSP90,NCP9#,SCP90..B,F,U200808-200907

DK.BLUE M.M.,8P4

main52119-52600-J1iKSP90,NCP9#,SCP90..F,U200708-200808

BLUE M.M.,8T0

main52119-52600-J2iNCP9#,SCP90..ILL200708-200808

GRAYISH BLUE M.M.,8T1

main52119-52600-K0iKSP90,NCP9#,SCP90..B,F,U200808-201011

LT.PURPLE M.M.,9AE

main52119-52640-A0iNCP91,SCP90..RS200809-201008

WHITE,068

main52119-52640-A2iNCP91,SCP90..CVFC..RS201008

SUPER WHITE 2,040

main52119-52640-B0iNCP91..5F200809-201008

MEDIUM SILVER ME.,1F8

main52119-52640-B1iNCP91..5F200809-201008

GRAY ME.,1G3

main52119-52640-C0iNCP91..5F200809-201008

BLACK MC.,209

main52119-52640-D0iNCP91,SCP90..CVFC..RS200809

SUPER RED 5,3P0

main52119-52640-J0iNCP91,SCP90..CVFC..RS200809

BLUE M.M.,8T0

52127CCOVER, FRONT BUMPER HOLE

main52127-52290-A0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

WHITE,068

main52127-52290-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

SILVER M.M.,1E7

main52127-52290-B1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200512-200708

MEDIUM SILVER ME.,1F8

main52127-52290-C0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

BLACK MC.,209

main52127-52290-D0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

SUPER RED 5,3P0

main52127-52290-D1iKSP90,NCP95,SCP90..ILL200512-200708

DARK RED MC.,3Q8

main52127-52290-D2iKSP90,NCP9#,SCP90..B,F,U,X200507-200708

ROSE ME.OP.,3P3

main52127-52290-E0iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

main52127-52290-E1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

BEIGE PM.,4S8

main52127-52290-G0iKSP90,NCP95,SCP90..ILL200701-200708

DK.GREEN M.M.,6S3

main52127-52290-G1iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

GREEN M.M.,6U1

main52127-52290-G2iKSP90,NCP9#,SCP90..B,F,U,X200512-200708

LT.GREEN ME.,6U0

main52127-52290-J0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.BLUE M.M.,8P4

main52127-52290-J1iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

LT. BLUE M.M.,8S9

main52127-52290-J2iKSP90,NCP9#,SCP90..F,U,X200701-200708

BLUE M.M.,8T0

main52127-52290-J3iKSP90,NCP95,SCP90..ILL200512-200708

GRAYISH BLUE M.M.,8T1

main52127-52290-K0iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

main52127-52300-A0iNCP91,SCP90..RS200708-200809

WHITE,068

main52127-52300-B0iNCP91..RS200501-200708

MEDIUM SILVER ME.,1F8

main52127-52300-B1iNCP91..RS200701-200708

DK.GRAY M.M.,1F6

main52127-52300-C0iNCP91..RS200501-200708

BLACK MC.,209

main52127-52300-D0iNCP91..RS200501-200708

SUPER RED 5,3P0

main52127-52300-G0iNCP91..RS200501-200512

GREEN M.M.,6U1

main52127-52300-J0iNCP91,SCP90..RS200708-200809

BLUE M.M.,8T0

main52127-52440-A0iKSP90,NCP9#,SCP90..B,F,U200708-200808

WHITE,068

main52127-52440-A1iKSP90,NCP9#,SCP90..F,ILL,U200708-200808

WHITE PEARL CS.,070

main52127-52440-A2iKSP90,NCP9#,SCP90..B,F,U201008

SUPER WHITE 2,040

main52127-52440-B0iKSP90,NCP9#,SCP90..B,F,U200708-200808

SILVER M.M.,1E7

main52127-52440-B1iKSP90,NCP9#,SCP90..F,ILL,U200808

MEDIUM SILVER ME.,1F8

main52127-52440-B4iKSP90,NCP9#,SCP90..B,F,U201008

SILVER ME.,1F7

main52127-52440-C0iKSP90,NCP9#,SCP90..B,F,U200808

BLACK MC.,209

main52127-52440-D0iKSP90,NCP9#,SCP90..F,U200708-200808

SUPER RED 5,3P0

main52127-52440-D1iNCP9#,SCP90..ILL200808-201011

DARK RED MC.,3Q8

main52127-52440-D2iKSP90,NCP95,SCP90..B,F200907

ROSE ME.OP.,3P3

main52127-52440-E0iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

main52127-52440-F1iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

main52127-52440-F2iKSP90,NCP95,SCP90..F200902-201008

SILKY GOLD M.M.,5A7

main52127-52440-G0iNCP9#,SCP90..ILL200708-200807

DK.GREEN M.M.,6S3

main52127-52440-H0iKSP90,NCP9#,SCP90..F,U200808-201008

TURQUOISE ME.,777

main52127-52440-H1iKSP90,NCP95,SCP90..F200902-201008

FROSTY GREEN MC.,781

main52127-52440-J0iKSP90,NCP9#,SCP90..B,F,U200708-200808

DK.BLUE M.M.,8P4

main52127-52440-J1iKSP90,NCP9#,SCP90..F,U200708-200808

BLUE M.M.,8T0

main52127-52440-J2iNCP9#,SCP90..ILL200808

GRAYISH BLUE M.M.,8T1

main52127-52440-K0iKSP90,NCP9#,SCP90..F,U200708-200808

LT.PURPLE M.M.,9AE

main52127-52470-A0iNCP91,SCP90..RS200809-201008

WHITE,068

main52127-52470-A2iNCP91,SCP90..CVFC..RS201008

SUPER WHITE 2,040

main52127-52470-B0iNCP91..5F200809-201008

MEDIUM SILVER ME.,1F8

main52127-52470-B1iNCP91,SCP90..CVFC..RS200809

GRAY ME.,1G3

main52127-52470-C0iNCP91,SCP90..CVFC..RS200809

BLACK MC.,209

main52127-52470-D0iNCP91,SCP90..CVFC..RS200809

SUPER RED 5,3P0

main52127-52470-J0iNCP91,SCP90..CVFC..RS200809

BLUE M.M.,8T0

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52060iKSP90,NCP9#,SCP90200708-200809

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52050iKSP90,NCP9#,SCP90200501-200708

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-52010iKSP90,NCP9#,SCP90200501-200507

main52617-52020iKSP90,NCP9#,SCP90200508-200708

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52010iKSP90,NCP9#,SCP90200808-201011

main53164-52060×2iKSP90,NCP9#,SCP90201011-201012

main53165-52020iNCP91,SCP90..RS200708-200809

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52010iKSP90,NCP9#,SCP90200501-200708

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52010iKSP90,NCP9#,SCP90200501-200708

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

81481ECOVER, FOG LAMP, RH

main81481-52110iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

main81481-52150iKSP90,NCP95,SCP90..ILL200512-200708

main81481-52330supersedes 81481-52320iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

81482CCOVER, FOG LAMP, LH

main81482-52100iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

main81482-52110iKSP90,NCP95,SCP90..ILL200512-200708

main81482-52260supersedes 81482-52250iKSP90,NCP9#,SCP90..B,F,U; NCP9#,SCP90..ILL200708-200808

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9017906127

main90179-06127

9017906169

main90179-06169

904670707122

main90467-0707122

91554J1025

main91554-J1025

27 parts on this diagram · 6 diagrams in section
