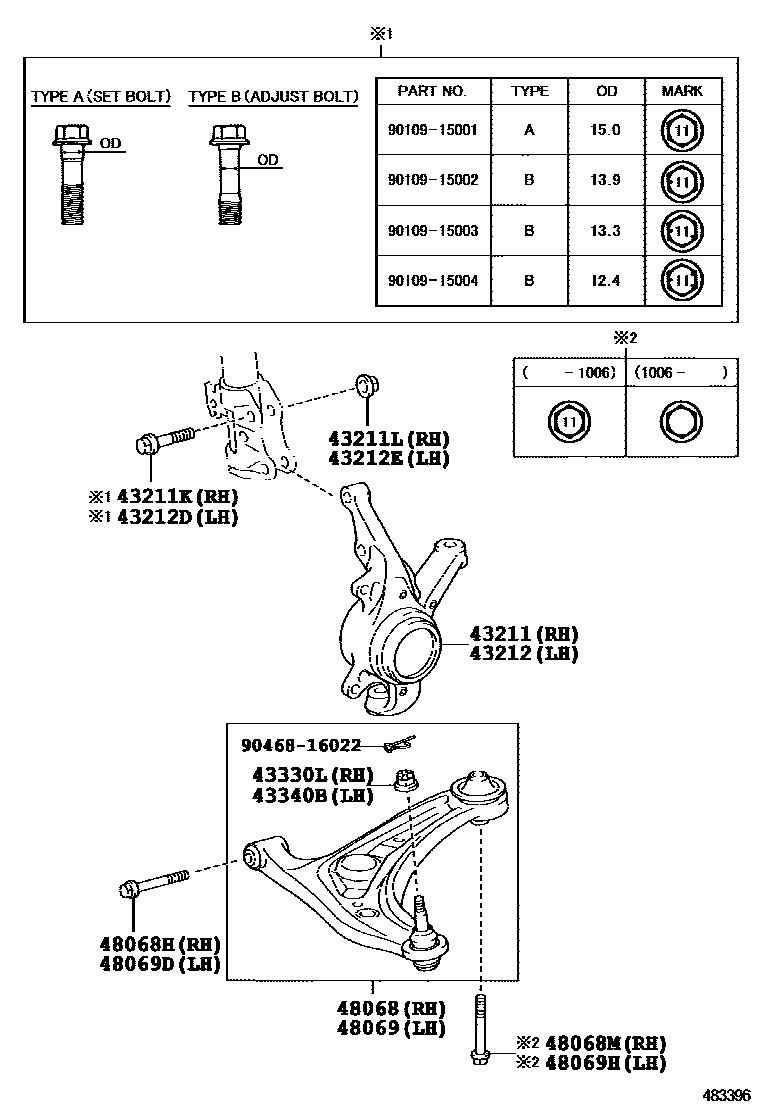

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52050i200708-200808

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2i200708-200809

main90109-15002i200501-200708

main90109-15003i200708-200808

main90109-15004i200501-200708

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2i200808-201012

43212KNUCKLE, STEERING, LH

main43212-52050i200501-200708

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2i200808-201012

main90109-15002i200501-200708

main90109-15003i200708-200809

main90109-15004i200708-200808

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2i200501-200708

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i200501-200708

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i200501-200708

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59095i200501-200708

main48068-59135i200810-201009

main48068-59145i201010-201012

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086i200501-200708

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14123i200708-200808

main90119-14126i200808-201006

main90119-14144i201006-201012

main90119-14145i201006-201012

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59095i200708-200808

main48069-59125i200810-201009

main48069-59135i201010-201012

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086i200708-200809

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14123i200501-200708

main90119-14126i200808-201006

main90119-14144i201006-201012

main90119-14145i201006-201012

9046816022

15 parts on this diagram · 1 diagram in section
