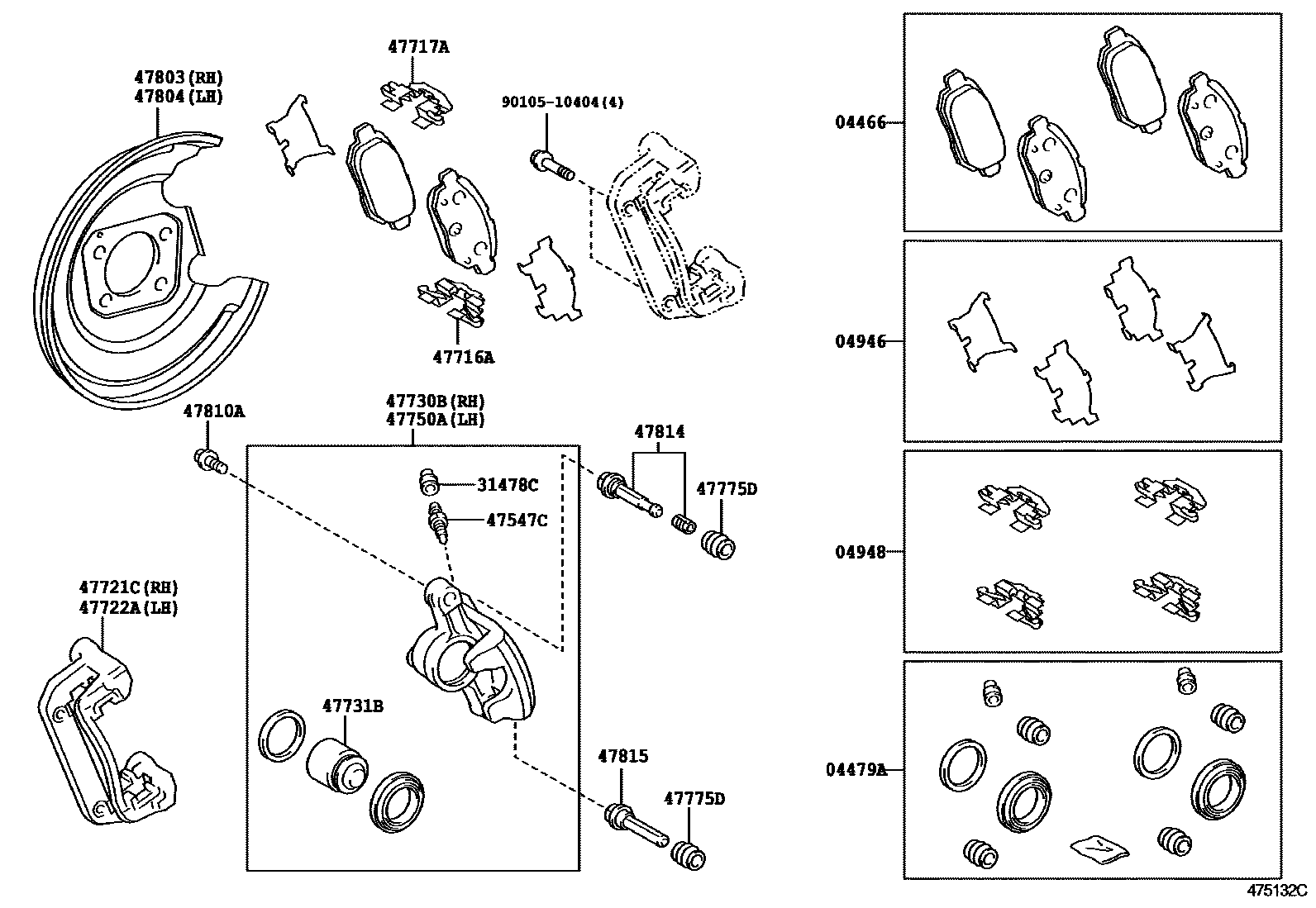

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-52070iNCP91..RS200501-200506

main04466-52110iNCP91..RS200506-200508

main04466-52120iNCP91..RS200508-200607

main04466-52130iNCP91..RS200708-200809

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iNCP91..RS200612-200708

main04479-52080iNCP91..RS200501-200608

main04479-52170iNCP91..RS200708-200809

main04479-52230iNCP91..RS200608-200612

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52030iNCP91..RS200501-200506

main04946-52080iNCP91..RS200612-200708

main04946-52081iNCP91..RS200508-200611

04948FITTING KIT, DISC BRAKE, REAR

main04948-52010iNCP91..RS200501-200506

main04948-52030iNCP91..RS200506-200612

main04948-52040iNCP91..RS200708-200809

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iNCP91..RS200501-200708

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iNCP91..RS200809-201012

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-52050×2iNCP91..RS200501-200506

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47817-52050×2iNCP91..RS200501-200506

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iNCP91..RS200612-200708

main47821-12151iNCP91..RS200809-201012

main47821-52050iNCP91..RS200501-200506

main47821-52051iNCP91..RS200506-200612

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iNCP91..RS200708-200710

main47821-12151iNCP91..RS200710-200809

main47821-52050iNCP91..RS200501-200506

main47821-52051iNCP91..RS200506-200612

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52050iNCP91..RS200501-200708

main47830-52090iNCP91..RS200708-200809

main47830-52161iNCP91..RS200809-201012

47731BPISTON, REAR DISC BRAKE

main47831-52050×2iNCP91..RS200501-200708

main47831-52090×2iNCP91..RS200708-200809

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52050iNCP91..RS200501-200708

main47850-52090iNCP91..RS200708-200809

main47850-52161iNCP91..RS200809-201012

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iNCP91..RS200612-200708

main47875-52050×4iNCP91..RS200501-200612

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-52010iNCP91..RS200708-200710

main47803-52030iNCP91..RS200809-201012

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-52010iNCP91..RS200501-200708

main47804-52030iNCP91..RS200710-200809

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iNCP91..RS200708-200809

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150×4iNCP91..RS200612-200708

main47835-52050×2iNCP91..RS200501-200506

main47835-52051×4iNCP91..RS200506-200612

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-52050×2iNCP91..RS200501-200506

9010510404

main90105-10404

20 parts on this diagram · 2 diagrams in section
