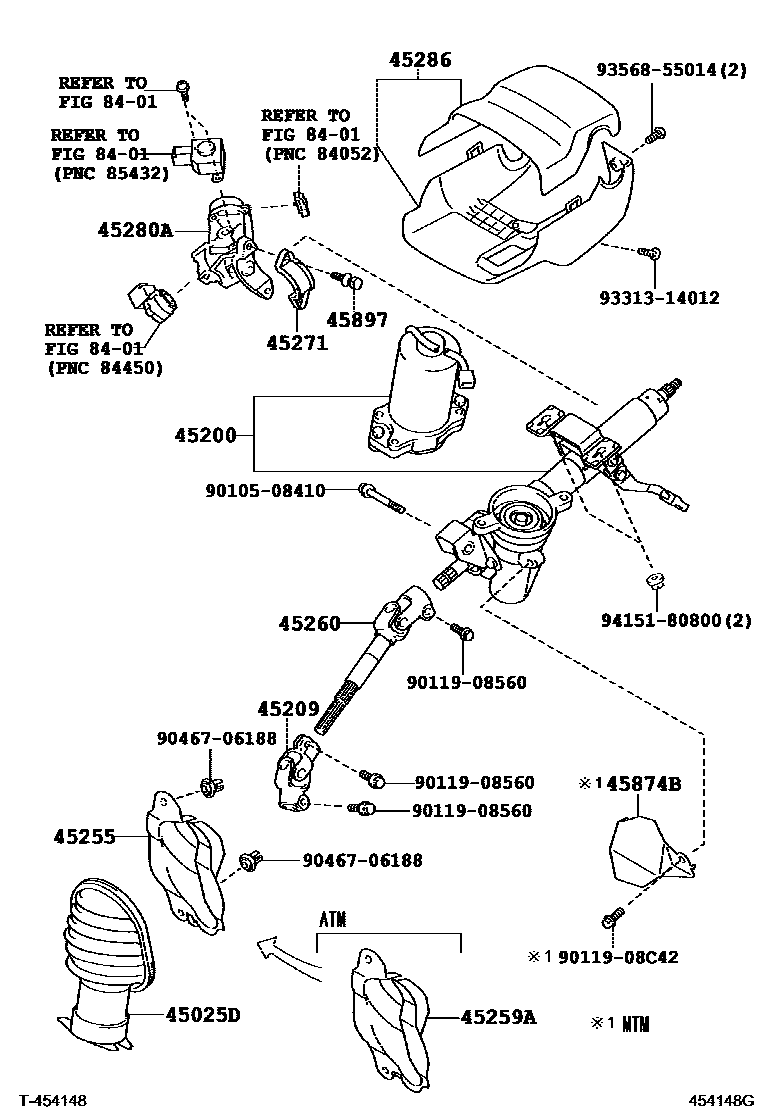

STEERING COLUMN & SHAFT

0001 1 0003 1��(������ ����)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP91,SCP90..RS200708-200809

main45025-52160iNCP95200501-200708

45200POST ASSY, STEERING

main45200-52260iKSP90,NCP9#,SCP90..B,F,ILL,RS,X200501-200708

main45200-52261iKSP90,NCP9#,SCP90..B,F,RS200808-201012

main45200-52281iKSP90..U201008-201012

main45200-52290iNCP95,SCP90..U200501-200708

main45200-52291iNCP9#,SCP90..ILL,U200808-201011

main45200-52270iKSP90,NCP9#,SCP90..F,RS200708-200712

main45200-52271iNCP9#,SCP90..F,RS200808-201012

main45200-52340iKSP90,NCP95..F200501-200508

main45200-52341iKSP90..F200508-200708

main45200-52342iKSP90..F200808-201008

main45200-52520iKSP90..F201008-201012

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52040iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52130iNCP91..5F200809-201008

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iKSP90,NCP9#,SCP90..ATM200808-201012

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52170iKSP90,NCP9#,SCP90200808-201012

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iKSP90,NCP9#,SCP90..ATM..(B,F,ILL,RS,X)200501-200708

main45280-52090iNCP91..5F200501-200708

45286COVER, STEERING COLUMN

main45286-52930-B0iKSP90,NCP9#,SCP90..B,F,U,X; KSP90,NCP9#,SCP90..F,X; KSP90,NCP95,SCP90..ILL; NCP91..RS200501-200708

main45286-52930-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200808-200812

ASH BROWN,TRIM4#

main45286-52935-B0iKSP90,NCP9#,SCP90..B,F,RS,U200812-201012

DK.GRAY,TRIM1#

main45286-52935-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200812-201012

ASH BROWN,TRIM4#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-52020iNCP91..5F200501-200708

45897BOLT, STEERING LOCK SET

main45897-12020×2iKSP90,NCP9#,SCP90200501-200708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508410

main90105-08410

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

9415180800

main94151-80800

19 parts on this diagram · 2 diagrams in section
