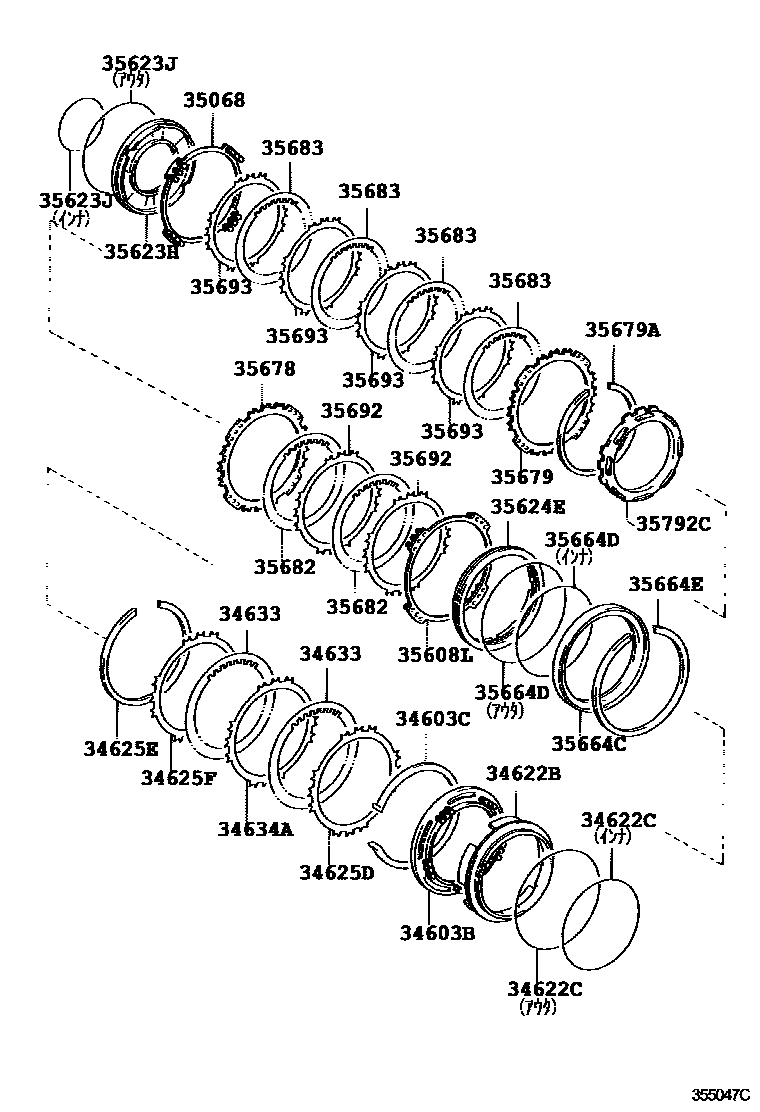

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)
34622BPISTON, 2ND COAST & OVERDRIVE BRAKE
34622CRING, O(FOR 2ND COAST & OVERDRIVE)
34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE
34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)
34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2
34633DISC, 2ND COAST & OVERDRIVE BRAKE
34634APLATE, 2ND COAST & OVERDRIVE BRAKE
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35623HPISTON, 1ST & REVERSE BRAKE
35623JRING, O (FOR 1ST & REVERSE BRAKE)
35624EPISTON, 2ND BRAKE
35664CCYLINDER, 2ND BRAKE
35664DRING, O(FOR 2ND BRAKE CYLINDER)
35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)
35678FLANGE, BRAKE(FOR 2ND BRAKE)
35679FLANGE, BRAKE(FOR 1ST & REVERSE)
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
35682DISC, BRAKE(FOR 2ND BRAKE)
35683DISC, BRAKE(FOR 1ST & REVERSE)
35692PLATE, BRAKE(FOR 2ND BRAKE)
35693PLATE, BRAKE (FOR 1ST & REVERSE)
35792CCLUTCH, 1 WAY, NO.2
25 parts on this diagram · 1 diagram in section
