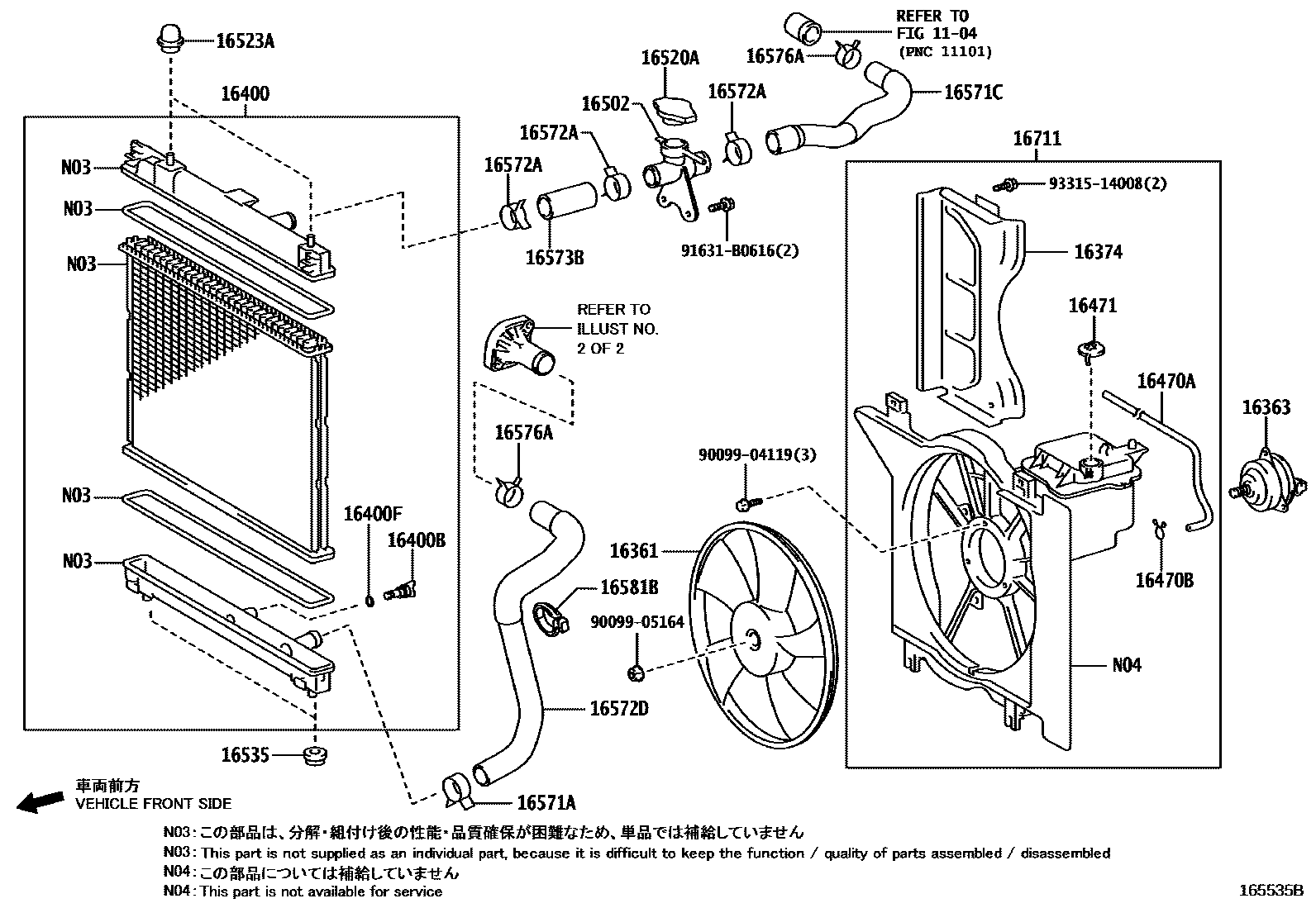

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104

16361FAN

main16361-21090i2NZFE..NCP95200508-201012

main16361-21100i1NZFE..NCP91200501-201012

main16361-23070i1KRFE..KSP90200501-201012

16363MOTOR, COOLING FAN

main16363-28150i2SZFE..SCP90200501-201012

main16363-28160i2NZFE..NCP95200508-201012

16374INSULATOR, COOLING FAN MOTOR

main16366-40010i2SZFE..SCP90200501-201012

16400RADIATOR ASSY

main16400-21270i1NZFE..NCP91200501-201012

sub16400-21381

main16400-21300i2NZFE..NCP95200501-201012

sub16400-21371

main16400-23160i1KRFE..KSP90200501-201012

sub16400-23161

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1NZFE,2NZFE..NCP9#200501-201012

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE,2NZFE..NCP9#..F,ILL,U200501-201012

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21200i1NZFE,2NZFE..NCP9#200501-201012

main90445-12078i2SZFE..SCP90200501-201012

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1KRFE..KSP90200501-201012

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i2SZFE..SCP90200501-201012

16502FILLER SUB-ASSY, WATER

main16502-21060i1NZFE..NCP91..RS200501-201012

sub16502-21080

main16502-23010i1KRFE..KSP90200501-201012

16520ACAP SUB-ASSY, WATER FILLER

main16401-31480i1NZFE,2NZFE..NCP9#200903-201012

main16401-31520i2SZFE..SCP90201010-201012

sub16401-36020

main16401-62100i1KRFE..KSP90200501-200902

sub16401-31520

16523ACUSHION, RADIATOR SUPPORT

main16523-21030i2SZFE..SCP90200501-201012

16535SUPPORT, RADIATOR, LOWER

main90480-22025i2SZFE..SCP90200501-201012

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33006i1NZFE,2NZFE..NCP9#200501-201012

main90467-34004i1KRFE..KSP90200501-201012

16571CHOSE, RADIATOR, NO.1

main16571-21120i1NZFE,2NZFE..NCP9#200501-201012

main16571-23080i2SZFE..SCP90200501-201012

main16571-40040i1KRFE..KSP90200501-201012

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33006i1NZFE,2NZFE..NCP9#..F,ILL,U200501-201012

main90467-34004i1NZFE,2NZFE..NCP9#200501-201012

16572DHOSE, RADIATOR, NO.2

main16572-21090i1NZFE,2NZFE..NCP9#..F,ILL,U200501-201012

main16572-23080i2SZFE..SCP90200501-200905

main16572-23081i2SZFE..SCP90200905-201012

main16572-40010i1KRFE..KSP90200501-201012

16573BHOSE, RADIATOR, NO.3

main16573-21040i2NZFE..NCP95200501-201012

main16573-21060i1NZFE..NCP91200501-201012

main16573-23010i2SZFE..SCP90200501-201012

16576ACLIP, RADIATOR HOSE, NO.6

main90466-30001i1KRFE..KSP90200501-201012

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-21020i1NZFE..NCP91..CVFC200501-201012

main16581-21030i1NZFE..NCP91..CVFC200501-201012

main16581-40030i1KRFE..KSP90200501-201012

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main90469-41001i2SZFE..SCP90..F,ILL,U200501-201012

16711SHROUD, FAN

main16711-21110i1NZFE,2NZFE..NCP9#..F,ILL,U200501-201012

main16711-23090i2SZFE..SCP90200501-201012

9009904119

main90099-04119

9009905164

main90099-05164

91631B0616

main91631-B0616

9331514008

main93315-14008

27 parts on this diagram · 8 diagrams in section
