ENGINE OVERHAUL GASKET KIT

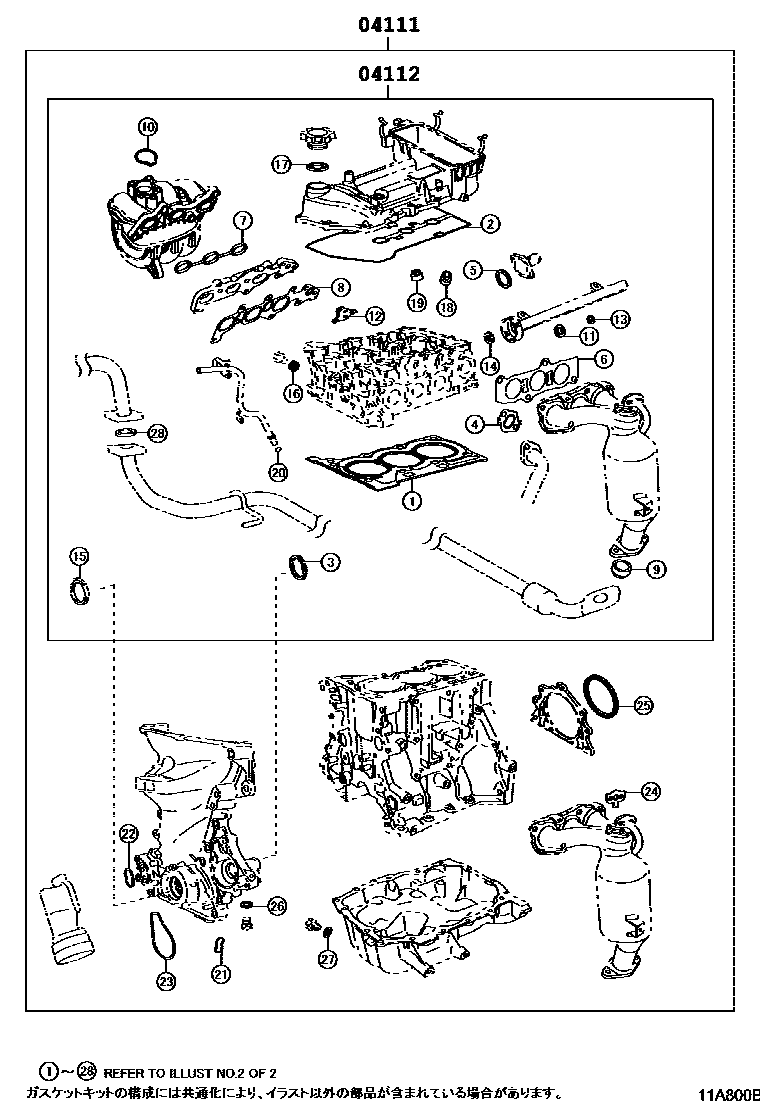

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21230i200501-200612
sub04111-21231
main04111-21231i200612-200811
sub04111-21232
main04111-21232i200811-201011
sub04111-21233
main04111-21233i201011-201012
sub04111-21234
main04111-21240i200501-200612
sub04111-21241
main04111-21241i200612-200811
sub04111-21242
main04111-21242i200811-201011
sub04111-21243
main04111-21243i201011-201012
sub04111-21244
main04111-23110i200501-201008
sub04111-23130
main04111-23130i200511-200809
sub04111-23131
main04111-23131i201008-201012
main04111-40070i200501-200802
sub04111-40073
main04111-40071i200802-200908
sub04111-40072
main04111-40072i200908-201012
sub04111-40073
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21230i200501-200612
sub04112-21231
main04112-21231i200612-201011
sub04112-21232
main04112-21232i201011-201012
sub04112-21233
main04112-21240i200501-200612
sub04112-21241
main04112-21241i200612-201011
sub04112-21242
main04112-21242i201011-201012
sub04112-21243
main04112-23110i200501-201008
sub04112-23130
main04112-23130i200511-200809
sub04112-23131
main04112-23131i201008-201012
main04112-40030i200501-200802
sub04112-40033
main04112-40031i200802-200908
sub04112-40032
main04112-40032i200908-201012
sub04112-40033

2 parts on this diagram · 8 diagrams in section
