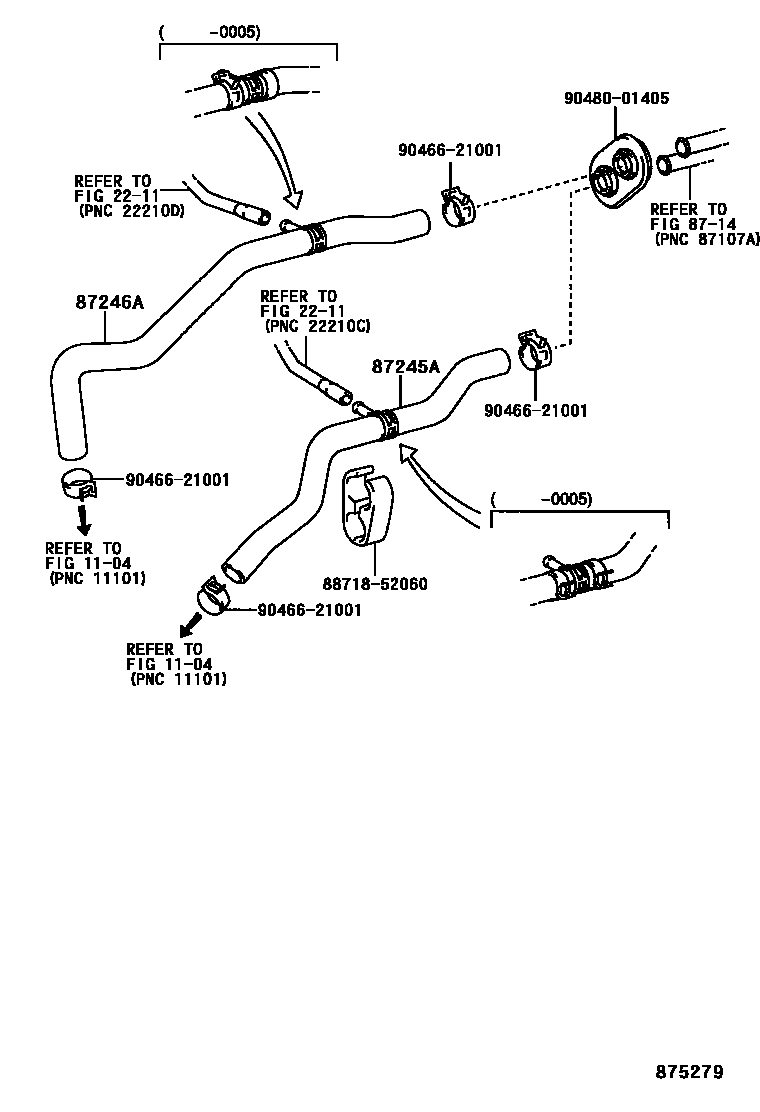

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1��������� ����-�� * (I)

1104CYLINDER HEAD

→ Go to FIG 11-04

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-52060iSCP13200212

main87245-52090iSCP13..U200302

87245AHOSE, HEATER WATER, INLET A

main87209-52010iSCP10199901-200005

main87209-52011iSCP10200212

main87245-52010iNCP1#200112-200212

87246AHOSE, HEATER WATER, OUTLET A

main87209-52020iSCP10199901-200005

main87209-52021iSCP10200212

main87209-52070iSCP13..U200302

main87245-52020iNCP1#199908-200112

8871852060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52060

9046621001

main90466-21001

9048001405

main90480-01405

9 parts on this diagram · 4 diagrams in section
