Toyota VITZ — RADIO RECEIVER & AMPLIFIER & CONDENSER

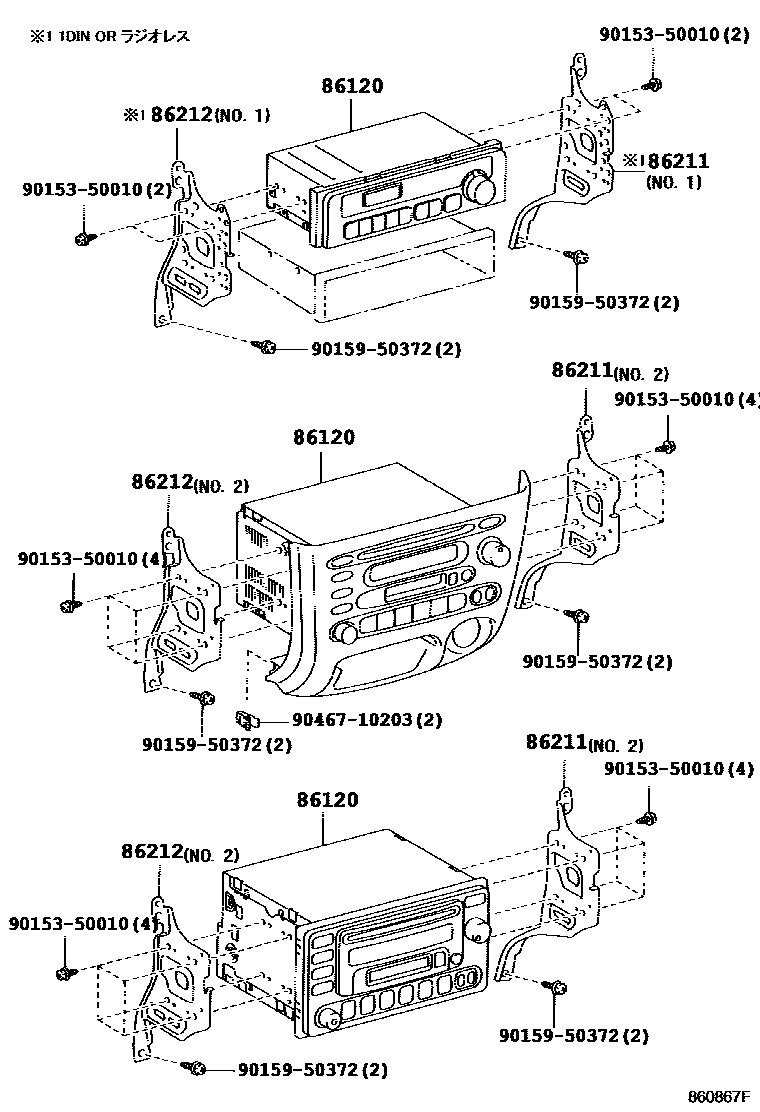

Parts diagram
86120RECEIVER ASSY, RADIO
86120-52041
86120-52080
86120-52110
86120-52180
86120-52250
86120-52360
86120-52361
86211BRACKET, RADIO, NO.1
86211-52010
86211-52020
86211-52140
86211-52160
86211-52161
86212BRACKET, RADIO, NO.2
86212-52010
86212-52020
86212-52130
86212-52160
9015350010
90153-50010
9015950372
90159-50372
9046710203
90467-10203

6 parts on this diagram · 3 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota VITZ

This section contains 11 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota VITZ. Key components include: CONDENSER, RADIO SETTING, RECEIVER ASSY, RADIO, BRACKET, RADIO, NO.1, BRACKET, RADIO, NO.2.
