WIRING & CLAMP

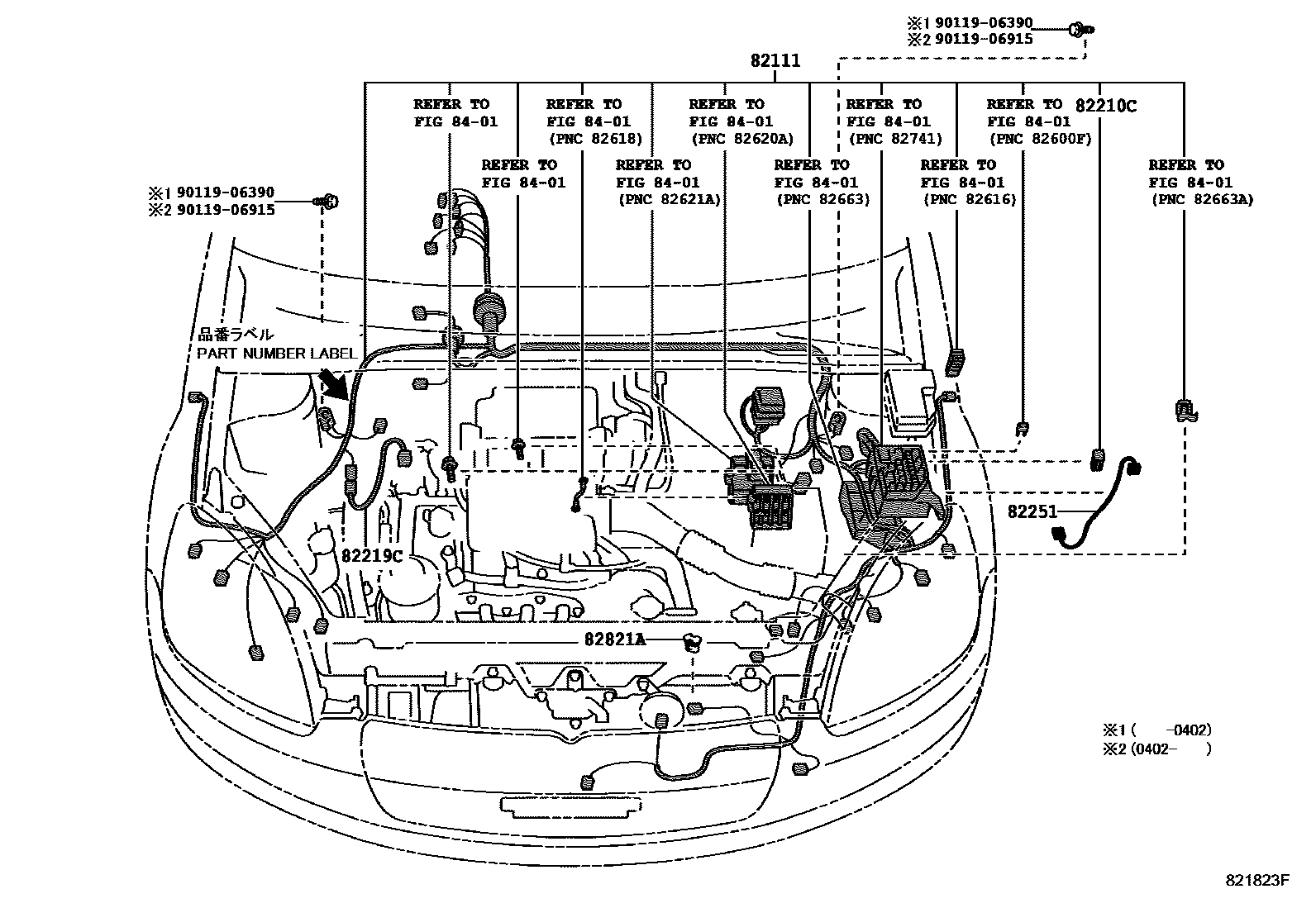

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-52010i199901-199912
main82111-52011i199912-200008
main82111-52012i200101-200112
main82111-52020i199901-199908
main82111-52021i199908-199912
main82111-52022i199912-200008
main82111-52023i200101-200112
main82111-52030i199901-199912
main82111-52031i199912-200101
main82111-52032i200101-200112
main82111-52040i199901-199908
main82111-52041i199909-199912
main82111-52042i199912-200101
main82111-52043i200101-200112
main82111-52050i199908-199912
main82111-52051i200008-200101
main82111-52052i200101-200112
main82111-52060i199909-199912
main82111-52061i199912-200101
main82111-52062i200101-200112
main82111-52810i200112-200208
main82111-52820i200010-200112
main82111-52A30i200212-200501
main82111-52A40i200212-200304
main82111-52A41i200304-200501
main82111-5C010i200112-200208
main82111-5C011i200208-200212
main82111-5C020i200112-200208
main82111-5C021i200208-200212
main82111-5C030i200112-200208
main82111-5C031i200208-200212
main82111-5C040i200112-200208
main82111-5C050i200112-200208
main82111-5C060i200112-200208
main82111-5C061i200208-200212
main82111-5C070i200112-200208
main82111-5C071i200208-200212
main82111-5C080i200112-200208
main82111-5C081i200208-200212
main82111-5C400i200112-200208
main82111-5C401i200208-200212
main82111-5C410i200112-200208
main82111-5C411i200208-200212
main82111-5C420i200112-200208
main82111-5C421i200208-200212
main82111-5C430i200112-200208
main82111-5C431i200208-200212
main82111-5D080i200208-200212
main82111-5D090i200208-200212
main82111-5D110i200212-200501
main82111-5D130i200212-200304
main82111-5D131i200304-200501
main82111-5D140i200212-200501
main82111-5D150i200212-200403
main82111-5D300i200212-200501
main82111-5D310i200212-200501
main82111-5D330i200212-200501
main82111-5D360i200212-200501
main82111-5D370i200212-200501
main82111-5D590i200212-200501
main82111-5D610i200212-200501
main82111-5D630i200212-200501
main82115-52050i200008-200101
main82115-52051i200101-200112
main82115-52060i200101-200112
82210CFUSIBLE LINK
main90982-08272i200302-200501
main90982-08283i199901-200112
main90982-08284i200112-200212
main90982-08285i200112-200212
82219CWIRE, SENSOR
main82219-52020i199908-200112
82251WIRE, SPEED SENSOR
main82251-52010i199901-200105
82821ACOVER, CONNECTOR
main82821-10050i199901-200112
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011906390
main90119-06390
9011906915
main90119-06915

8 parts on this diagram · 12 diagrams in section
