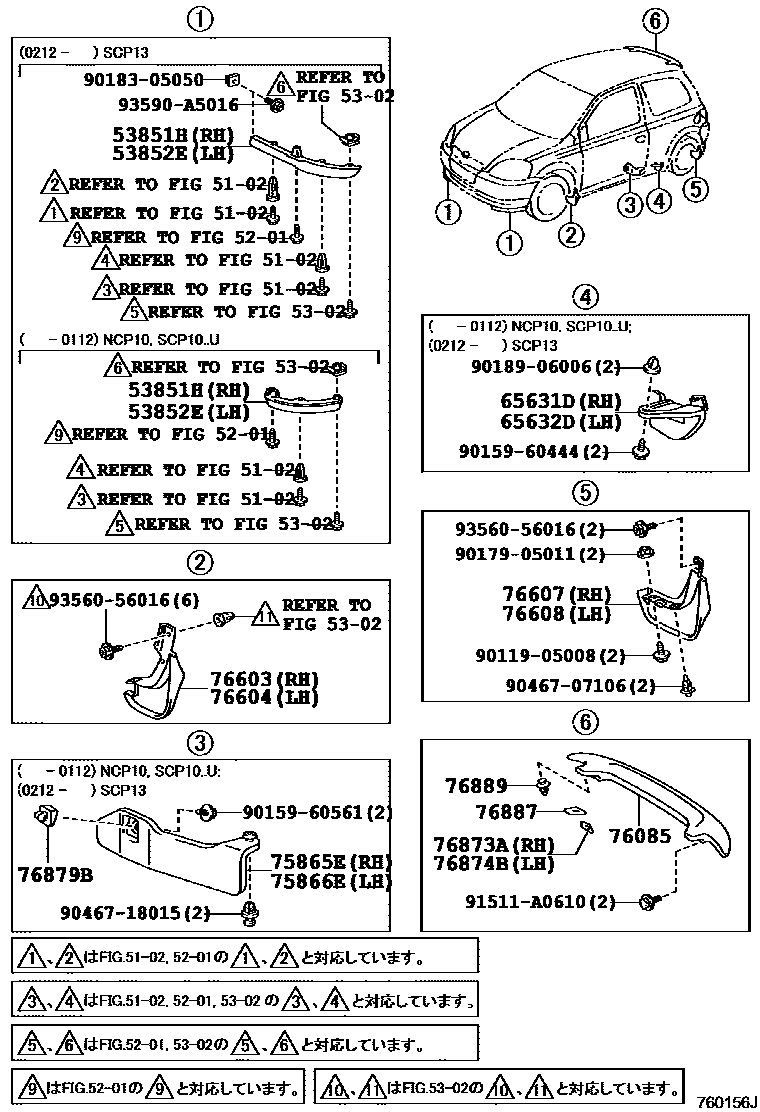

MUDGUARD & SPOILER

0001 1 0002 1SCP10;��(���� �����)

5102

5201

5302

53851HPAD, FRONT SPOILER, RH

main53851-52010iNCP10,13,SCP10..RS,U199901-200112

main53851-52110iSCP13200212

53852EPAD, FRONT SPOILER, LH

main53852-52010iNCP10,13,SCP10..RS,U199901-200112

main53852-52110iSCP13200212

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52010iNCP10,SCP10..U199901-200112

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52010iNCP10,SCP10..U199901-200112

75865EPROTECTOR, ROCKER PANEL MOULDING, RH

main75865-52010iNCP10,13,SCP10..RS,U199901-200112

75866EPROTECTOR, ROCKER PANEL MOULDING, LH

main75866-52010iNCP10,13,SCP10..RS,U199901-200112

76085SPOILER SUB-ASSY, REAR

main76871-52900iNCP1#,SCP10..B,F,RS,U199901-200112

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-52010iNCP10,15,SCP10..B,CLA,F,U199901-200112

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-52010iNCP10,15,SCP10..B,CLA,F,U199901-200112

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-52010iNCP10,15..CLA200112-200212

main76625-52040iNCP10,13..RS200112-200212

main76625-52050iNCP10,15,SCP10..B,F,U200112-200212

main76625-52100iNCP10,13200212

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-52010iNCP10,15,SCP10..B,CLA,F,U199901-200112

main76626-52040iNCP10,13..RS200010-200112

main76626-52050iNCP10,15,SCP10..B,F,U200112-200212

main76626-52100iNCP10,13200212

76873APROTECTOR, REAR SPOILER, RH

main76873-52010iNCP1#,SCP1#..B,F,RS,U199901-200308

76874BPROTECTOR, REAR SPOILER, LH

main76874-52010iNCP1#,SCP1#..B,F,RS,U199901-200308

76879BCLIP, REAR SPOILER, NO.2

main76879-52010×2iNCP10,13,SCP10..RS,U199901-200112

76887SEAL, REAR SPOILER

main76887-52010×2iNCP1#,SCP1#..B,F,RS,U199901-200308

76889CLIP, REAR SPOILER, NO.2

main76889-52010×2iNCP10,15,SCP10..B,F,U199901-200112

9011905008

main90119-05008

9015960444

main90159-60444

9015960561

main90159-60561

9017905011

main90179-05011

9018305050

main90183-05050

9018906006

main90189-06006

9046707106

main90467-07106

9046718015

main90467-18015

91511A0610

main91511-A0610

9356056016

main93560-56016

93590A5016

main93590-A5016

30 parts on this diagram · 2 diagrams in section
