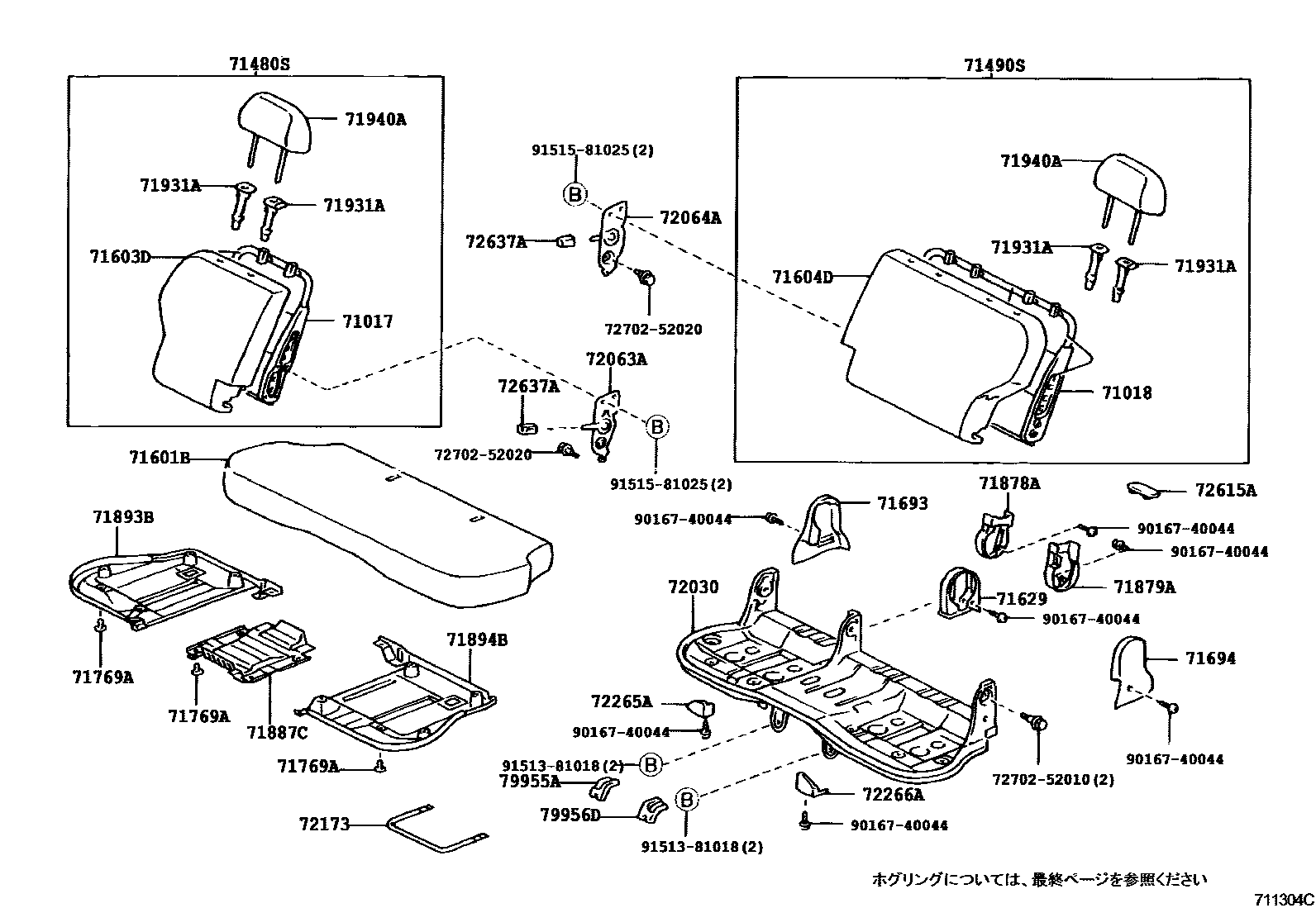

REAR SEAT & SEAT TRACK

0001 1����� �-� 0004 1���� ��� ��� 0005 1���� ��� ��� 0006 1����� �-� 0008 1��� �-� 0009 1��� �-� 0010 1 0011 1�������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52010iSCP10..B200212

main71017-52020iSCP10..B199908-200112

main71017-52190iNCP10,13,SCP13200212

main71017-52270iNCP10,SCP10..F,RS; SCP10..F;NCP10..RS,U200112-200212

main71017-52280iNCP10..U;SCP10..F; SCP10..F200112-200212

main71017-52290iNCP15..F200112-200212

main71017-52300iNCP15..5D..4FC..(CLA,U); NCP15..CLA,U; NCP15..F200112-200212

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-52010iSCP10..B200112-200212

main71018-52020iNCP10,SCP10..CLA,U199901-200112

main71018-52120iNCP10,13,SCP10..B,RS; NCP10,13,SCP10..B,RS,U; NCP10..CLA200112-200212

main71018-52140iSCP10..(4FC,5F)..F200212

main71018-52150iSCP10..5D..F;NCP10,13,SCP13..RS,U200212

main71018-52160iNCP15..F200112-200212

main71018-52170iNCP15..5D..4FC..F200303-200308

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-52010-B2iSCP10..B199901-199908

***,SHADOW GRAY,TRIM1#

main71480-52010-H1iSCP10..B199901-199908

***,FRENCH TORQUOISE,TRIM7#

main71480-52011-B3iSCP10..B199908-200101

***,SHADOW GRAY,TRIM1#

main71480-52011-H2iSCP10..B199908-200101

***,FRENCH TURQUOISE,TRIM7#

main71480-52150-B0iSCP10..3D..U199901-199908

***,GRAY,TRIM1#

main71480-52150-H0iSCP10..3D..U199901-199908

***,TORQUOISE,TRIM7#

main71480-52151-B0iNCP10,SCP10..3D..U199908-200101

***,SHADW GRAY,TRIM1#

main71480-52151-H0iNCP10,SCP10..3D..U199908-200101

***,FRNCH TURQUOISE,TRIM7#

main71480-52160-B0iSCP10..5D..U199901-199908

***,GRAY,TRIM1#

main71480-52160-H0iSCP10..5D..U199901-199908

***,TORQUOISE,TRIM7#

main71480-52161-B0iNCP10,SCP10..5D..U199908-200101

***,SHADOW GRAY,TRIM1#

main71480-52161-H0iNCP10,SCP10..5D..U199908-200101

***,FRENCH TURQUOISE,TRIM7#

main71480-52480-B0iSCP10..B199908-200101

main71480-52480-H0iSCP10..B199908-200101

main71480-52570-B0iNCP10..CLA199909-200112

***,SHADOW GRAY,TRIM1#

main71480-52600-K2iNCP10,13..RS200010-200112

***,SHADOW GRAY,TRIM9#

main71480-52640-B1iSCP10..B200101-200112

***,SHADOW GRAY,TRIM1#

main71480-52640-H1iSCP10..B200101-200112

***,FRENCH TURQUOISE,TRIM7#

main71480-52650-B1iSCP10..B200101-200112

main71480-52650-H1iSCP10..B200101-200112

main71480-52710-B1iNCP10,SCP10..U200101-200112

***,SHADOW GRAY,TRIM1#

main71480-52710-H1iNCP10,SCP10..U200101-200112

***,FRENCH TURQUOISE,TRIM7#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-52010-B2iSCP10..B199901-199908

***,SAHDOW GRAY,TRIM1#

main71490-52010-H1iSCP10..B199901-199908

***,FRENCH TORQUOISE,TRIM7#

main71490-52011-B3iSCP10..B199908-200101

***,SHADOW GRAY,TRIM1#

main71490-52011-H2iSCP10..B199908-200101

***,FRENCH TURQUOISE,TRIM7#

main71490-52060-B3iSCP10..3D..U199901-199908

***,SHADOW GRAY,TRIM1#

main71490-52060-H3iSCP10..3D..U199901-199908

***,FRENCH TORQUOISE,TRIM7#

main71490-52061-B3iNCP10,SCP10..3D..U199908-200101

***,SHADOW GRAY,TRIM1#

main71490-52061-H3iNCP10,SCP10..3D..U199908-200101

***,FRENCH TURQUOISE,TRIM7#

main71490-52080-B2iSCP10..5D..U199901-199908

***,SHADOW GRAY,TRIM1#

main71490-52080-H1iSCP10..5D..U199901-199908

***,FRENCH TURQUOISE,TRIM7#

main71490-52081-B2iNCP10,SCP10..5D..U199908-200101

***,SHADOW GRAY,TRIM1#

main71490-52081-H1iNCP10,SCP10..5D..U199908-200101

***,FRENCH TURQUOISE,TRIM7#

main71490-52230-B0iSCP10..B199908-200101

main71490-52230-H0iSCP10..B199908-200101

main71490-52250-B0iNCP10..CLA199909-200112

***,SHADOW GRAY,TRIM1#

main71490-52290-K2iNCP10,13..RS200010-200112

***,SHADOW GRAY,TRIM9#

main71490-52320-B1iSCP10..B200101-200112

***,SHADOW GRAY,TRIM1#

main71490-52320-H1iSCP10..B200101-200112

***,FRENCH TURQUOISE,TRIM7#

main71490-52330-B1iSCP10..B200101-200112

main71490-52330-H1iSCP10..B200101-200112

main71490-52400-B0iNCP10,SCP10..U200101-200112

***,SHADOW GRAY,TRIM1#

main71490-52400-H0iNCP10,SCP10..U200101-200112

***,FRENCH TURQUOISE,TRIM7#

71601BPAD SUB-ASSY, REAR SEAT CUSHION W/COVER

main71601-52010-B0iSCP10..B199901-199908

main71601-52010-H0iSCP10..B199901-199908

main71601-52011-B0iSCP10..B199908-200101

main71601-52011-H0iSCP10..B199908-200101

main71601-52020-B0iSCP10..B199901-199908

main71601-52020-H0iSCP10..B199901-199908

main71601-52050-B0iNCP10,SCP10..3D..U199908-200101

main71601-52050-H0iNCP10,SCP10..3D..U199908-200101

main71601-52070-B0iNCP10,SCP10..5D..U199908-200101

main71601-52070-H0iNCP10,SCP10..5D..U199908-200101

main71601-52290-B0iSCP10..3D..U199901-199908

main71601-52290-H0iSCP10..3D..U199901-199908

main71601-52300-B0iSCP10..3D..U199901-199908

main71601-52300-H0iSCP10..3D..U199901-199908

main71601-52310-B0iSCP10..5D..U199901-199908

main71601-52310-H0iSCP10..5D..U199901-199908

main71601-52320-B0iSCP10..5D..U199901-199908

main71601-52320-H0iSCP10..5D..U199901-199908

main71601-52580-B1iNCP15..3D..CLA199909-200112

main71601-52590-B1iNCP15..5D..CLA199909-200101

main71601-52620-B1iNCP10..CLA200112-200212

main71601-52630-C0iNCP10,13..RS200112-200212

main71601-52710-B0iSCP10..B200101-200112

main71601-52710-H0iSCP10..B200101-200112

main71601-52720-B0iSCP10..B200212-200501

main71601-52780-B0iNCP10,SCP10..U200112-200212

main71601-52780-H0iNCP10,SCP10..U200101-200112

main71601-52C10-A0iSCP10..5D..4FC..F200404-200501

main71601-52C20-A0iNCP15..5D..4FC..F200404-200501

main71601-5C130-B0iSCP10..3D..F200212-200501

main71601-5C140-B0iSCP10..5D..(B,F)200112-200212

main71601-5C150-B0iSCP10..5D..(4FC,5F)..F200212-200501

main71601-5C160iNCP10..3D..U;SCP10..3D..F200112-200212

main71601-5C160-B1iSCP10..3D..F200112-200212

main71601-5C170-B1iNCP10..3D..U;SCP10..3D..F; SCP10..3D..F200112-200212

main71601-5C190-B1iNCP10..5D..U;SCP10..5D..F200112-200212

main71601-5C200-B0iNCP15..3D..F200112-200212

main71601-5C210-B0iNCP15..5D..F200112-200212

main71601-5C220-B1iNCP15..3D..F200112-200212

main71601-5C230-B1iNCP15..5D..F200112-200212

main71601-5C240-B0iNCP15..3D..U200112-200212

main71601-5C250-B0iNCP15..5D..4FC..F200209-200212

main71601-5C260-B0iNCP15..3D..CLA200112-200212

main71601-5C270-B0iNCP15..5D..4FC..CLA; NCP15..5D..CLA200112-200212

main71601-5C280-C0iNCP10..3D..RS200112-200212

main71601-5C290-C0iNCP10..5D..RS200112-200212

main71601-5C620-B0iSCP13..U200212-200501

main71601-5C720-B0iNCP15..5D..4FC..F; NCP15..5D..F200212-200308

main71601-5C720-K0iNCP15..5D..4FC..F200308-200501

main71601-5C740-B0iNCP15..U200212-200501

main71601-5C750-A1iSCP10..4HC200212-200501

main71601-5C790-B0iSCP10..5D..(4FC,5F)..F; SCP10..5D..4FC..F200212-200308

main71601-5C790-K0iSCP10..5D..4FC..F200308-200501

main71601-5D060-A0iSCP13..CLA200212-200501

main71601-5D070-A0iNCP15..CLA200212-200501

main71601-5D080-C0iNCP10,13200212-200501

main71601-5D090-C0iNCP10,13..3D200212-200501

main71601-5D100-C0iNCP10,13..5D200212-200501

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52010-B0iSCP10..B199901-199908

main71603-52010-H0iSCP10..B199901-199908

main71603-52011-B0iSCP10..B199908-200101

main71603-52011-H0iSCP10..B199908-200101

main71603-52020-B0iSCP10..B199901-199908

main71603-52020-H0iSCP10..B199901-199908

main71603-52021-B0iSCP10..B199908-200101

main71603-52021-H0iSCP10..B199908-200101

main71603-52270-B0iSCP10..3D..U199901-199908

main71603-52270-H0iSCP10..3D..U199901-199908

main71603-52271-B0iNCP10,SCP10..3D..U199908-200101

main71603-52271-H0iNCP10,SCP10..3D..U199908-200101

main71603-52280-B0iSCP10..3D..U199901-199908

main71603-52280-H0iSCP10..3D..U199901-199908

main71603-52281-B0iNCP10,SCP10..3D..U199908-200112

main71603-52281-H0iNCP10,SCP10..3D..U199908-200112

main71603-52290-B0iSCP10..5D..U199901-199908

main71603-52290-H0iSCP10..5D..U199901-199908

main71603-52291-B0iNCP10,SCP10..5D..U199908-200101

main71603-52291-H0iNCP10,SCP10..5D..U199908-200101

main71603-52300-B0iSCP10..5D..U199901-199908

main71603-52300-H0iSCP10..5D..U199901-199908

main71603-52450-C1iNCP10,13..RS200010-200112

main71603-52730-B0iSCP10..B199908-200101

main71603-52730-H0iSCP10..B199908-200101

main71603-52740-B0iSCP10..B199908-200112

main71603-52740-H0iSCP10..B199908-200112

main71603-52820-B1iNCP10..CLA199909-200101

main71603-52820-B2iNCP10..CLA200101-200112

main71603-52B70-A0iSCP1#..5D..(4FC,CVFC)..(F,U)200404-200501

main71603-52B80-A0iNCP15..5D..4FC..F200404-200501

main71603-5C010-B2iSCP10..B200101-200112

main71603-5C010-H2iSCP10..B200101-200112

main71603-5C011iSCP10..B200112-200212

main71603-5C011-B2iSCP10..B200112-200212

main71603-5C020-B1iSCP10..B200101-200112

main71603-5C020-H1iSCP10..B200101-200112

main71603-5C021-B1iSCP10..B200212-200501

main71603-5C040-B2iSCP10..B200101-200112

main71603-5C040-H2iSCP10..B200101-200112

main71603-5C041-B2iSCP10..B200112-200212

main71603-5C110-B1iNCP10,SCP10..U200101-200112

main71603-5C110-H1iNCP10,SCP10..U200101-200112

main71603-5C140-B1iNCP10,SCP10..U200101-200112

main71603-5C140-H1iNCP10,SCP10..U200101-200112

main71603-5C141-B1iSCP10..5D..4FC..F200209-200212

main71603-5C150-B0iSCP10..F200112-200212

main71603-5C170-B0iSCP10..(4FC,5F)..F200212-200501

main71603-5C180-B0iSCP10..F200112-200212

main71603-5C190-B0iSCP10..B,F200101-200112

main71603-5C190-H0iSCP10..B,F200101-200112

main71603-5C200-B0iSCP10..F200112-200212

main71603-5C220-B0iSCP10..B,F200101-200112

main71603-5C220-H0iSCP10..B,F200101-200112

main71603-5C230-B0iSCP10..F200101-200112

main71603-5C230-H0iSCP10..F200101-200112

main71603-5C250-B0iSCP10..F200101-200112

main71603-5C250-H0iSCP10..F200101-200112

main71603-5C260-B0iSCP10..F200101-200112

main71603-5C260-H0iSCP10..F200101-200112

main71603-5C280-B0iSCP10..F200101-200112

main71603-5C280-H0iSCP10..F200101-200112

main71603-5C370-B1iSCP10..F200112-200212

main71603-5C380-B1iNCP10..U;SCP10..F200112-200212

main71603-5C390-B1iNCP10..U;SCP10..F200112-200212

main71603-5C400-B1iNCP10..U;SCP10..F200112-200212

main71603-5C410-B0iNCP15..F200112-200212

main71603-5C420-B0iNCP15..F200112-200212

main71603-5C430-B1iNCP15..F200112-200212

main71603-5C440-B1iNCP15..F200112-200212

main71603-5C450-B0iNCP15..5D..4FC..F200209-200212

main71603-5C460-B0iNCP15..5D..4FC..CLA; NCP15..CLA200112-200212

main71603-5C470-C0iNCP10..RS200112-200212

main71603-5C520-B0iNCP10..CLA200112-200212

main71603-5C530-C0iNCP10..RS; NCP13200112-200212

main71603-5D090-B0iSCP10..5D..4FC..F200303-200308

main71603-5D130-B0iSCP10..5D..5F..F200212-200501

main71603-5D130-K0iSCP1#..5D..(4FC,CVFC)..(F,U)200308

main71603-5D160-B0iNCP15..5D..4FC..F; NCP15..5D..F200212-200308

main71603-5D160-K0iNCP15..5D..4FC..F200308-200501

main71603-5D170-B0iNCP15..5D..4FC..F200303-200308

main71603-5D180-A1iSCP10..4HC200212-200501

main71603-5D340-A0iSCP13..CLA200212-200501

main71603-5D350-A0iNCP15..CLA200212-200501

main71603-5D360-C0iNCP10,13200212-200501

main71603-5D370-C0iNCP10,13200212-200501

71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH

main71604-52010-B0iSCP10..B199901-199908

main71604-52010-H0iSCP10..B199901-199908

main71604-52011-B0iSCP10..B199908-200101

main71604-52011-H0iSCP10..B199908-200101

main71604-52020-B0iSCP10..B199901-199908

main71604-52020-H0iSCP10..B199901-199908

main71604-52021-B0iSCP10..B199908-200112

main71604-52021-H0iSCP10..B199908-200112

main71604-52111-B0iNCP10,SCP10..3D..U199908-200101

main71604-52111-H0iNCP10,SCP10..3D..U199908-200101

main71604-52121-B0iNCP10,SCP10..3D..U199908-200112

main71604-52121-H0iNCP10,SCP10..3D..U199908-200112

main71604-52150-B0iSCP10..5D..U199901-199908

main71604-52150-H0iSCP10..5D..U199901-199908

main71604-52151-B0iNCP10,SCP10..5D..U199908-200101

main71604-52151-H0iNCP10,SCP10..5D..U199908-200101

main71604-52160-B0iSCP10..5D..U199901-199908

main71604-52160-H0iSCP10..5D..U199901-199908

main71604-52161-B0iNCP10,SCP10..5D..U199908-200112

main71604-52161-H0iNCP10,SCP10..5D..U199908-200112

main71604-52280-C1iNCP10,13..RS200112-200212

main71604-52360-B0iSCP10..B199908-200101

main71604-52360-H0iSCP10..B199908-200101

main71604-52370-B0iSCP10..B199908-200112

main71604-52370-H0iSCP10..B199908-200112

main71604-52390-B1iNCP10..CLA199909-200101

main71604-52390-B2iNCP10..CLA200112-200212

main71604-52410-B1iSCP10..B200101-200212

main71604-52410-H1iSCP10..B200101-200112

main71604-52420iSCP10..B200212-200501

main71604-52420-B1iSCP10..B200212-200501

main71604-52420-H1iSCP10..B200101-200112

main71604-52430-B1iSCP10..B200101-200212

main71604-52430-H1iSCP10..B200101-200112

main71604-52440-B1iSCP10..B200101-200212

main71604-52440-H1iSCP10..B200101-200112

main71604-52570-B0iNCP10,SCP10..U200101-200112

main71604-52570-H0iNCP10,SCP10..U200101-200112

main71604-52580-B0iNCP10,SCP10..U200112-200212

SHADOW GRAY,TRIM1#

main71604-52580-H0iNCP10,SCP10..U200101-200112

main71604-52640-B0iSCP10..(4FC,5F)..F200212-200501

main71604-52650-B0iSCP10..F200112-200212

main71604-52660-B0iSCP10..F200112-200212

main71604-52670-B1iNCP10..U;SCP10..F200112-200212

main71604-52680-B1iNCP10..U;SCP10..F; SCP10..F200112-200212

main71604-52690-B1iNCP10..U;SCP10..F200112-200212

main71604-52700-B1iNCP10..U;SCP10..F200112-200212

main71604-52710-B0iNCP15..F200212-200501

main71604-52720-B0iNCP15..F200112-200212

main71604-52730-B1iNCP15..F200112-200212

main71604-52740-B1iNCP15..F200112-200212

main71604-52750-B0iNCP15..5D..4FC..U; NCP15..U200112-200212

main71604-52760-B0iNCP15..5D..4FC..CLA; NCP15..CLA200112-200212

main71604-52770-C0iNCP10..RS200112-200212

main71604-52B00-A0iNCP15..5D..4FC..F200404-200501

main71604-52B10-A0iSCP1#..5D..(4FC,CVFC)..(F,U)200404-200501

main71604-5C120-B0iSCP10..5D..4FC..F200303-200308

main71604-5C160-A0iSCP13..U200404-200405

main71604-5C160-B0iSCP1#..5D..(4FC,5F,CVFC)..(F,U); SCP1#..5D..(4FC,CVFC)..(F,U)200212-200308

main71604-5C160-K0iSCP1#..5D..(4FC,CVFC)..(F,U)200308-200501

main71604-5C190-B0iNCP15..5D..4FC..F; NCP15..5D..F200212-200308

main71604-5C190-K0iNCP15..5D..4FC..F200308-200501

main71604-5C200-B0iNCP15..U200212-200501

main71604-5C210-A1iSCP10..4HC200212-200501

main71604-5C380-A0iSCP13..CLA200212-200501

main71604-5C390-A0iNCP15..CLA200212-200501

main71604-5C400-C0iNCP10,13200212-200501

main71604-5C410-C0iNCP10,13200212-200501

71629COVER, REAR SEAT CUSHION HINGE

main71629-52010-B0iSCP10..5D..4FC..F200209-200212

main71629-52010-B1iNCP10,SCP10..B,CLA,U; SCP10..B200208-200212

DK.GRAY,TRIM1#

main71629-52010-H0iNCP10,SCP10..B,U199901-200112

FRENCH TURQUOISE,TRIM7#

71693COVER, REAR SEAT CUSHION HINGE, LOWER RH

main71693-52010-B0iNCP10,SCP10..B,CLA,U200112-200208

main71693-52010-B1iNCP10,SCP10..B,CLA,U; SCP10..B200208-200212

main71693-52010-H0iNCP10,SCP10..B,U199901-200112

main71693-52040-B1iSCP13..U200212-200501

DK.GRAY,TRIM0#,96,98

71694COVER, REAR SEAT CUSHION HINGE, LOWER LH

main71694-52010-B0iNCP10,13..RS200010-200112

main71694-52010-B1iNCP10,13..RS200204-200212

main71694-52010-H0iNCP10,SCP10..B,U199901-200112

main71694-52030-B1iSCP13..U200212-200501

DK.GRAY,TRIM0#,96,98

71769ACLIP, REAR SEATBACK BOARD

main90467-10018×18iSCP10..5D..4FC..F200209-200212

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-52010-B0iSCP10..5D..4FC..F200209-200212

main71878-52010-B1iNCP10,SCP10..B,CLA,U; SCP10..B200208-200212

DK.GRAY,TRIM1#

main71878-52010-H0iNCP10,SCP10..B,U199901-200112

FRENCH TURQUOISE,TRIM7#

71879ACOVER, REAR SEAT RECLINING, INNER LH

main71879-52010-B0iNCP10,13..RS200010-200204

SHADOW GRAY,TRIM9#

main71879-52010-B1iNCP10,13..RS200204-200212

DK.GRAY,TRIM9#

main71879-52010-H0iNCP10,SCP10..B,U199901-200112

FRENCH TURQUOISE,TRIM7#

71887CCARPET, REAR SEAT CUSHION

main71887-52010-B0iNCP10,13..RS; NCP10,SCP10..B,CLA,U; SCP10..B200112-200204

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#

main71887-52010-B1iNCP10,13..RS; NCP10,SCP10..B,CLA,U; SCP10..B200204-200212

DK.GRAY,TRIM1#; DK.GRAY,TRIM9#

71893BCARPET, REAR SEAT CUSHION, UNDER RH

main71893-52010-B0iNCP10,13..RS200010-200204

SHADOW GRAY,TRIM9#

main71893-52010-B1iNCP10,13..RS; NCP10,SCP10..B,CLA,U; SCP10..B200204-200212

DK.GRAY,TRIM1#; DK.GRAY,TRIM9#

71894BCARPET, REAR SEAT CUSHION, UNDER LH

main71894-52010-B0iNCP10,13..RS; NCP10,SCP10..B,CLA,U; SCP10..B200112-200204

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#

main71894-52010-B1iNCP10,13..RS; NCP10,SCP10..B,CLA,U; SCP10..B200204-200212

DK.GRAY,TRIM1#; DK.GRAY,TRIM9#

71931ASUPPORT, REAR SEAT HEADREST

main71930-47010-A0×2iNCP15,SCP10..5D..4FC..F200404-200501

main71930-47010-B2×2iNCP10,13..RS; NCP10..CLA;NCP15,SCP10..CLA,U; NCP10..U;NCP15,SCP10..B,F200112-200212

main71930-52010-B0×2iNCP15;SCP10..3D..4FC..U;NCP10,SCP10..3D..(B,CLA,F);NCP10,SCP10..5D..(B,CLA,F,U)199908-200101

main71930-52010-B4×2iNCP10,15..CLA; NCP15,SCP10..B,F200101-200112

main71930-52010-G0×2iNCP15..F,U;SCP10..3D..(B,F);SCP10..3D..4FC..U;NCP10,SCP10..5D..(B,F,U)199908-200101

main71931-47010-A0×2iNCP15,SCP10..5D..4FC..F200404-200501

main71931-47010-B2×2iNCP10..CLA;NCP15..5D..CLA; NCP15,SCP10..B,F; NCP15..5D..4FC..CLA200112-200208

main71931-52010-B0×2iNCP10,15,SCP10..B,CLA,F,U199908-200101

main71931-52010-B4×2iNCP10,15..CLA; NCP15,SCP10..B,F200101-200112

main71931-52010-G0×2iNCP10,15,SCP10..B,F,U199908-200101

71940AHEADREST ASSY, REAR SEAT

main71910-52010-B0×2iNCP15,SCP10..B,F199908-200112

main71910-52010-H0×2iNCP15,SCP10..B,F199908-200112

main71910-52030-B0×2iNCP10,15,SCP10..3D..U199901-200101

main71910-52030-H0×2iNCP10,15,SCP10..3D..U199901-200101

main71910-52040-B0×2iNCP10,15,SCP10..5D..U199901-200101

main71910-52040-H0×2iNCP10,15,SCP10..5D..U199901-200101

main71910-52100-A1×2iNCP15,SCP13..CLA200212-200501

main71910-52100-B0×2iNCP15..CLA;NCP10..3D..CLA200112-200208

main71910-52100-B1×2iNCP10,15..CLA199909-200101

main71910-52130-C0×2iNCP10,13..RS200112-200212

main71910-52170-B0×2iNCP10..U;NCP15,SCP10..F200112-200212

main71910-52190-B0×2iNCP10,15,SCP10..U; NCP15..5D..4FC..U200112-200212

main71910-52190-H0×2iNCP15..U;SCP10..3D..4FC..U;NCP10,SCP10..5D..U200101-200112

main71910-52340-B0×2iNCP15,SCP10..5D..5F..F; NCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

main71910-52350-B0×2iNCP15,SCP13..U200212-200501

main71910-52430-A0×2iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200404-200501

72030ADJUSTER ASSY, REAR NO.1 SEAT

main72030-52010iNCP10,13,SCP10..B,CLA,RS,U200112-200212

main72030-52020iSCP10..B,U199901-199908

72063AARM SUB-ASSY, REAR SEATBACK LOCK, RH

main72063-52010iSCP10..5D..4FC..F200209-200212

72064AARM SUB-ASSY, REAR SEATBACK LOCK, LH

main72064-52010iNCP10,13,SCP10..B,CLA,RS,U200112-200212

main72064-52020iNCP10,13,SCP1#..B,CLA,RS,U200212

72173HANDLE, REAR SEAT TRACK ADJUSTING

main72173-52010iSCP10..5D..4FC..F200209-200212

72265ACOVER, SEAT TRACK UPPER RAIL, RH

main72265-52010-B0iNCP10,SCP10..B,CLA,U199901-200007

SHADOW GRAY,TRIM1#

main72265-52010-H0iNCP10,SCP10..B,U199901-200007

FRENCH TURQUOISE,TRIM7#

main72265-52011-B0iNCP10,SCP10..B,CLA,U200007-200204

SHADOW GRAY,TRIM1#

main72265-52011-B1iNCP10,13..RS; NCP10,SCP10..B,CLA,U; SCP10..B200204-200212

DK.GRAY,TRIM1#; DK.GRAY,TRIM9#

main72265-52011-H0iNCP10,SCP10..B,U200007-200112

FRENCH TURQUOISE,TRIM7#

72266ACOVER, SEAT TRACK UPPER RAIL, LH

main72266-52010-B0iNCP10,SCP10..B,CLA,U199901-200007

SHADOW GRAY,TRIM1#

main72266-52010-H0iNCP10,SCP10..B,U199901-200007

FRENCH TURQUOISE,TRIM7#

main72266-52011-B0iNCP10,13..RS; NCP10,SCP10..B,CLA,U200112-200204

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#

main72266-52011-B1iNCP10,13..RS; NCP10,SCP10..B,CLA,U; SCP10..B200204-200212

DK.GRAY,TRIM1#; DK.GRAY,TRIM9#

main72266-52011-H0iNCP10,SCP10..B,U200007-200112

FRENCH TURQUOISE,TRIM7#

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-52010-B0×2iNCP10,SCP10..3D..(B,CLA,U)199901-200212

SHADOW GRAY,TRIM1#

main72615-52010-B1×2iNCP10,13,SCP10..3D..(B,RS)200212-200501

DK.GRAY,TRIM9#

main72615-52010-H0×2iNCP10,SCP10..3D..(B,U)199901-200112

FRENCH TURQUOISE,TRIM7#

72637AHANDLE, REAR SEAT LOCK

main72637-52010-B0×2iNCP10,13..RS; NCP10,SCP10..B,CLA,U200112-200204

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#

main72637-52010-B1×2iNCP10,13..RS; NCP10,SCP10..B,CLA,U; SCP10..B200204-200212

DK.GRAY,TRIM1#; DK.GRAY,TRIM9#

main72637-52010-H0×2iNCP10,SCP10..B,U199901-200008

FRENCH TURQUOISE,TRIM7#

79955ACOVER, REAR SEAT FRONT BRACKET, RH

main79955-52010-B0iNCP10,SCP10..B,CLA,U; SCP10..B200112-200204

SHADOW GRAY,TRIM1#

main79955-52010-B1iNCP10,SCP10..B,CLA,U; SCP10..B200204-200212

DK.GRAY,TRIM1#

79956DCOVER, REAR SEAT FRONT BRACKET, LH

main79956-52010-B0iNCP10,SCP10..B,CLA,U; SCP10..B200112-200204

SHADOW GRAY,TRIM1#

main79956-52010-B1iNCP10,SCP10..B,CLA,U; SCP10..B200204-200212

DK.GRAY,TRIM1#

7270252010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52010

7270252020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52020

9016740044

main90167-40044

9151381018

main91513-81018

9151581025

main91515-81025

33 parts on this diagram · 8 diagrams in section
