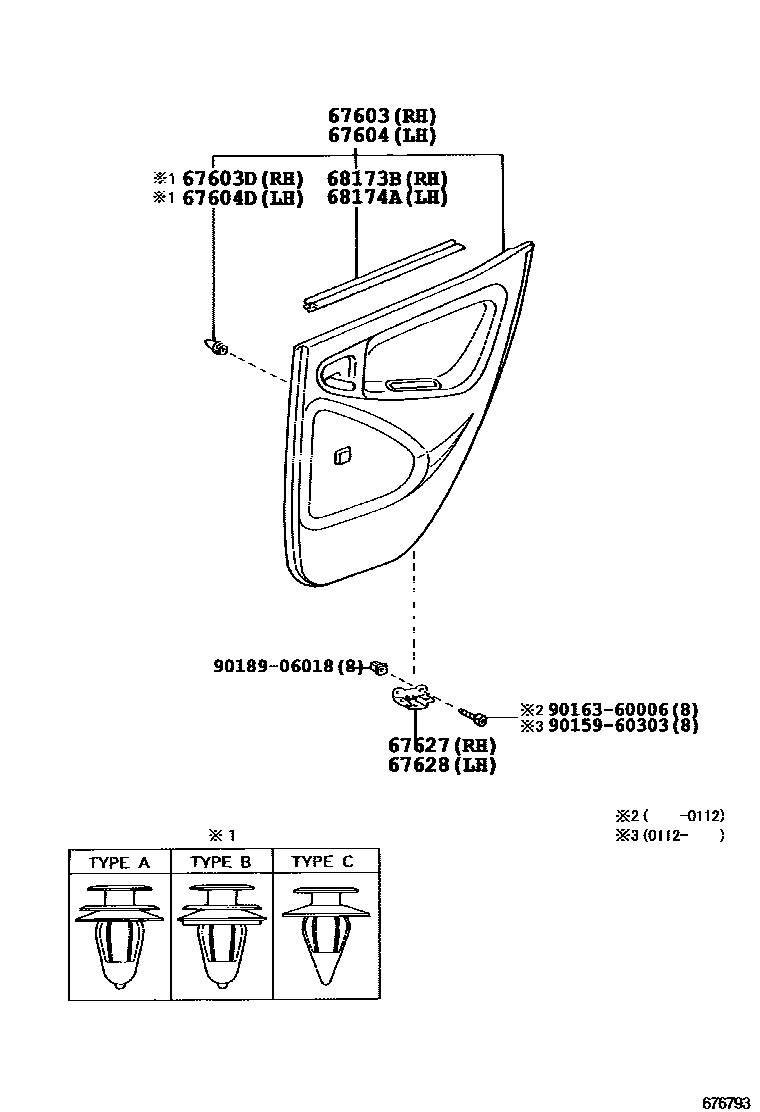

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-52010-B0iSCP10..5D..B199901-200212

main67630-52010-H0iSCP10..5D..B199901-200112

main67630-52010-K0iSCP10..5D..B200212-200501

main67630-52040-B2iNCP15,SCP10..5D..F200112-200212

main67630-52040-H2iNCP15,SCP10..5D..F199901-200112

main67630-52040-K0iNCP15,SCP10..5D..(4FC,5F)..F200212-200501

main67630-52050-B0iNCP15,SCP10..5D..F199901-200101

main67630-52050-H0iNCP15,SCP10..5D..F199901-200101

main67630-52051-B3iNCP15,SCP10..5D..F200101-200112

main67630-52051-H3iNCP15,SCP10..5D..F200101-200112

main67630-52052-B3iNCP10..5D..U;NCP15,SCP10..5D..F200112-200212

main67630-52053-K0iNCP15,SCP10..5D..5F..F; NCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

main67630-52070-B3iNCP10,15,SCP10..5D..U199901-200101

main67630-52070-H3iNCP10,15,SCP10..5D..U199901-200101

main67630-52071-B5iNCP10,15,SCP10..5D..U200101-200112

main67630-52071-H5iNCP10,15,SCP10..5D..U200101-200112

main67630-52072-K0iNCP15,SCP13..U200212-200501

main67630-52290-B0iNCP10,15..5D..CLA199909-200112

main67630-52290-K0iNCP15,SCP13..CLA200212-200501

main67630-52350-K0iNCP10,13..5D..RS200112-200212

main67630-52350-K1iNCP10,13..5D200212-200501

main67630-52A10-A0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200404-200501

IVORY,TRIM0#

main67630-5C020-A0iSCP10..4HC200212-200501

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050×2iNCP10,15,SCP1#..5D..(4FC,5F,CVFC)..(B,F,U); SCP10..4HC;NCP1#,SCP13..5D..(CLA,RS)200101

main67771-16170×3iNCP15,SCP1#..5D..(4FC,5F,CVFC)..(B,F,U); SCP10..4HC;NCP1#,SCP13..5D..(CLA,RS)200212

main67771-28020×2iSCP10..5D..B200212-200307

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-52010-B0iSCP10..5D..B199901-200112

main67640-52010-H0iSCP10..5D..B199901-200112

main67640-52010-K0iSCP10..5D..B200212-200501

main67640-52040-B2iNCP15,SCP10..5D..F200112-200212

main67640-52040-H2iNCP15,SCP10..5D..F199901-200112

main67640-52040-K0iNCP15,SCP10..5D..(4FC,5F)..F200212-200501

main67640-52050-B0iNCP15,SCP10..5D..F199901-200101

main67640-52050-H0iNCP15,SCP10..5D..F199901-200101

main67640-52051-B3iNCP15,SCP10..5D..F200101-200112

main67640-52051-H3iNCP15,SCP10..5D..F200101-200112

main67640-52052-B3iNCP10..5D..U;NCP15,SCP10..5D..F200112-200212

main67640-52053-K0iNCP15,SCP10..5D..5F..F; NCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

main67640-52070-B3iNCP10,15,SCP10..5D..U199901-200101

main67640-52070-H3iNCP10,15,SCP10..5D..U199901-200101

main67640-52071-B5iNCP10,15,SCP10..5D..U200101-200112

main67640-52071-H5iNCP10,15,SCP10..5D..U200101-200112

main67640-52072-K0iNCP15,SCP13..U200212-200501

main67640-52290-B0iNCP10,15..5D..CLA200112-200212

main67640-52290-K0iNCP15,SCP13..CLA200212-200501

main67640-52350-K0iNCP10,13..5D..RS200112-200212

main67640-52350-K1iNCP10,13..5D200212-200501

main67640-52A00-A0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200404-200501

IVORY,TRIM0#

main67640-5C030-A0iSCP10..4HC200212-200501

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050×2iNCP10,15,SCP1#..5D..(4FC,5F,CVFC)..(B,F,U); SCP10..4HC;NCP1#,SCP13..5D..(CLA,RS)200101

main67771-16170×2iNCP10,15,SCP1#..5D..(4FC,5F,CVFC)..(B,F,U); SCP10..4HC;NCP1#,SCP13..5D..(CLA,RS)200101

main67771-28020×2iNCP1#,SCP10..5D200112-200212

67627BRACKET, REAR DOOR TRIM, RH

main67625-52010iNCP1#,SCP10..5D199901-200112

67628BRACKET, REAR DOOR TRIM, LH

main67625-52010iNCP1#,SCP10..5D199901-200112

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-52020iNCP1#,SCP10..5D200112-200201

main68173-52021iNCP1#,SCP10..5D200201-200212

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-52010iNCP1#,SCP10..5D199901-200112

main68174-52011iNCP1#,SCP10..5D200201-200212

9015960303

main90159-60303

9016360006

main90163-60006

9018906018

main90189-06018

11 parts on this diagram · 2 diagrams in section
