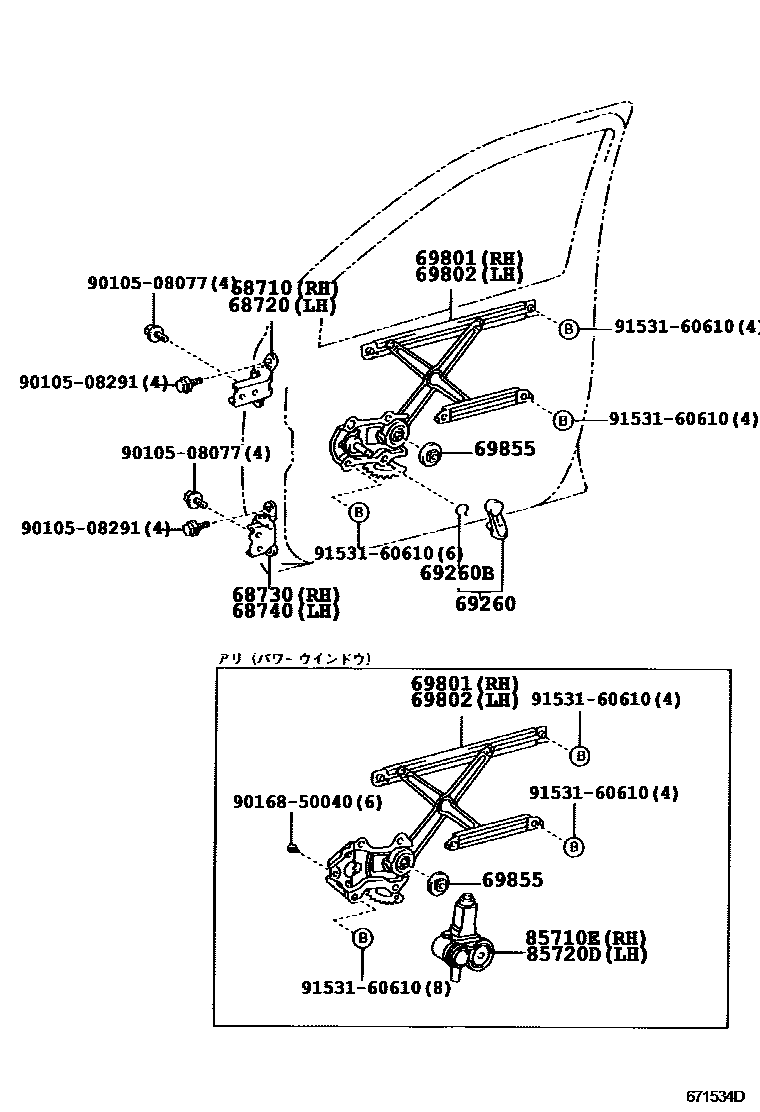

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52010iNCP1#,SCP10199901-200112

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52010iNCP1#,SCP10199901-200112

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iNCP1#,SCP10199901-200112

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iNCP1#,SCP1#200212-200501

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-52010-B0×2iSCP10..B199901-200212

MD.GRAY,TRIM1#

main69260-52010-B3×2iSCP10..B200212-200501

MD.GRAY,TRIM9#

main69260-52010-G0×2iSCP10..B199901-200112

MIST GREEN,TRIM7#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iSCP10..B200112-200212

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52010iNCP1#,SCP10..CLA,F,RS,U199901-200112

main69810-52020iSCP10..B199901-200112

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52010iNCP1#,SCP10..CLA,F,RS,U199901-200112

main69820-52020iSCP10..B199901-200112

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iNCP1#,SCP10200112-200212

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52010iNCP1#,SCP10..CLA,F,RS,U199901-200112

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52020iNCP1#,SCP10..CLA,F,RS,U199901-200112

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9153160610

main91531-60610

15 parts on this diagram · 1 diagram in section
