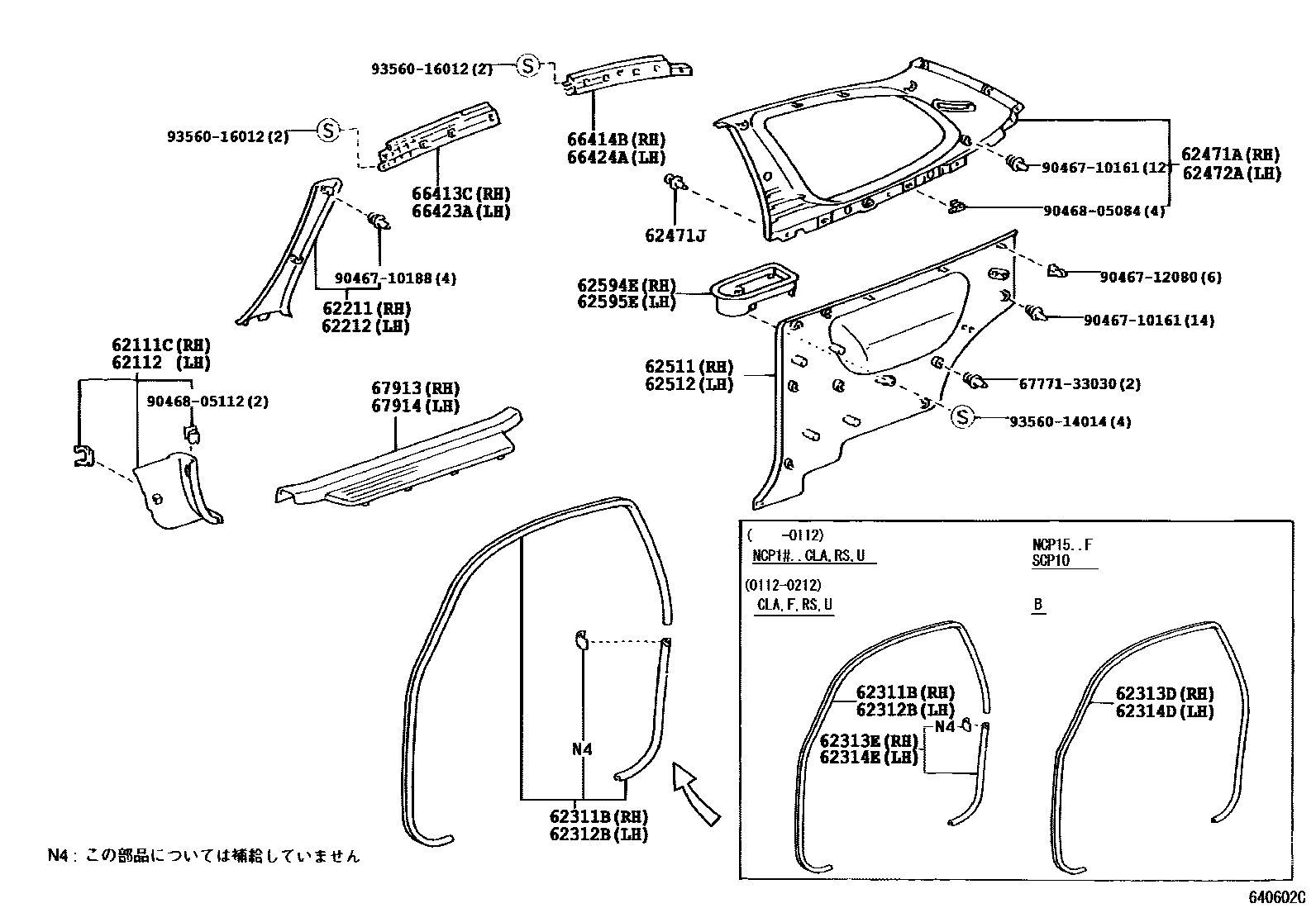

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-52020-B0iNCP10,13..RS200112-200212

SHADOW GRAY,TRIM1#

main62111-52020-B2iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

main62111-52020-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

main62111-52020-H0iNCP10,15,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

62112BOARD, COWL SIDE TRIM, LH

main62112-52010-B0iNCP10,13..RS200112-200212

SHADOW GRAY,TRIM1#

main62112-52010-B2iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

main62112-52010-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

main62112-52010-H0iNCP10,15,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

62211GARNISH, FRONT PILLAR, RH

main62211-52010-B0iNCP10,13..RS200112-200206

LT. GRAY,TRIM9#

main62211-52010-G0iNCP10,15,SCP10..B,F,U199901-200112

LT. GREEN,TRIM7#

main62211-52011-A0iNCP15..5D..4FC..F;SCP1#..5D..ATM..(F,U)200212-200501

IVORY,TRIM0#

sub62211-0D050

main62211-52011-B0iNCP10,13..RS200206-200210

LT. GRAY,TRIM9#

sub62211-0D050

62212GARNISH, FRONT PILLAR, LH

main62212-52010-B0iNCP10,13..RS200112-200206

LT. GRAY,TRIM1#

main62212-52010-G0iNCP10,15,SCP10..B,F,U199901-200112

LT. GREEN,TRIM7#

main62212-52011-A0iNCP15..5D..4FC..F;SCP1#..5D..ATM..(F,U)200212-200501

IVORY,TRIM0#

sub62212-0D050

main62212-52011-B0iNCP10,13..RS200206-200212

LT. GRAY,TRIM9#

sub62212-0D050

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52010-B0iNCP10,15,SCP10..3D..(CLA,F,U)200112-200212

SHADOW GRAY,TRIM1#

main62311-52010-H0iNCP10,15..3D..U199908-200112

FRENCH TURQUOISE,TRIM7#

main62311-52020-B0iNCP10,13..5D..RS200010-200112

SHADOW GRAY,TRIM9#

main62311-52020-H0iNCP10,15..5D..U199908-200112

FRENCH TURQUOISE,TRIM7#

main62311-52100-B0iNCP1#,SCP10..3D200212-200307

DK.GRAY,TRIM9#

main62311-52101-B0iNCP1#,SCP10..3D200307-200501

DK.GRAY,TRIM9#

main62311-52110-B0iSCP10..4HC200212-200307

DK.CHARCOAL,TRIM0#

main62311-52110-B1iNCP1#,SCP1#..5D..(4FC,5F,CVFC)200212-200307

DK.GRAY,TRIM9#

main62311-52111-B0iSCP10..4HC200307-200501

DK.CHARCOAL,TRIM0#

main62311-52111-B1iNCP15..CLA,U;NCP15,SCP10..5D..5F..F;NCP10,13,SCP1#..5D..(B,CLA,RS)200307-200501

DK.GRAY,TRIM9#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52010-B0iNCP10,15..3D..(CLA,U)199908-200112

SHADOW GRAY,TRIM1#

main62312-52010-H0iNCP10,15..3D..U199908-200112

FRENCH TURQUOISE,TRIM7#

main62312-52020-B0iNCP10,15..5D..(CLA,U)199908-200112

SHADOW GRAY,TRIM1#

main62312-52020-H0iNCP10,15..5D..U199908-200112

FRENCH TURQUOISE,TRIM7#

main62312-52080-B0iNCP1#,SCP10..3D200212-200307

DK.GRAY,TRIM9#

main62312-52081-B0iNCP1#,SCP10..3D200307-200501

DK.GRAY,TRIM9#

main62312-52100-B0iSCP10..4HC200212-200307

DK.CHARCOAL,TRIM0#

main62312-52100-B1iNCP1#,SCP1#..5D..(4FC,5F,CVFC)200212-200307

DK.GRAY,TRIM9#

main62312-52101-B0iSCP10..4HC200307-200501

DK.CHARCOAL,TRIM0#

main62312-52101-B1iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200404-200501

DK.GRAY,TRIM0#,96,98

62313DTRIM, FRONT DOOR OPENING, RH

main62313-52010-B0iSCP10..3D;NCP15..3D..F199901-200112

SHADOW GRAY,TRIM1#

main62313-52010-H0iSCP10..3D;NCP15..3D..F199901-200112

FRENCH TURQUOISE,TRIM7#

main62313-52020-B0iSCP10..5D;NCP15..5D..F199901-200112

SHADOW GRAY,TRIM1#

main62313-52020-H0iSCP10..5D;NCP15..5D..F199901-200112

FRENCH TURQUOISE,TRIM7#

62313ETRIM, FRONT DOOR OPENING, NO.2 RH

main62313-52030-B0iNCP10,15..3D..(CLA,U)199908-200112

SHADOW GRAY,TRIM1#

main62313-52030-H0iNCP10,15..3D..U199908-200112

FRENCH TURQUOISE,TRIM7#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-52010-B0iSCP10..3D..B200112-200208

SHADOW GRAY,TRIM1#

main62314-52010-H0iSCP10..3D;NCP15..3D..F199901-200112

FRENCH TURQUOISE,TRIM7#

main62314-52020-B0iSCP10..5D..B200112-200112

SHADOW GRAY,TRIM1#

main62314-52020-H0iSCP10..5D;NCP15..5D..F199901-200112

FRENCH TURQUOISE,TRIM7#

62314ETRIM, FRONT DOOR OPENING, NO.2 LH

main62314-52030-B0iNCP10,13..3D..RS200010-200112

SHADOW GRAY,TRIM9#

main62314-52030-H0iNCP10,15..3D..U199908-200112

FRENCH TURQUOISE,TRIM7#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52010-B0iNCP10,13..3D..RS200010-200112

LT. GRAY,TRIM9#

main62471-52010-G0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

LT. GREEN,TRIM7#

main62471-52020-A0iNCP15..5D..4FC..F;SCP1#..5D..ATM..(F,U)200212-200501

IVORY,TRIM0#

main62471-52020-B0iNCP15..CLA,U;NCP15,SCP10..5D..5F..F;NCP10,13,SCP1#..5D..(B,CLA,RS)200212-200501

LT. GRAY,TRIM9#

main62471-52020-G0iNCP10,15,SCP10..5D..(B,F,U)199901-200112

LT. GREEN,TRIM7#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-06133-B0×4iNCP10,15..3D..CLA199909-200112

SHADOW GRAY,TRIM1#

main90467-06133-C0×4iNCP10,13..5D..RS200210-200212

SHADOW GRAY,TRIM9#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52010-B0iNCP1#,SCP10..3D200212-200501

LT. GRAY,TRIM9#

main62472-52010-G0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

LT. GREEN,TRIM7#

main62472-52020-A0iNCP15..5D..4FC..F;SCP1#..5D..ATM..(F,U)200212-200501

IVORY,TRIM0#

main62472-52020-B0iNCP15..CLA,U;NCP15,SCP10..5D..5F..F;NCP10,13,SCP1#..5D..(B,CLA,RS)200212-200501

LT. GRAY,TRIM9#

main62472-52020-G0iNCP10,15,SCP10..5D..(B,F,U)199901-200112

LT. GREEN,TRIM7#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-52010-B0iNCP10,15,SCP10..3D..(B,CLA,F,U)200112-200208

SHADOW GRAY,TRIM1#

main62511-52010-H0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

main62511-52011-B0iNCP10,15,SCP10..3D..(B,CLA,F,U)200208-200212

SHADOW GRAY,TRIM1#

main62511-52011-B1iNCP1#,SCP10..3D200212-200501

DK.GRAY,TRIM9#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-52010-B0iNCP10,15,SCP10..3D..(B,CLA,F,U)200112-200208

SHADOW GRAY,TRIM1#

main62512-52010-H0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

main62512-52011-B0iNCP10,15,SCP10..3D..(B,CLA,F,U)200208-200212

SHADOW GRAY,TRIM1#

main62512-52011-B1iNCP1#,SCP10..3D200212-200501

DK.GRAY,TRIM9#

62594EPOCKET, QUARTER TRIM, RH

main62594-16040-B1iNCP10,13..3D..RS200210-200212

SHADOW GRAY,TRIM9#

main62594-16040-B2iNCP1#,SCP10..3D200212-200501

DK.GRAY,TRIM9#

main62594-16040-H0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

62595EPOCKET, QUARTER TRIM, LH

main62595-16020-B1iNCP10,15,SCP10..3D..(B,CLA,F,U)200112-200212

SHADOW GRAY,TRIM1#

main62595-16020-B2iNCP1#,SCP10..3D200212-200501

DK.GRAY,TRIM9#

main62595-16020-H0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

66413CSPACER, SIDE RAIL, FRONT RH

main66413-52010iNCP1#,SCP10199901-200105

main66413-52011iNCP1#,SCP1#200212

main66413-52020iNCP1#,SCP10..CLA,F,RS,U199901-200105

main66413-52021iNCP1#,SCP10..CLA,F,RS,U200112-200212

66414BSPACER, SIDE RAIL, REAR RH

main66414-52010iNCP1#,SCP10..3D200212

main66414-52020iNCP1#,SCP10..CLA,F,RS,U199901-200112

main66414-52170iNCP1#,SCP1#..5D200212

66423ASPACER, SIDE RAIL, FRONT LH

main66423-52010iNCP1#,SCP10199901-200105

main66423-52011iNCP1#,SCP10200105-200112

main66423-52020iNCP1#,SCP10..CLA,F,RS,U199901-200105

main66423-52021iNCP1#,SCP10..CLA,F,RS,U200105-200112

main66423-52140iNCP1#,SCP1#200212

66424ASPACER, SIDE RAIL, REAR LH

main66424-52010iNCP1#,SCP10199901-200112

main66424-52020iNCP1#,SCP10..CLA,F,RS,U200112-200212

main66424-52160iNCP1#,SCP1#..5D200212

67913PLATE, FRONT DOOR SCUFF, RH

main67911-52010-B0iNCP10..3D..RS200210-200212

SHADOW GRAY,TRIM9#

main67911-52040-B0iNCP13..5D200210-200212

SHADOW GRAY,TRIM9#

main67911-52090-B0iNCP13..3D200212-200501

DK.GRAY,TRIM9#

main67911-52120-B0iNCP15,SCP13..CLA200212-200501

DK.GRAY,TRIM9#

main67911-52130-B0iNCP13..5D200212-200501

DK.GRAY,TRIM9#

main67913-52010-B0iNCP10..3D..RS200010-200112

SHADOW GRAY,TRIM9#

main67913-52010-B2iNCP10,15,SCP10..3D200212-200501

DK.GRAY,TRIM9#

main67913-52010-H0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

main67913-52020-B0iNCP10,15,SCP10..5D..(B,CLA,F,U)200112-200212

SHADOW GRAY,TRIM1#

main67913-52020-B2iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

main67913-52020-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

main67913-52020-H0iNCP10,15,SCP10..5D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

67914PLATE, FRONT DOOR SCUFF, LH

main67912-52010-B0iNCP13..3D200010-200112

SHADOW GRAY,TRIM9#

main67912-52040-B0iNCP13..5D200010-200112

SHADOW GRAY,TRIM9#

main67912-52090-B0iNCP13..3D200212-200501

DK.GRAY,TRIM9#

main67912-52120-B0iNCP15,SCP13..CLA200212-200501

DK.GRAY,TRIM9#

main67912-52130-B0iNCP13..5D200212-200501

DK.GRAY,TRIM9#

main67914-52010-B0iNCP10..3D..RS200210-200212

SHADOW GRAY,TRIM9#

main67914-52010-B2iNCP10,15,SCP10..3D200212-200501

DK.GRAY,TRIM9#

main67914-52010-H0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

main67914-52020-B0iNCP10..5D..RS200210-200212

SHADOW GRAY,TRIM9#

main67914-52020-B2iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

main67914-52020-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

main67914-52020-H0iNCP10,15,SCP10..5D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9046710161

main90467-10161

9046710188

main90467-10188

9046712080

main90467-12080

9046805084

main90468-05084

9046805112

main90468-05112

9356014014

main93560-14014

9356016012

main93560-16012

31 parts on this diagram · 2 diagrams in section
