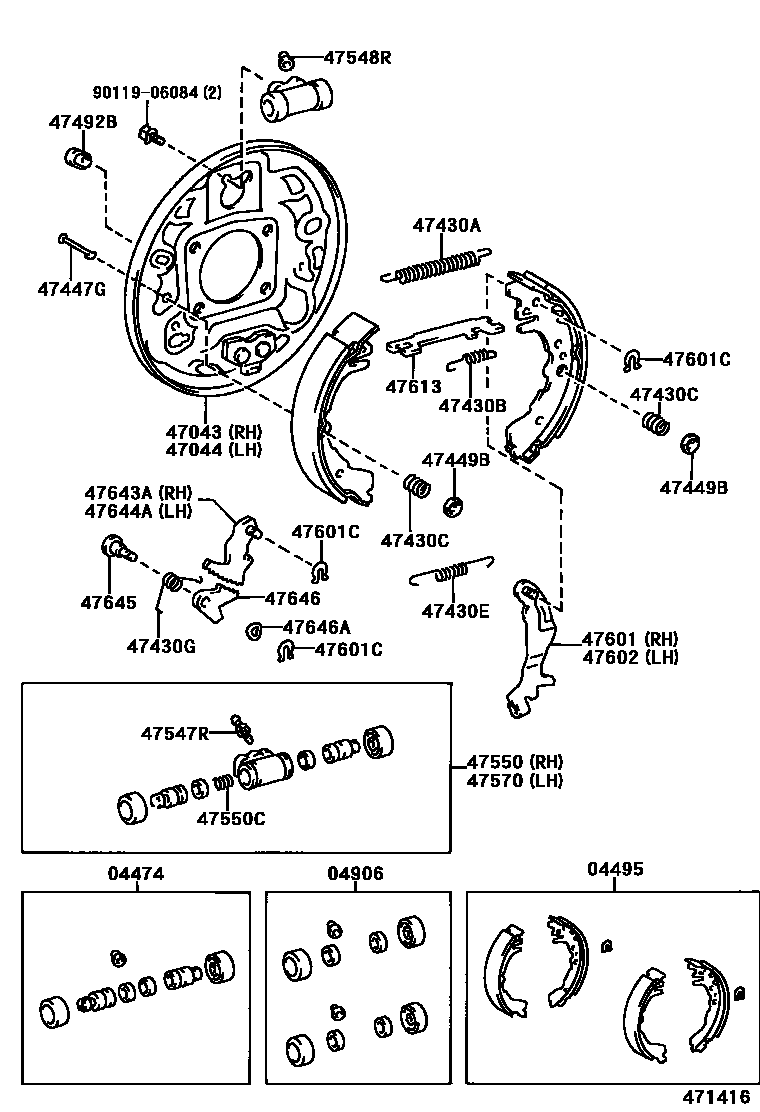

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

04474CYLINDER KIT, REAR WHEEL

main04474-52010iNCP15,SCP1#199901-200501

04495SHOE KIT, REAR BRAKE

main04495-52010iNCP10,SCP10..B,CLA,F,U199903-200212

main04495-52020iNCP15200112-200212

sub04495-52040

main04495-52040iNCP15199908-200112

main04495-59010iSCP10199901-199903

sub04495-52010

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iNCP10,15,SCP10..B,CLA,F,U199901-200212

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52020iNCP10,SCP10..B,CLA,F,U199901-200212

main47043-52030iNCP15199908-200212

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52020iNCP10,SCP10..B,CLA,F,U199901-200212

main47044-52030iNCP15199908-200212

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18081iNCP10,SCP10..B,CLA,F,U199901-200112

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14075iNCP10,SCP10..B,CLA,F,U199901-200112

main90506-14076iNCP10,SCP10..B,CLA,F,U199901-200112

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-16166iNCP10,SCP10..B,CLA,F,U199901-200112

main90501-20147iNCP15199908-200112

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14073iNCP15199908-200112

main90506-16068iNCP10,SCP10..B,CLA,F,U199901-200112

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-14072iNCP15199908-200112

main90949-03085iNCP10,SCP10..B,CLA,F,U199901-200112

main90949-03086iNCP10,SCP10..B,CLA,F,U199901-200112

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10020iNCP10,SCP10..B,CLA,F,U199901-200112

main47447-11010iNCP15199908-200112

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011iNCP10,SCP10..B,CLA,F,U199901-200112

main47449-30030iNCP15199908-200112

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47491-20020iNCP10,SCP10..B,CLA,F,U199901-200112

main47492-32010iNCP15199908-200112

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNCP10,15,SCP10..B,CLA,F,U199901-200212

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP10,15,SCP10..B,CLA,F,U199901-200212

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52010iSCP10199901-199908

main47550-52011iNCP10,15..CLA,F,U199908-200212

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014iNCP10,15,SCP10..B,CLA,F,U200103-200112

main90501-07006iNCP10,15,SCP10..B,CLA,F,U199901-200103

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52010iSCP10199901-199908

main47570-52011iNCP10,15..CLA,F,U199908-200212

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNCP15199908-200212

sub47601-52100

main47601-52010iSCP1#199901-200212

47601CWASHER, C(FOR REAR BRAKE)

main90213-04001iNCP10,SCP10..B,CLA,F,U199901-200112

main90213-06013iNCP15199908-200112

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNCP15199908-200212

sub47602-52100

main47602-52010iNCP10,SCP10..B,CLA,F,U199901-200212

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-52010iNCP10,SCP10..B,CLA,F,U199901-200112

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-52010iNCP10,SCP10..B,CLA,F,U199901-200212

main47643-47010iNCP15199908-200212

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-52010iNCP10,SCP10..B,CLA,F,U199901-200212

main47644-47010iNCP15199908-200212

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-52010iNCP10,SCP10..B,CLA,F,U199901-200212

47646LATCH, AUTOMATIC ADJUST(FOR REAR BRAKE)

main47646-52010iSCP1#199901-200212

main47646-52020iNCP10,SCP10..B,CLA,F,U199901-200212

47646AWASHER, PLATE(FOR REAR BRAKE AUTOMATIC ADJUST LATCH)

main90206-06008iNCP10,SCP10..B,CLA,F,U199901-200212

9011906084

main90119-06084

28 parts on this diagram · 5 diagrams in section
