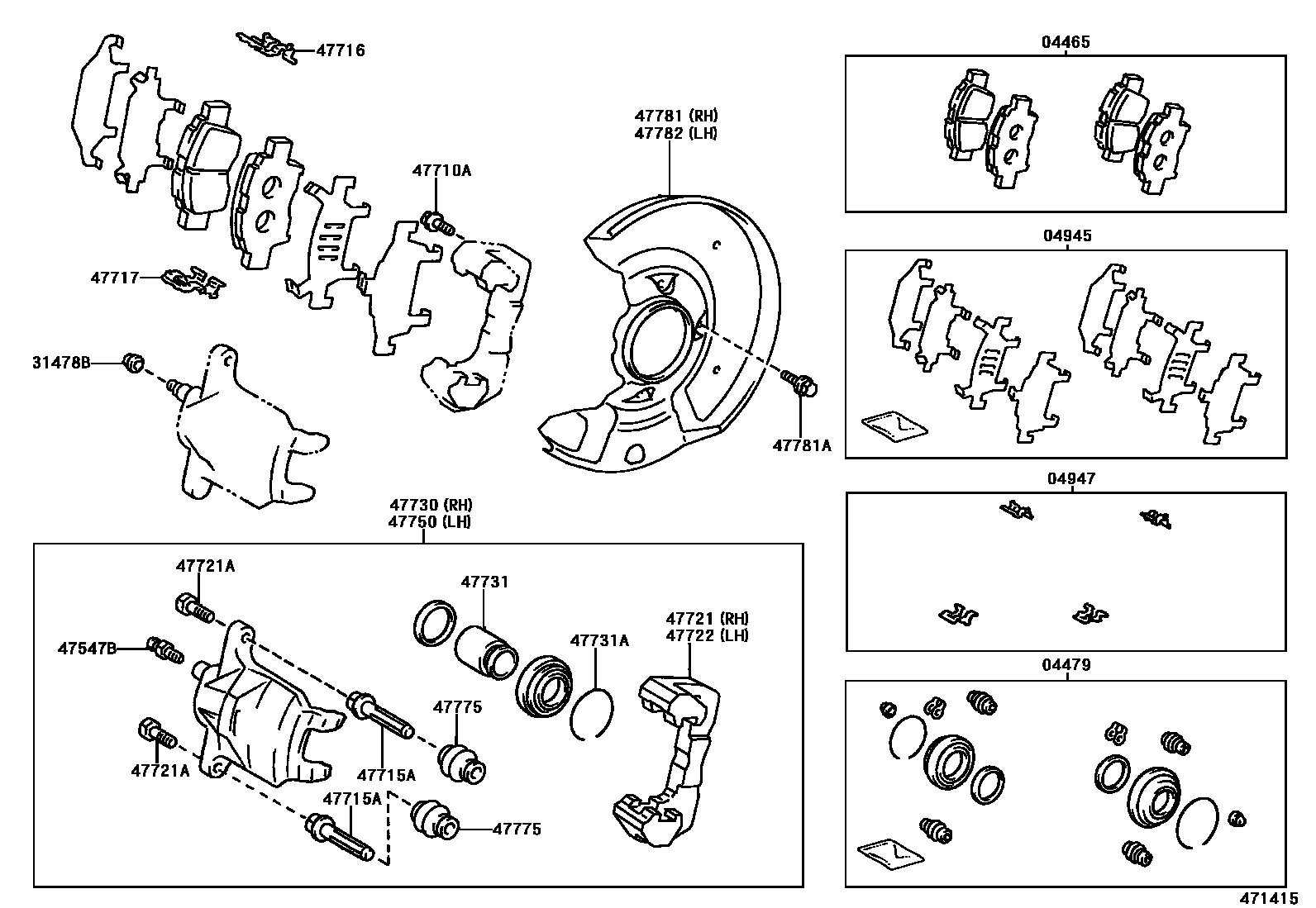

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-17100iNCP10,13..RS200010-200112

sub04465-17101

main04465-17140iNCP10,13..RS200112-200212

main04465-52040iNCP10,15,SCP10..B,CLA,F,U199906-200103

main04465-52041iNCP15,SCP1#200212

main04465-59010iSCP10199901-199906

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-52020iNCP1#,SCP10199903-200112

sub04479-52021

main04479-59010iSCP10199901-199903

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNCP10,13200212

main04945-52010iNCP15,SCP1#200212

main04945-59010iSCP10199901-199903

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52010iNCP10,13200212

main04947-52020iNCP15,SCP1#200212

main04947-59010iSCP10199901-199903

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNCP1#,SCP10199901-200112

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNCP1#,SCP10199901-200112

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314×4iNCP1#,SCP10199901-200112

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010×4iNCP1#,SCP10199901-200112

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52010×2iNCP10,15,SCP10..B,CLA,F,U199901-200112

main47716-52020×2iNCP10,13..RS200112-200212

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52010×2iNCP15,SCP1#200212

main47717-52020×2iNCP10,13..RS200112-200212

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52010iNCP10,15,SCP10..B,CLA,F,U199901-200112

main47721-52020iNCP10,13..RS200112-200212

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNCP1#,SCP10199901-200112

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52010iNCP10,15,SCP10..B,CLA,F,U199901-200112

main47722-52020iNCP10,13..RS200112-200212

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52010iNCP10,15,SCP10..B,CLA,F,U199901-200112

main47730-52020iNCP10,13..RS200010-200112

47731PISTON, FRONT DISC BRAKE

main47731-52010×2iNCP1#,SCP10200112-200212

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003×2iNCP1#,SCP10199901-200112

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52010iNCP10,15,SCP10..B,CLA,F,U199901-200112

main47750-52020iNCP10,13..RS200010-200112

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010×4iNCP1#,SCP10199901-200112

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52010iNCP15,SCP1#200212-200501

main47781-52020iNCP10,13..RS200112-200212

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNCP1#,SCP10199901-200112

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52010iNCP10,15,SCP10..B,CLA,F,U199901-200112

main47782-52020iNCP10,13..RS200112-200212

21 parts on this diagram · 1 diagram in section
