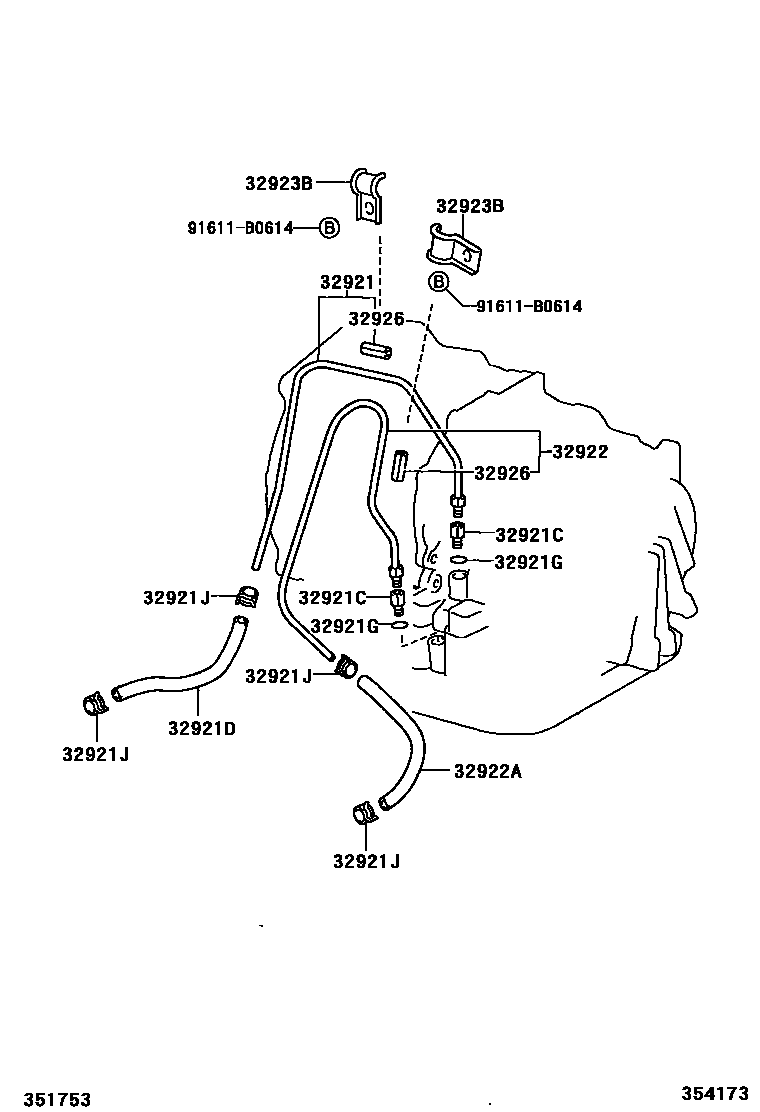

OIL COOLER & TUBE (ATM)

0001 1U440E 0002 1U440E 0003 1U441E 0004 1U340E

32921TUBE, OIL COOLER INLET, NO.1

main32921-52010iSCP10..4FC199901-200112

main32921-52020iNCP10,15..4FC200112-200212

main32921-52040iNCP13..4FC200112-200212

main32921-52090iSCP10..ATM200212-200501

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNCP10,15,SCP10..ATM; NCP13..4FC200212-200501

main90407-14003iNCP13..4FC200112-200212

32921DHOSE(FOR OIL COOLER INLET)

main90445-15044iNCP13..4FC200010-200112

main90445-15046iNCP13..4FC200212-200501

main90445-15047iNCP10,15..4FC199908-200112

main90445-15050iSCP10..4FC199901-200112

main90445-15054iNCP10,15..4FC200212-200501

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iNCP1#,SCP10..ATM200212-200501

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4iNCP1#,SCP10..4FC199901-200112

main96135-51300×4iNCP1#,SCP10..ATM200404-200501

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52010iSCP10..4FC199901-200008

main32922-52011iSCP10..4FC200008-200112

main32922-52020iNCP10,15..4FC200112-200212

main32922-52040iNCP13..4FC200112-200212

main32922-52080iSCP10..4FC200112-200212

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15014iSCP10..4FC200008-200112

main90445-15034iNCP10,15..4FC200112-200212

main90445-15044iNCP13..4FC200212-200501

main90445-15046iNCP1#..4FC199908-200112

main90445-15050iSCP10..4FC199901-200008

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32924-20070×2iSCP10..ATM200212-200501

main90462-10082×2iSCP10..4FC199901-200112

main90462-12085iNCP10,15..4FC200212-200501

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iNCP1#,SCP10..4FC199901-200112

91611B0614

main91611-B0614

10 parts on this diagram · 4 diagrams in section
