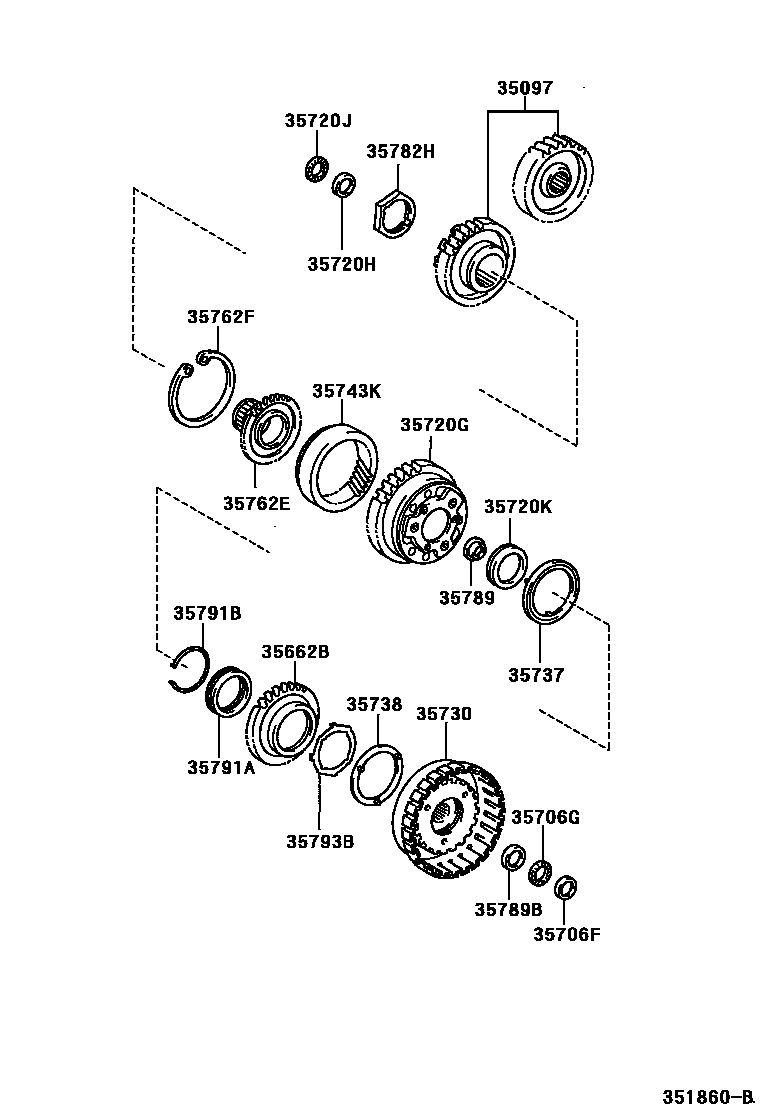

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE
35662BHUB, 2ND BRAKE
35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)
35706GBEARING, THRUST (FOR SUN GEAR REAR)
35720GGEAR ASSY, PLANETARY
35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
35730GEAR ASSY, REAR PLANETARY SUN
35737WASHER, PLANETARY CARRIER THRUST
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743KGEAR, PLANETARY RING
35762EFLANGE, PLANETARY RING GEAR
35762FRING, HOLE SNAP(FOR PLANETARY RING GEAR)
35782HNUT(FOR COUNTER DRIVE GEAR)
35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)
35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)
35791ACLUTCH, 1 WAY, NO.1
35791BRING, HOLE SNAP(FOR 1 WAY CLUTCH)
35793BRETAINER, 1 WAY CLUTCH
20 parts on this diagram · 2 diagrams in section
