TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

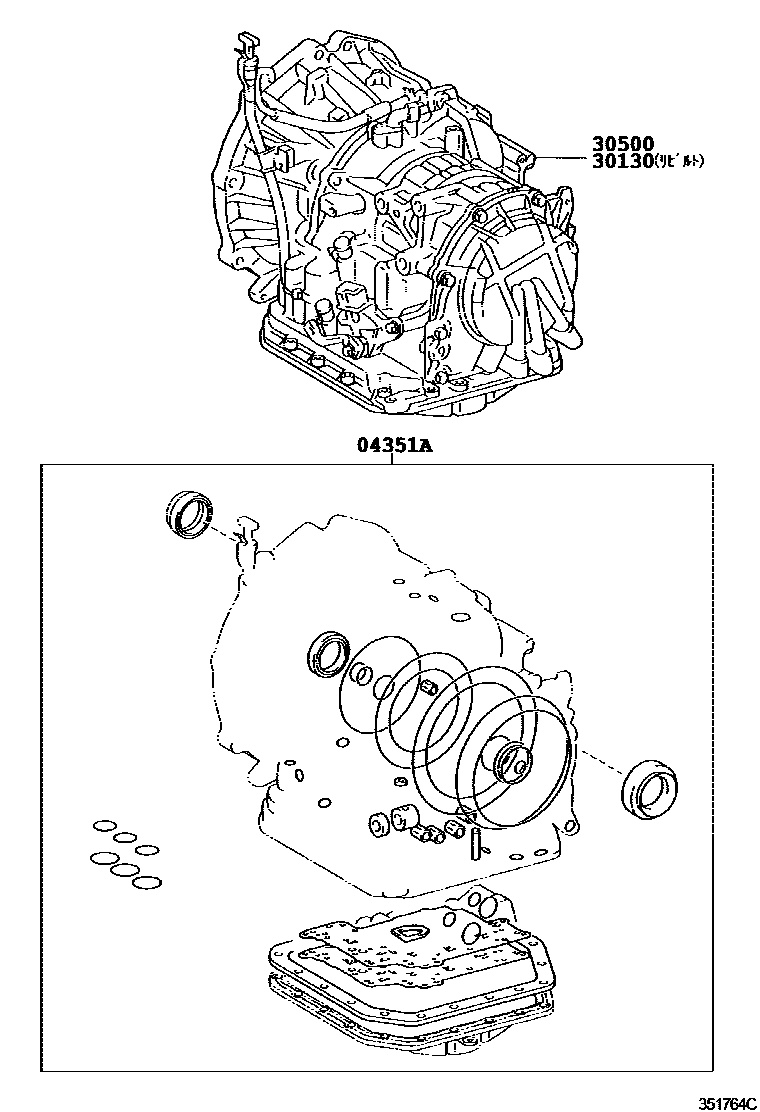

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-52010i199901-199908

main04351-52011i200112-200212

main04351-52020i199901-199908

main04351-52021i199908-200101

main04351-52031i200212-200501

main04351-52040i200112-200212

30130TRANSAXLE ASSY, REBUILT

main30130-52010i199901-200112

main30130-52020i200212-200501

main30130-52040i200212-200501

main30130-52050i199901-200101

main30130-52180i200112-200212

main30130-52260i200212-200501

30500TRANSAXLE ASSY, AUTOMATIC

main30500-52010i199901-200112

main30500-52020i200112-200212

main30500-52040i200212-200501

main30500-52050i199901-200101

main30500-52180i200010-200112

main30500-52260i200212-200501

3 parts on this diagram · 2 diagrams in section
