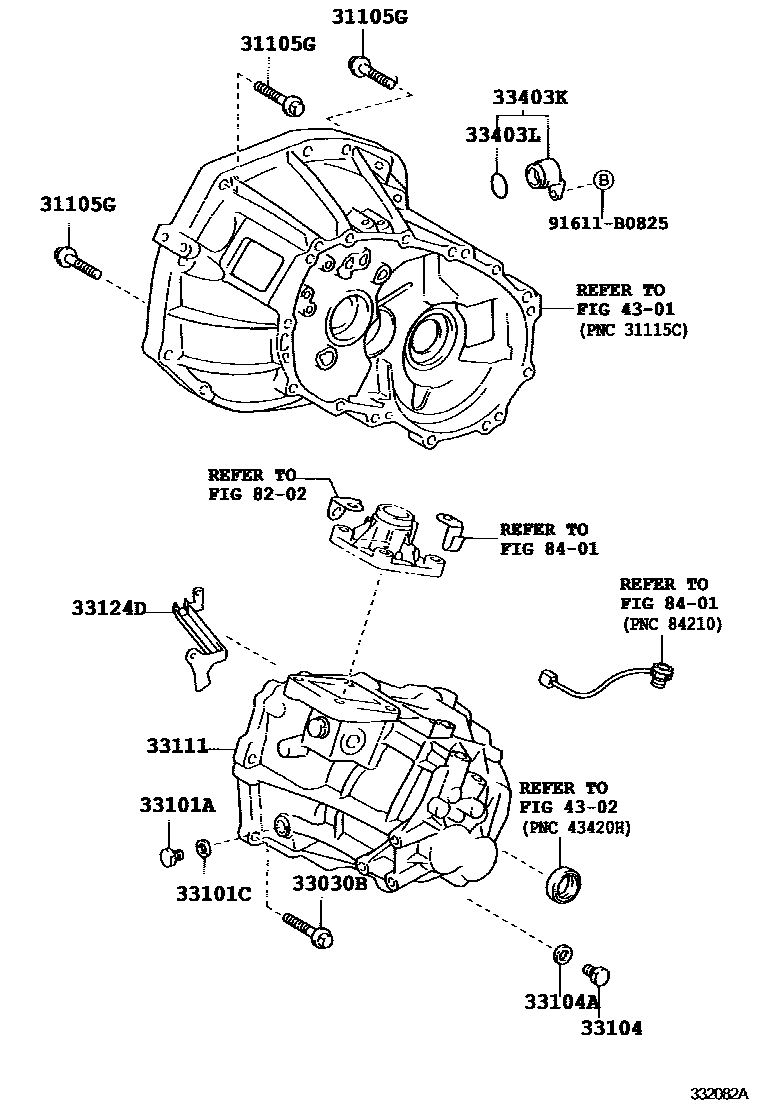

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C550 0002 1C154 0003 1C50F,C56 0004 1C550,���� �������

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08139×5iSCP10..5F200112-200212

main91511-C0835×5iSCP10..5F200212

main91612-61050×7iNCP1#..5F199909-200112

main91619-61245×5iSCP10..5F199901-200112

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064×13iNCP13..5F200112-200212

main90105-08086×3iNCP10..5F200112-200212

main90105-08139×8iSCP10..5F199901-200112

main90105-08353×13iNCP15..5F200112-200212

main90105-08430×16iNCP10..5F200408

main91511-C0835×8iSCP10..5F200212

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNCP10,13,SCP10..5F199901-200112

main90341-18054iNCP15..5F199909-200112

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP1#,SCP10..5F199901-200112

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNCP1#,SCP10..5F200112-200212

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP1#,SCP10..5F199901-200112

33111CASE, MANUAL TRANSMISSION

main33111-16053iNCP10..5F199909-200112

main33111-16063iNCP15..5F200212-200501

sub33111-16064

sub90101-08166

sub90201-08049

main33111-17100iNCP13..5F200010-200112

sub90389-15009

main33111-17101iNCP13..5F200212-200501

sub33111-17102

sub90101-08166

sub90201-08049

sub90389-15009

main33111-52010iSCP10..5F200112-200212

main33111-52020iSCP10..5F..B200101-200112

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iNCP10..5F200212

main33124-12021iNCP13,15..5F200212

main33124-52010iSCP10..5F200112-200212

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNCP10,13,SCP10..5F199901-200112

33403LRING, O

main96711-24030iNCP10,13,SCP10..5F199901-200112

4301

4302

8202

8401

91611B0825

main91611-B0825

15 parts on this diagram · 4 diagrams in section
