TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

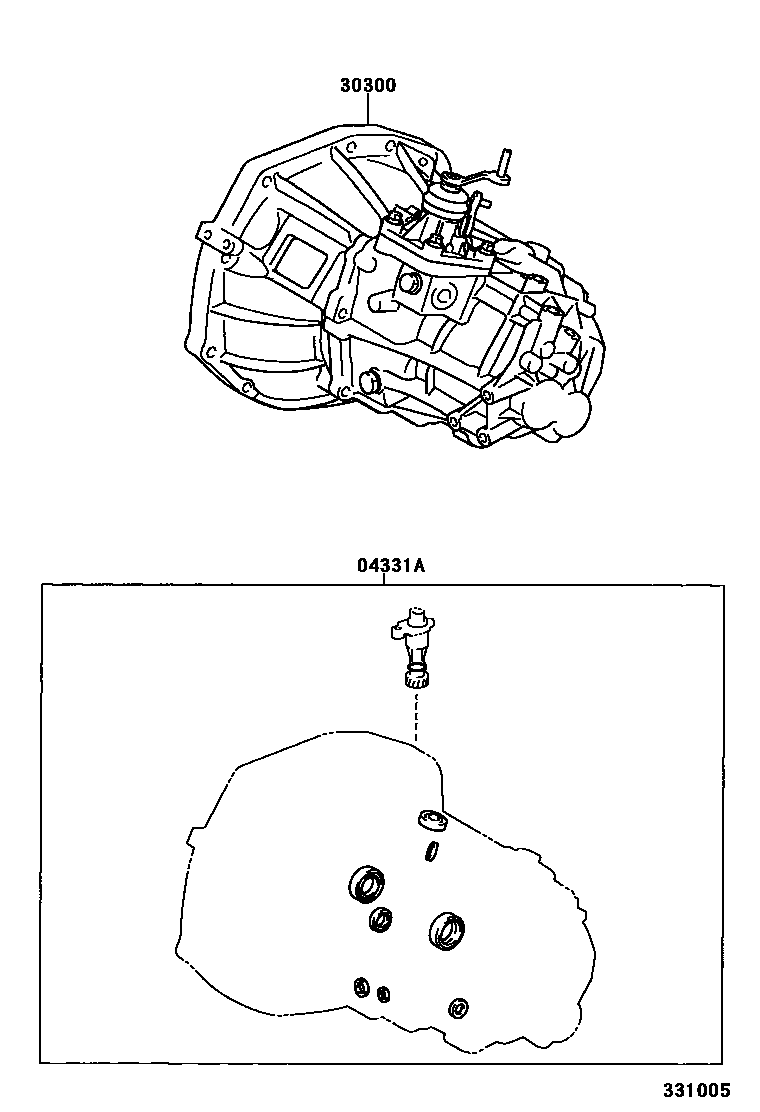

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-02060i200410-200501

main04331-17050i200212-200407

main04331-52010i200112-200212

main04331-52020i200112-200212

main04331-52030i200112-200212

main04331-52040i200212-200407

main04331-52050i200112-200212

main04331-52120i200407-200501

main04331-52180i200407-200410

main04331-52181i200410-200501

main04331-52270i200407-200410

main04331-52310i200411-200501

30300TRANSAXLE ASSY, MANUAL

main30300-52020i199909-200109

main30300-52021i200112-200212

main30300-52050i200112-200206

main30300-52051i200206-200212

main30300-52170i199909-200109

main30300-52171i200212-200501

main30300-52200i200010-200109

main30300-52201i200212-200501

main30300-52220i200112-200206

main30300-52221i200206-200212

main30300-52340i200212-200501

2 parts on this diagram · 2 diagrams in section
