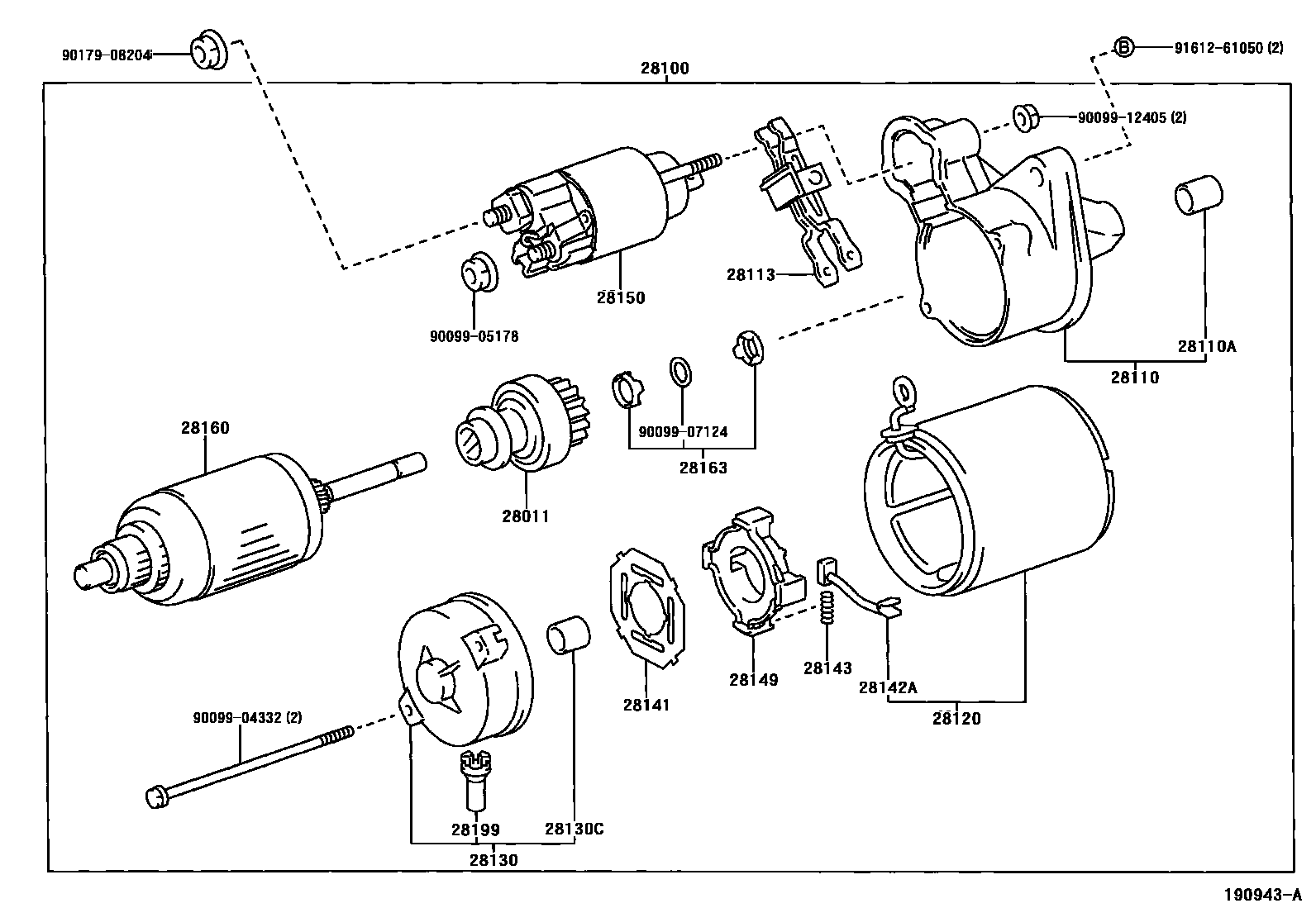

STARTER

0001 112V 0.7KW 0002 112V 0.8KW, 1.0KW 0003 112V 0.7KW 0004 112V 0.8KW,1.0KW 0005 112V 1.0KW ��������� ����-�� *

28011CLUTCH SUB-ASSY, STARTER

main28011-23020i1SZFE..SCP10199901-200212

12V 0.7KW

main28011-23020i1SZFE..SCP10..4HC200212

12V 1.0KW

main28011-23030i1SZFE..SCP10..4FC,5F199901-200212

12V 1.0KW

main28011-23030i1SZFE..SCP10..4FC,5F200212

12V 0.8KW,1.0KW

main28011-70020i1NZFE,2NZFE..NCP1#199908-200212

12V 0.8KW,1.0KW

28100STARTER ASSY

main28100-21020i1NZFE,2NZFE..NCP1#199908-200212

sub28100-21021

main28100-21030i1NZFE,2NZFE..NCP1#199908-200212

sub28100-21031

main28100-23020i1SZFE..SCP10199901-200212

sub28100-23030

main28100-23030i1SZFE,2SZFE..SCP1#..4HC,CVFC200212

sub28100-23031

main28100-23030i1SZFE..SCP10199901-200212

sub28100-23031

main28100-23040i1SZFE..SCP10..5F..B200105-200212

main28100-23050i2SZFE..SCP13..U200212

main28100-23060i2SZFE..SCP13200212

sub28100-23061

28110HOUSING ASSY, STARTER DRIVE

main28110-21020i1NZFE,2NZFE..NCP1#199908-200112

12V 0.8KW,1.0KW

main28110-23020i1SZFE..SCP10199901-200112

12V 0.7KW

main28110-23030i1SZFE..SCP10199901-200112

12V 1.0KW

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i1NZFE,2NZFE,1SZFE..NCP1#,SCP10199901-200112

28113LEVER, STARTER PINION DRIVE

main28113-10020i1SZFE..SCP10199901-200112

12V 0.7KW

main28113-16070i1SZFE..SCP10199901-200112

12V 1.0KW

main28113-70020i1NZFE,2NZFE..NCP1#199908-200112

12V 0.8KW,1.0KW

28120YOKE ASSY, STARTER

main28120-10020i1SZFE..SCP10199901-200212

12V 0.7KW

main28120-70020i2SZFE..SCP13199908-200212

12V 0.8KW

main28120-70050i2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1#199901-200212

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13080i1NZFE,2NZFE..NCP1#199908-200112

12V 0.8KW,1.0KW

main28130-16070i1SZFE..SCP10199901-200112

12V 1.0KW

main28130-23020i1SZFE..SCP10199901-200112

12V 0.7KW

28130CBEARING, STARTER FLANGE

main90099-10157i1SZFE..SCP10199901-200112

12V 0.7KW

main90099-10183i1NZFE,2NZFE..NCP1#199908-200112

12V 0.8KW,1.0KW

main90099-10183i1SZFE..SCP10199901-200112

12V 1.0KW

28141INSULATOR, BRUSH HOLDER

main28141-10020i1SZFE..SCP10199901-200112

28142ASTARTER KIT

main28142-10020i1SZFE..SCP10199901-200112

12V 0.7KW

main28142-70020i1NZFE,2NZFE..NCP1#199908-200112

12V 0.8KW,1.0KW

main28142-70020i1SZFE..SCP10199901-200112

12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-10020i1SZFE..SCP10199901-200112

12V 0.7KW

main28143-70020i1SZFE..SCP10199901-200112

12V 1.0KW

main28143-70020i1NZFE,2NZFE..NCP1#199908-200112

12V 0.8KW,1.0KW

28149PLATE, STARTER

main28149-10020i1SZFE..SCP10199901-200112

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE,2NZFE,1SZFE..NCP1#,SCP10199901-200212

28160ARMATURE ASSY, STARTER

main28160-10020i1SZFE..SCP10199901-200212

12V 0.7KW

main28160-70021i2SZFE..SCP13199908-200212

12V 0.8KW

main28160-70050i2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1#199901-200212

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-10021i1SZFE..SCP10199901-200112

12V 0.7KW

main28163-70020i1SZFE..SCP10199901-200112

12V 1.0KW

main28163-70020i1NZFE,2NZFE..NCP1#199908-200112

12V 0.8KW,1.0KW

28199COVER, STARTER

main28199-46080i1NZFE,2NZFE,1SZFE..NCP1#,SCP10199901-200112

9009904332

main90099-04332

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9017908204

main90179-08204

9161261050

main91612-61050

22 parts on this diagram · 5 diagrams in section
