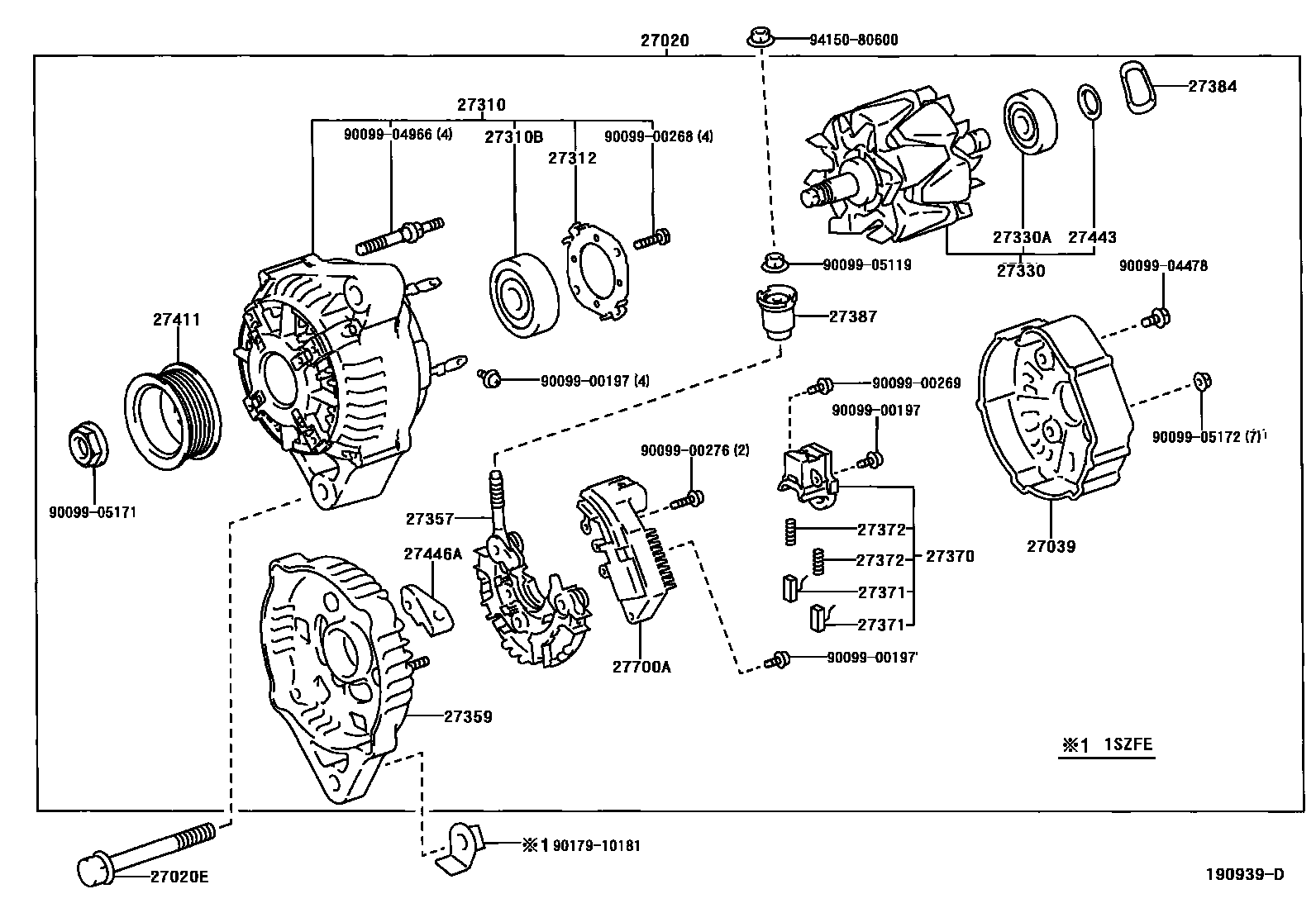

27020ALTERNATOR ASSY
main27060-21040i2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U)199908-200305 main27060-21041i2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U)200305 27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10219i1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS199901-200112 12V 80A,90A
main90099-10220i2NZFE,1SZFE..NCP10,15,SCP10..B,CLA,F,U199901-200112 12V 70A
27312PLATE, RETAINER
main27312-42010i1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS199901-200112 12V 80A,90A
main27312-72100i2NZFE,1SZFE..NCP10,15,SCP10..B,CLA,F,U199901-200112 12V 70A
27330ROTOR ASSY, ALTERNATOR
main27330-16390i1SZFE..SCP10..5F;1NZFE,2NZFE..NCP10,13200212 27330ABEARING(FOR ALTERNATOR ROTOR)
main90099-10140i1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS199901-200112 12V 80A,90A
main90099-10216i2NZFE,1SZFE..NCP10,15,SCP10..B,CLA,F,U199901-200112 12V 70A
27357HOLDER, ALTERNATOR, W/RECTIFIER
main27357-21060i2NZFE..NCP15..F;1SZFE..SCP10..5F..(B,F);2NZFE..NCP15..5D..4FC..(CLA,U)200204-200212 12V 70A
main27357-22050i1SZFE..SCP10..5F..(B,F);1NZFE,2NZFE..NCP10,13..RS200204-200212 12V 80A
main27357-22050i1SZFE..SCP10..ATM..F;1NZFE,2NZFE..NCP1#..F,RS;2NZFE..NCP15..5D..(CLA,U)200212 main27357-23040i1SZFE..SCP10..5F;1NZFE,2NZFE..NCP10,13..RS199901-200204 12V 80A
main27357-23050i1SZFE..SCP10..4FC;1SZFE..SCP10..5F..B199901-200208 12V 90A
main27357-67100i1SZFE..SCP10..5F;2NZFE..NCP10,15..CLA,F,U199901-200204 12V 70A
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-35060i2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U)199908-200212 12V 70A
main27370-75060i2NZFE..NCP15..F;1SZFE..SCP10..4HC;2NZFE..NCP15..5D..(CLA,U)200212 12V 80A
27371BRUSH, ALTERNATOR
main27371-70300i2NZFE,1SZFE..NCP10,15,SCP10..B,CLA,F,U199901-200112 27372SPRING, ALTERNATOR BRUSH
main27372-63020i2NZFE,1SZFE..NCP10,15,SCP10..B,CLA,F,U199901-200012 main27372-87501i2NZFE,1SZFE..NCP10,15,SCP10..B,CLA,F,U200012-200112 27384WASHER
main27384-16380i2NZFE,1SZFE..NCP10,15,SCP10..B,CLA,F,U199901-200112 12V 70A
main27384-50030i1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS199901-200112 12V 80A,90A
27387INSULATOR, TERMINAL
main27387-42021i1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS199901-200112 12V 80A,90A
main27387-70171i2NZFE,1SZFE..NCP10,15,SCP10..B,CLA,F,U199901-200112 12V 70A
27411PULLEY, ALTERNATOR
main27411-65010i2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U)199908-200305 12V 70A
main27411-70140i2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U)200305 12V 70A
main27411-70200i1SZFE,2SZFE..SCP1#..4HC,CVFC199901-200212 12V 70A
27443COVER, ALTERNATOR BEARING
main27443-63020i1NZFE,2NZFE,1SZFE..NCP1#,SCP10199901-200112 27700AREGULATOR ASSY, GENERATOR
