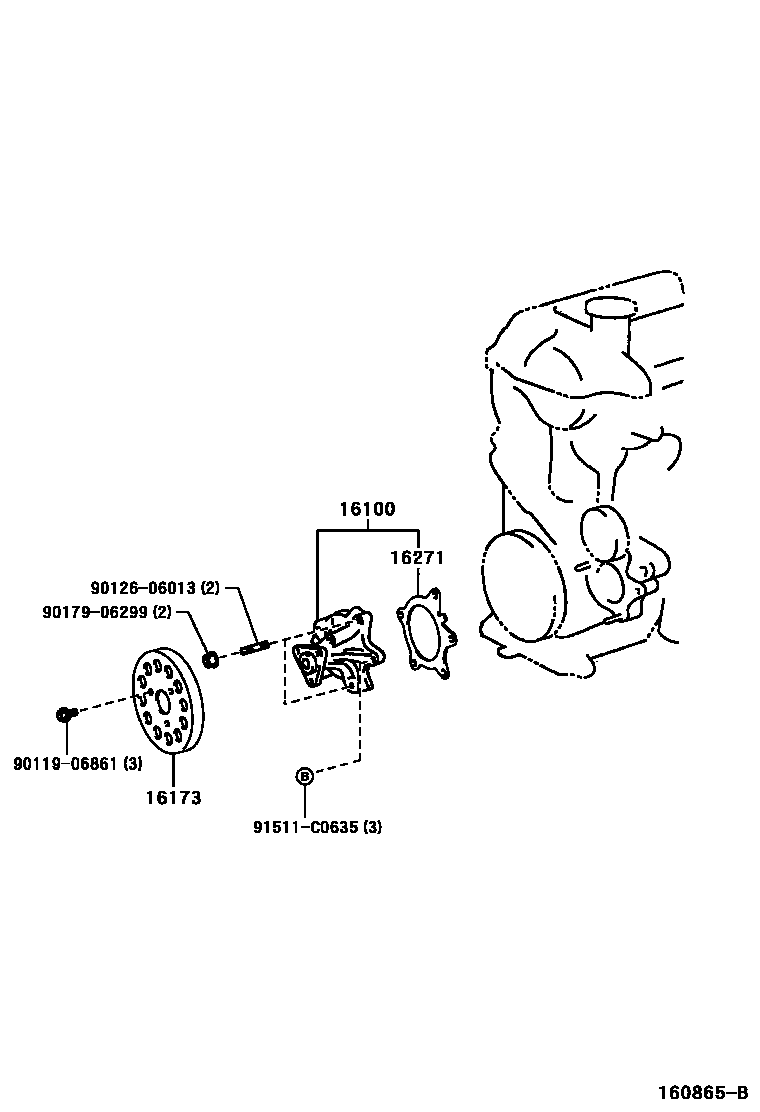

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-29115i1SZFE,2SZFE..SCP1#200212-200306

main16100-29116i1SZFE,2SZFE..SCP1#200306

main16100-29155i1NZFE,2NZFE..NCP1#200112-200212

16173PULLEY, WATER PUMP

main16173-21020i1NZFE,2NZFE..NCP1#200112-200212

main16173-23020i1SZFE..SCP10200112-200212

16271GASKET, WATER PUMP

main16271-21020i1NZFE,2NZFE..NCP1#199908-200112

main16271-23020i1SZFE..SCP10199901-200112

9011906861

main90119-06861

9012606013

main90126-06013

9017906299

main90179-06299

91511C0635

main91511-C0635

7 parts on this diagram · 2 diagrams in section
