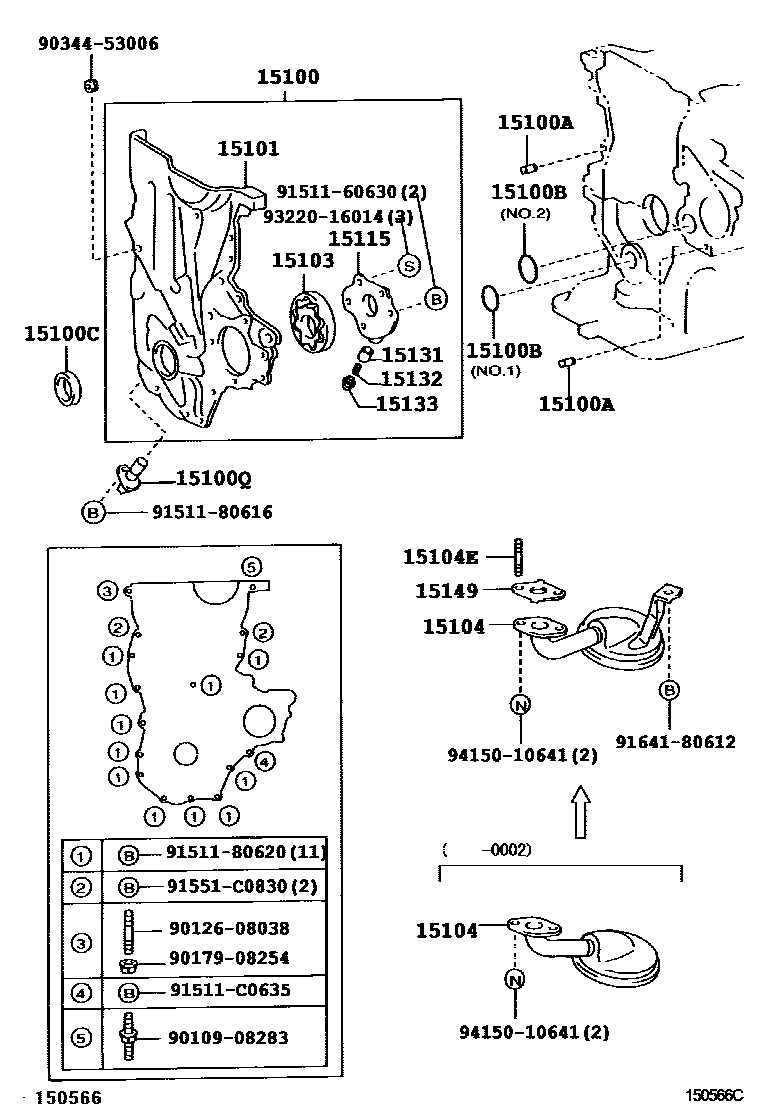

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-21030i2NZFE..NCP10,15199908-200212

sub15100-21032

main15100-21040i1NZFE..NCP13200010-200212

sub15100-21042

main15100-23020i1SZFE..SCP10199901-200501

main15100-23030i2SZFE..SCP13200212-200501

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE,2NZFE..NCP1#199908-200212

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFE,2NZFE..NCP1#199908-200212

sub12151-21010

main90301-42006i1NZFE,2NZFE..NCP1#199908-200212

sub11497-21010

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE,2NZFE..NCP1#199908-200212

sub90311-25032

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE,2NZFE..NCP1#199908-200212

sub90919-05081

15101BODY SUB-ASSY, OIL PUMP

main15111-21030i2NZFE..NCP10,15199908-200112

sub15111-21032

main15111-21040i1NZFE..NCP13200010-200112

sub15111-21042

15103GEAR SET, OIL PUMP

main15103-21020i1NZFE,2NZFE..NCP1#199908-200112

15104STRAINER SUB-ASSY, OIL

main15104-21020i2NZFE..NCP1#199908-200002

main15104-21021i1NZFE,2NZFE..NCP1#200002-200212

sub15104-21022

main15104-23020i1SZFE..SCP10199901-200212

main15104-23060i2SZFE..SCP13200212

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZFE,2NZFE..NCP1#199908-200212

main92122-60614i1SZFE..SCP10199901-200003

main92122-B0614i1SZFE..SCP10200003-200212

15115COVER, OIL PUMP

main15115-21030i1NZFE,2NZFE..NCP1#199908-200112

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE,2NZFE..NCP1#199908-200212

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE,2NZFE..NCP1#199908-200212

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21020i1NZFE,2NZFE..NCP1#199908-200404

main15133-21030i1NZFE,2NZFE..NCP1#200405

15149GASKET, OIL STRAINER FLANGE

main16258-21010i1NZFE,2NZFE..NCP1#199908-200302

sub16258-21030

main16258-21030i1NZFE,2NZFE..NCP1#200302

9010908283

main90109-08283

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151160630

main91511-60630

9151180616

main91511-80616

9151180620

main91511-80620

91511C0635

main91511-C0635

91551C0830

main91551-C0830

9164180612

main91641-80612

9322016014

main93220-16014

9415010641

main94150-10641

26 parts on this diagram · 3 diagrams in section
