Toyota 112110 — CAMSHAFT & VALVE

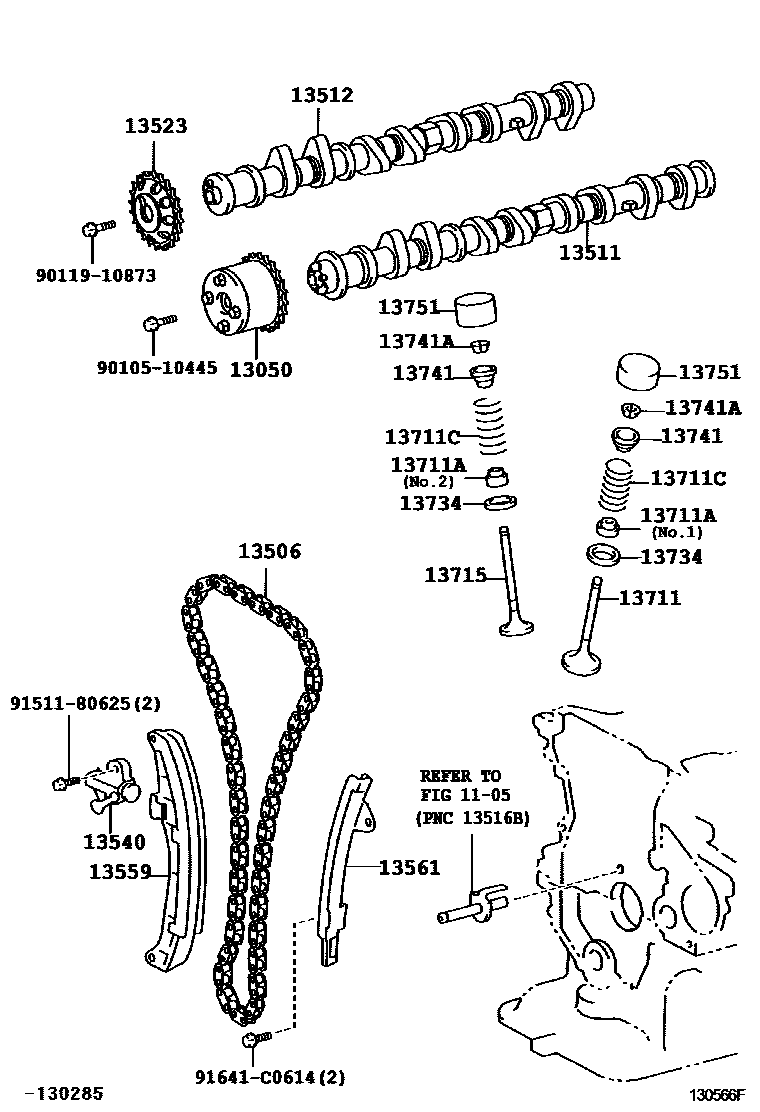

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

13050GEAR ASSY, CAMSHAFT TIMING

13506CHAIN SUB-ASSY

13511CAMSHAFT

13512CAMSHAFT, NO.2

13523GEAR OR SPROCKET, CAMSHAFT TIMING

13540TENSIONER ASSY, CHAIN, NO.1

13559SLIPPER, CHAIN TENSIONER

13561DAMPER, CHAIN VIBRATION, NO.1

13711VALVE, INTAKE

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

13711CSPRING, COMPRESSION(FOR OUTER)

13715VALVE, EXHAUST

13734SEAT, VALVE SPRING

13741RETAINER, VALVE SPRING

13741ALOCK, VALVE SPRING RETAINER

13751LIFTER, VALVE

9010510445

9011910873

9151180625

91641C0614

21 parts on this diagram · 3 diagrams in section

CAMSHAFT & VALVE for Toyota 112110

This section contains 38 genuine Toyota parts for the CAMSHAFT & VALVE system of the Toyota 112110. Key components include: CYLINDER BLOCK, GEAR ASSY, CAMSHAFT TIMING, CHAIN SUB-ASSY, CAMSHAFT, CAMSHAFT, NO.2.
