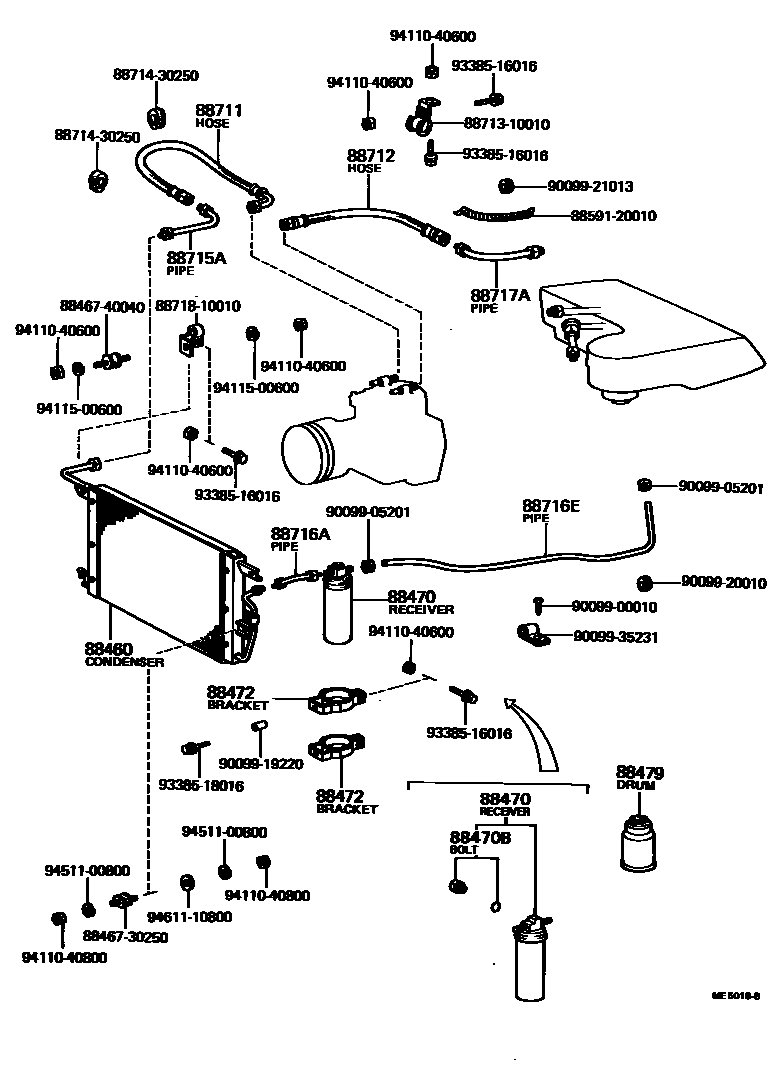

Toyota PUBLICA — HEATING & AIR CONDITIONING - COOLER PIPING
88470BBOLT, FUSE
88715APIPE, COOLER REFRIGERANT DISCHARGE, A
88716APIPE, COOLER REFRIGERANT LIQUID, A
88716EPIPE, COOLER REFRIGERANT LIQUID, E
88717APIPE, COOLER REFRIGERANT SUCTION, A
8846730250CUSHION, COOLER CONDENSER, NO.1
8846740040CUSHION, COOLER CONDENSER, NO.1
8859120010GUIDE, COOLER BOX AIR
8871310010HOSE, COOLER REFRIGERANT SUCTION, NO.2
8871430250HOSE, COOLER REFRIGERANT LIQUID, NO.1
8871810010PIPE, COOLER REFRIGERANT SUCTION, NO.2
9009900010
9009905201
9009919220
9009920010
9009921013
9009935231
9338516016
9338518016
9411040600
9411040800
9411500600
9451100800
9461110800
30 parts on this diagram · 4 diagrams in section
HEATING & AIR CONDITIONING - COOLER PIPING for Toyota PUBLICA
This section contains 70 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota PUBLICA. Key components include: RADIATOR & WATER OUTLET, CONDENSER ASSY, COOLER, RECEIVER & DRYER ASSY, COOLER, BOLT, FUSE, BRACKET, RECEIVER TANK, NO.1.
